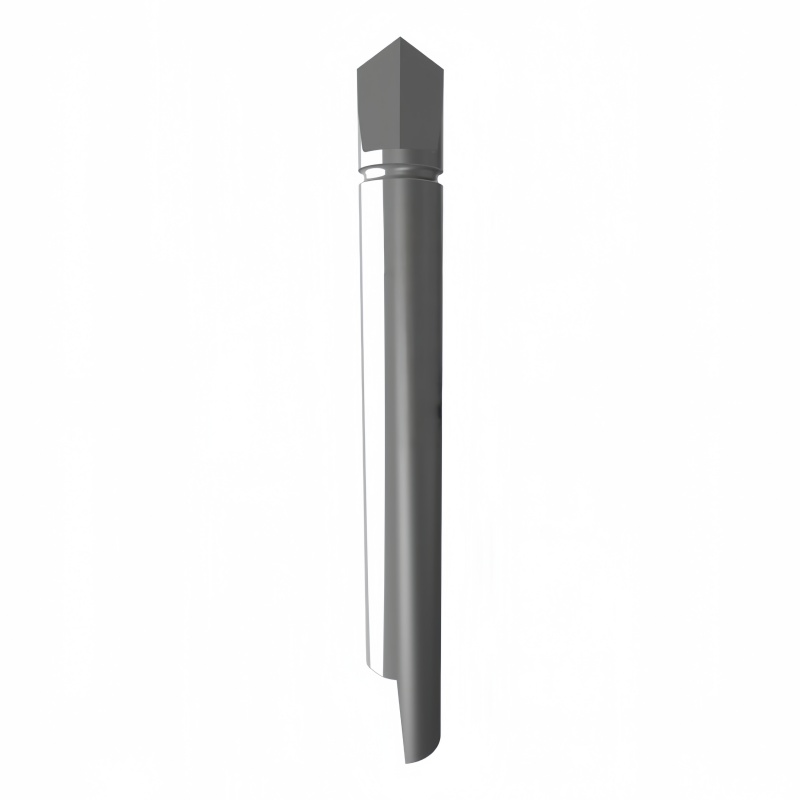

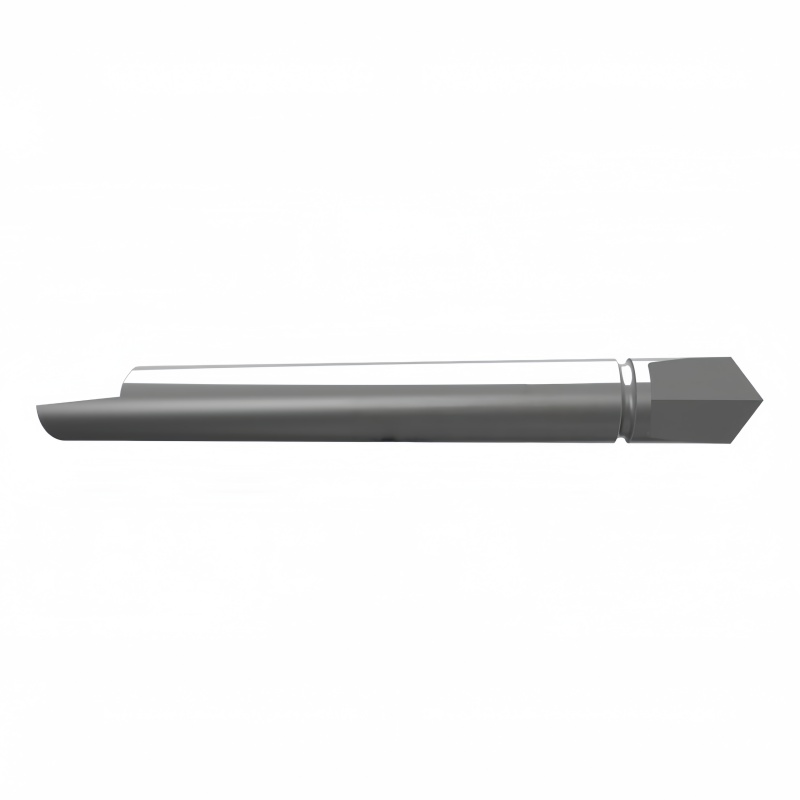

ARISTO 7750 Tungsten carbide Double Edge Drag and Kiss-Cut Knife Blade

Fine grain carbide ARISTO 7750 replacement double-edge drag/kiss-cut knife blade. 3mm shank, 1mm max cutting depth, 35° angle. For reflector and self-adhesive foils.

Request A Quote

Description
Related Products

ARISTO Cutter Knife Blade 7750,000007750,0000 07750

Specification	Details
Part Number	7750
Compatibility	Aristo
Knife Type	Drag Blade, Kiss-cut, Tangential / Double Edge, Pointed
Product Material	Tungsten Carbide, Fine Grain
Shank Diameter	3.00 mm
Length	26.50 mm
Max. Cutting Depth	1.00 mm
Pre-cut	1.43 x Tm
Post-cut	1.43 x Tm
Cutting Angle	35°
Compatible Materials	Reflector foil, Self-adhesive foil

Product Overview The ARISTO 7750 is a precision, double-edged pointed knife blade designed for drag, kiss-cut, and tangential applications on Aristo cutting systems. Manufactured from fine grain tungsten carbide, it features a 3mm shank diameter and a 35-degree cutting angle, allowing for a maximum cutting depth of 1.00mm. This blade is specifically recommended for processing reflector foils and self-adhesive foils.
