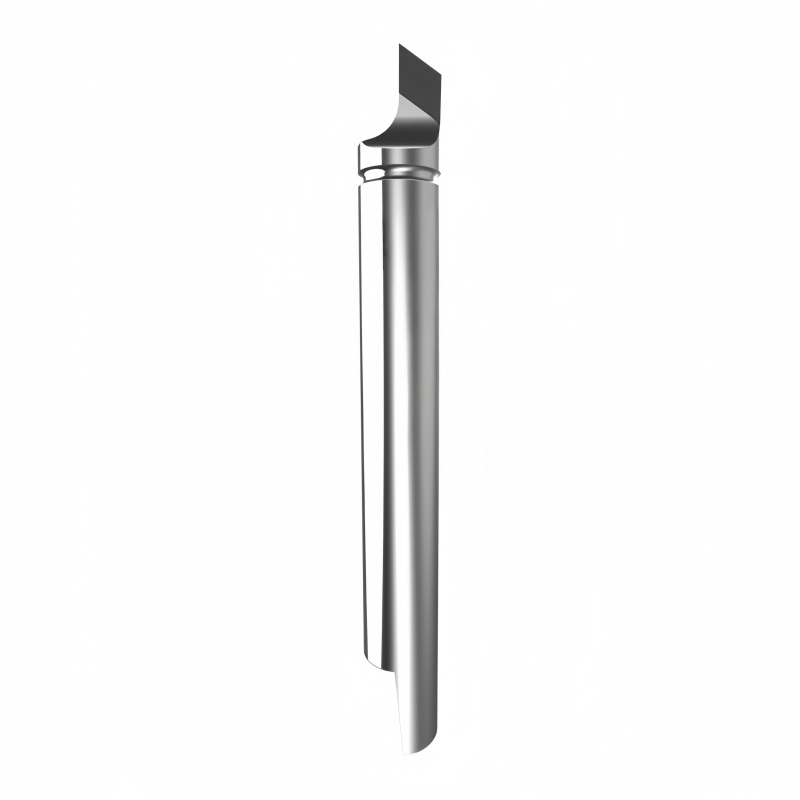

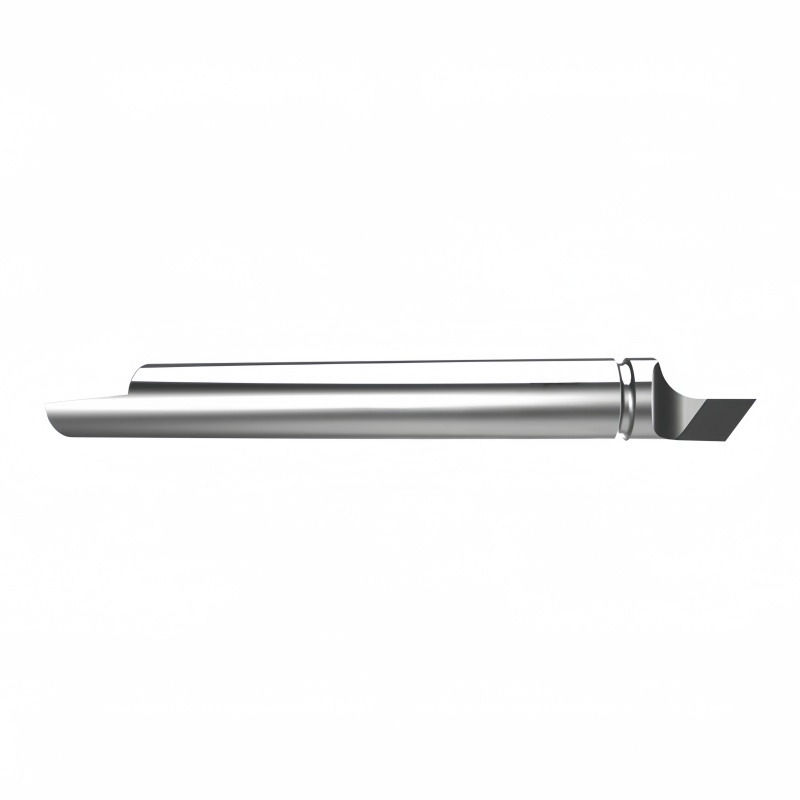

ARISTO 7864 Tungsten carbide Single Edge Drag and Tangential Knife Blade

Fine grain carbide ARISTO 7864 replacement single-edge drag/tangential knife blade. 3mm shank, 1mm max cutting depth, 35° angle. Cuts sandblasting and self-adhesive foils.

Request A Quote

Description
Related Products

ARISTO Cutter Knife Blade 7864,000007864,0000 07864

Specification	Details
Part Number	7864
Compatibility	Aristo
Knife Type	Drag Blade, Tangential / Single Edge, Pointed
Product Material	Tungsten Carbide, Fine Grain
Shank Diameter	3.00 mm
Length	26.50 mm
Max. Cutting Depth	1.00 mm
Pre-cut	1.43 x Tm
Cutting Angle	35°
Compatible Materials	Sandblasting foil, Self-adhesive foil

Product Overview The ARISTO 7864 is a pointed, single-edged knife blade designed for drag and tangential cutting applications on Aristo cutting systems. Manufactured from fine grain tungsten carbide, it utilizes a 3mm shank diameter and a 35-degree cutting angle, providing a maximum cutting depth of 1.00mm. This blade is specifically recommended for the precise cutting of sandblasting foils and self-adhesive foils.

Aristo OEM-Quality tungsten carbide Blades at Wholesale Prices

Thick material processing shouldn't mean paying exorbitant prices for consumables. Our compatible blades are strictly manufactured to meet or exceed original equipment standards, providing exceptional durability and edge retention at a fraction of the cost.
Large inventory available for immediate worldwide shipping.
Contact our technical sales engineers today for volume discounts or material compatibility advice:
📩 Email: [info@hengrui-knives.com ]
👉 Request a Bulk Quote Blades
