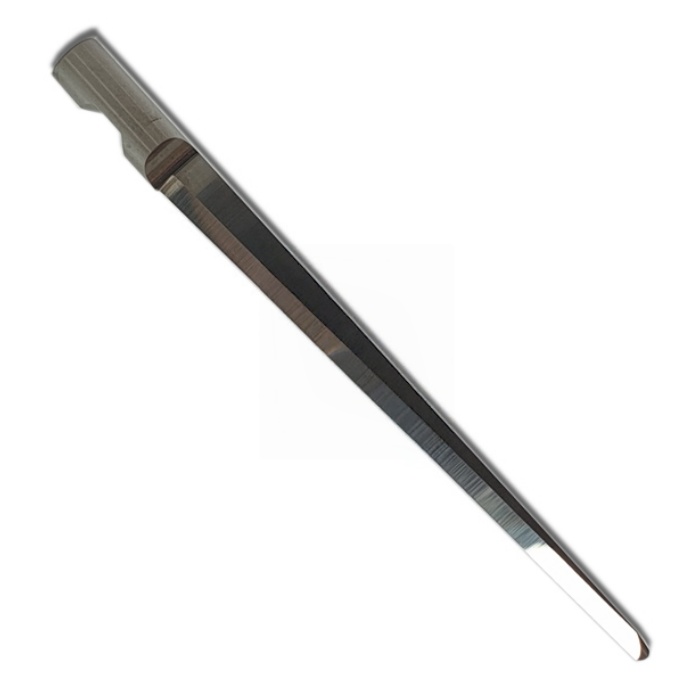

AXYZ B1041L-65 BT-572065 Single Edge Flat Point CNC Oscillating Knife Blades

86.5° cutting angle for sharp and precise penetration into thick and rigid materials

Max cutting depth of 65 mm for deep cuts in materials like foam boards, cardboard, and rubber

Round 6 mm mounting for stable attachment and secure blade operation

Ideal for cutting textiles, foam, polyester fabric, honeycomb, and reflective foils

Oscillating blade design ensures smooth cuts and reduces material drag

Durable construction supports high-speed cutting in demanding environments

Direct replacement for AXYZ B1041L-65 / BT-572065 blades

Request A Quote

Description
Related Products

Product Specification Sheet

Item	Specification
Cutter Brand	AXYZ
Model	B1041L-65 / BT-572065
Knife Type	Oscillating Blade, Weldon
Angle	86.5°
Knife Height	82.00 mm
Max. Cutting Depth	65.00 mm
Knife/Blade Mounting	Round diameter 6 mm
Materials	Aramid fibers, Canvas, Carbon fibers, Cardboard, Corrugated cardboard, Foam board, Folding Carton, Honeycomb, Magnetic foil, Polyester fabric, PVC, Reflective foil, Rubber, Textiles
Replacement	Yes

Product Description

The AXYZ BT-572065 B1041L-65 Single Edge Flat Point CNC Knife Blade is a heavy-duty, high-performance blade designed to handle demanding industrial cutting tasks. With an 86.5° cutting angle and a remarkable cutting depth of up to 65 mm, this blade is optimized for AXYZ CNC machines, allowing precision cutting in a wide range of materials, including foam boards, honeycomb, cardboard, and reflective foils.

Built with durability in mind, the blade is engineered for deep cuts and clean edges, even in thick materials. Its round 6 mm mounting ensures a secure fit and precise motion during cutting operations. Whether cutting rigid foam, rubber, or textiles, the AXYZ B1041L-65 delivers consistent, reliable results for industrial applications.

This blade is a direct replacement for the AXYZ B1041L-65 / BT-572065, providing a cost-effective and long-lasting solution for CNC cutting operations.
