Compatible with AXYZ drag-knife tools (Ø 6 mm round shaft)
71° double-sided cutting geometry for accurate and smooth drag cutting
Designed for fine-detail cutting up to 5 mm depth
Optimized for vinyls, cardboard, reflective foil, foam board, and lightweight plastics
Low-resistance cutting performance for clean and burr-free edges
Stable blade behavior during high-speed drag cutting
Reliable replacement for AXYZ B1051L-5 CNC drag knife blades
| Item | Specification |
|---|---|
| Cutter Brand | AXYZ |
| Model | B1051L-5 |
| Knife Type | Drag blade, Weldon |
| Angle | 71° |
| Knife Height | 36.00 mm |
| Max. Cutting Depth | 5.00 mm |
| Knife/Blade Mounting | Round diameter 6 mm |
| Materials | Canvas, Cardboard, Foam board, Foamed PVC, Folding Carton, Magnetic foil, Plastic, Reflective foil, Vinyls |
| Replacement | Yes |
Product Description

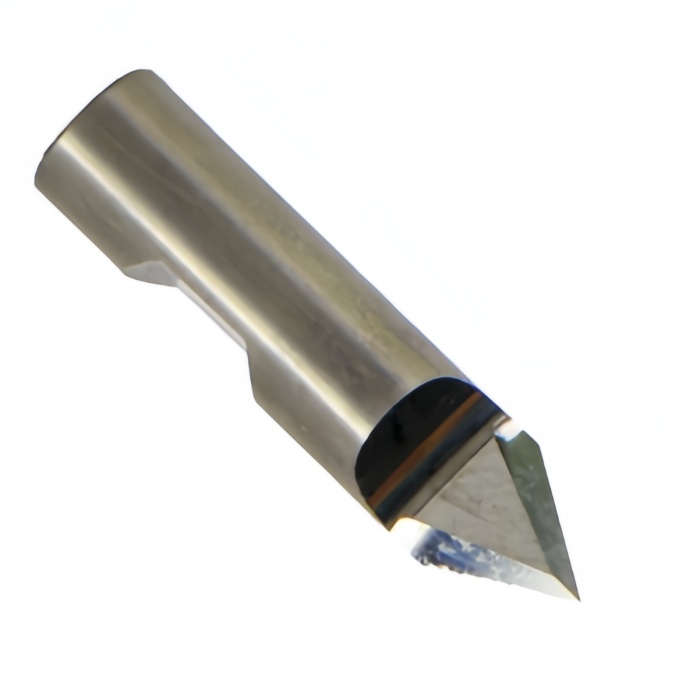

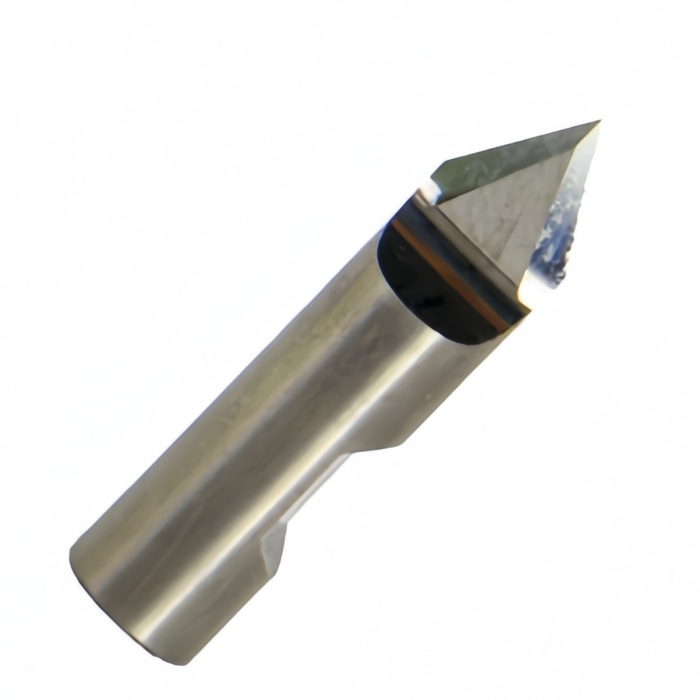

The AXYZ B1051L-5 Drag Knife Blade is a precision-engineered cutting blade designed for AXYZ CNC machines that use a 6 mm round Weldon mount. Featuring a 71° double-sided cutting geometry, this blade delivers excellent control and clean edges when working with light to medium-density materials.
With a maximum cutting depth of 5 mm, the B1051L-5 is ideal for detailed contour cutting, label production, packaging prototypes, signage materials, and vinyl applications. Its versatility makes it suitable for a wide range of substrates including cardboard, foam board, foamed PVC, magnetic foil, reflective film, vinyls, and lightweight plastics.
Manufactured for smooth drag-knife performance, this blade provides low-resistance cutting and consistent sharpness, making it a reliable replacement for AXYZ B1051L-5 CNC drag blades. It is an excellent choice for precision jobs requiring short, accurate cuts and fine detail handling.
-
