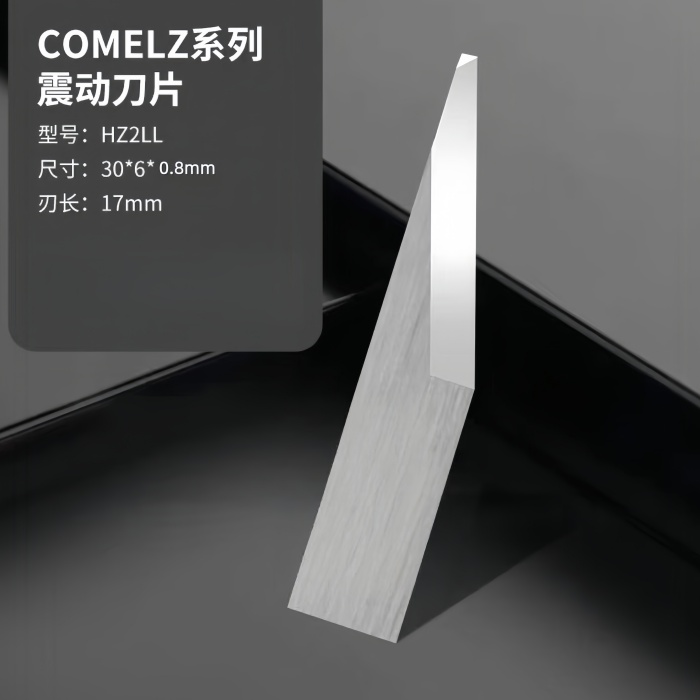

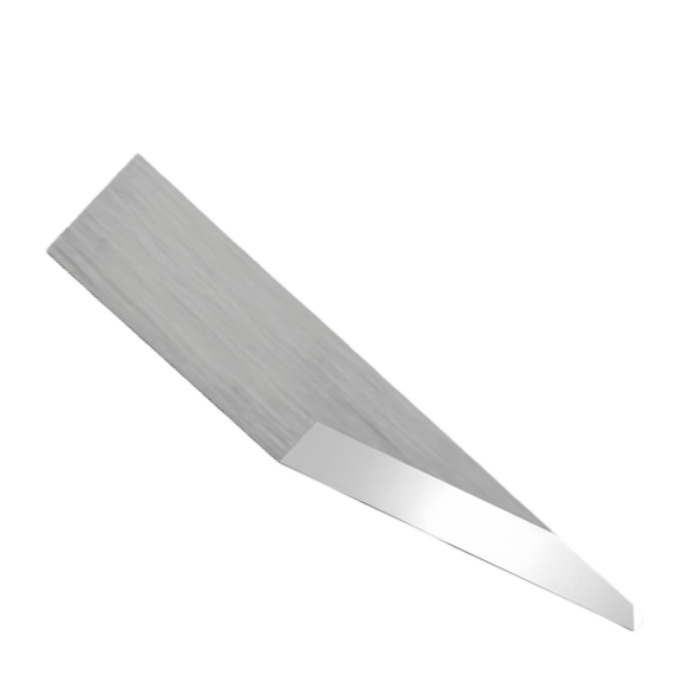

Comelz HZ2L.L Oscillating Knife Blade – Precision Pointed CNC Blade

Compatible with Comelz oscillating cutting systems (0.8 mm flat mount)

16.5° pointed cutting angle for smooth penetration and crisp edges

Supports cutting depths up to 17 mm

30 mm blade height for improved stiffness and cutting stability

Ideal for corrugated cardboard, felt, foam board, folding carton, and rubber

Designed for high-speed oscillation with minimal deflection

Delivers clean, consistent cuts in both flexible and semi-rigid materials

Reliable replacement for the OEM Comelz HZ2L.L blade

Request A Quote

Description
Related Products

Product Specification Sheet

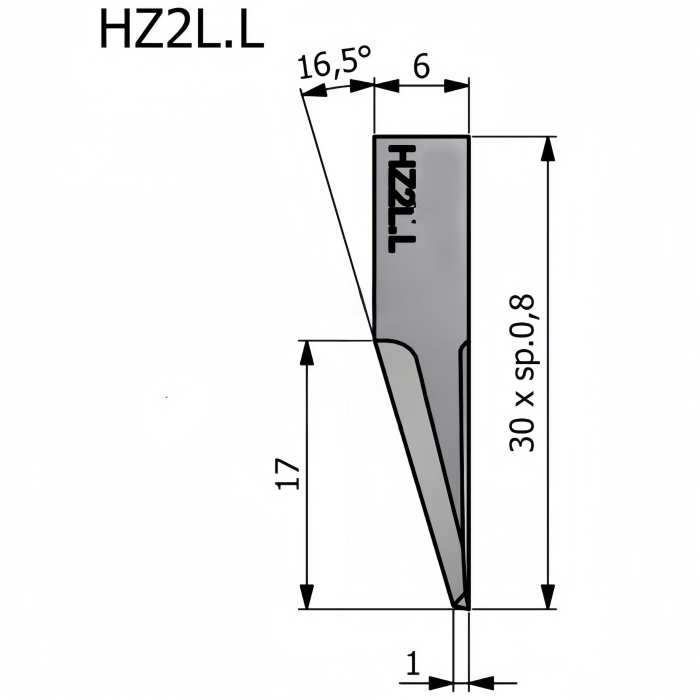

Item	Specification
Cutter Brand	COMELZ
Model	HZ2L.L
Knife Type	Flat, Oscillating blade, Pointed
Angle	16.5°
Knife Height	30 mm
Thickness	0.8 mm
Max. Cutting Depth	17 mm
Knife/Blade Mounting	Flat 0.8 mm
Materials	Corrugated cardboard, Felt, Foam board, Folding carton, Rubber
Replacement	Yes

Product Description

The Comelz HZ2L.L Oscillating Knife Blade is a precision-engineered pointed cutting blade designed for Comelz CNC digital cutting machines. Featuring a 0.8 mm flat mounting interface and a 16.5° tapered cutting angle, this blade delivers smooth, accurate penetration and clean-edge performance across a wide range of flexible and semi-rigid materials.

With a maximum cutting depth of 17 mm and a 30 mm blade height, the HZ2L.L provides excellent stability under high-frequency oscillation, ensuring reduced blade flex and consistent cutting precision. Its pointed geometry enhances detail work, making the blade ideal for foam board, corrugated cardboard, felt, folding carton, and rubber materials.

Designed as a drop-in replacement for the OEM Comelz HZ2L.L blade, it supports demanding applications in packaging, footwear production, gasket making, rubber processing, and composite or textile fabrication.
