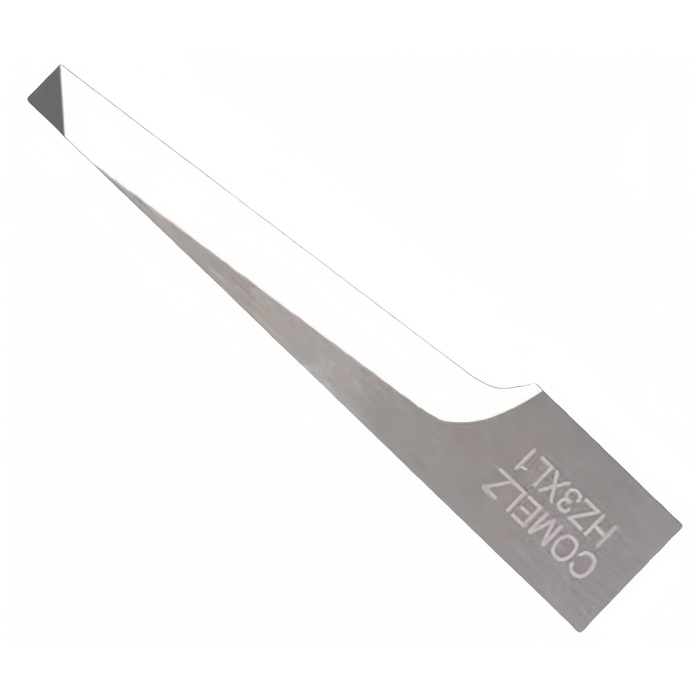

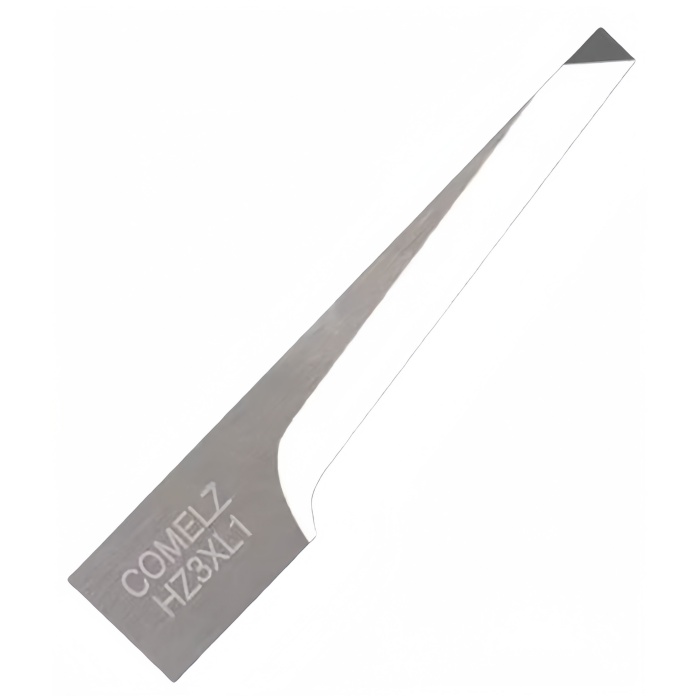

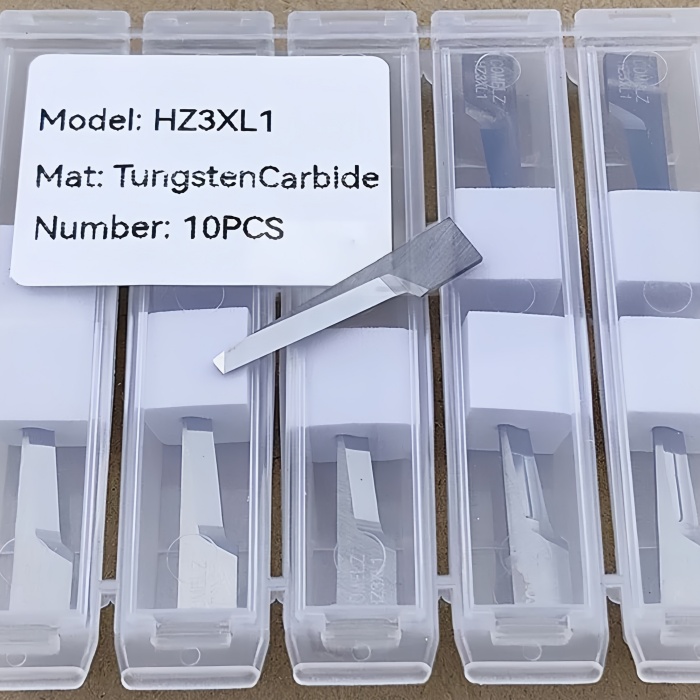

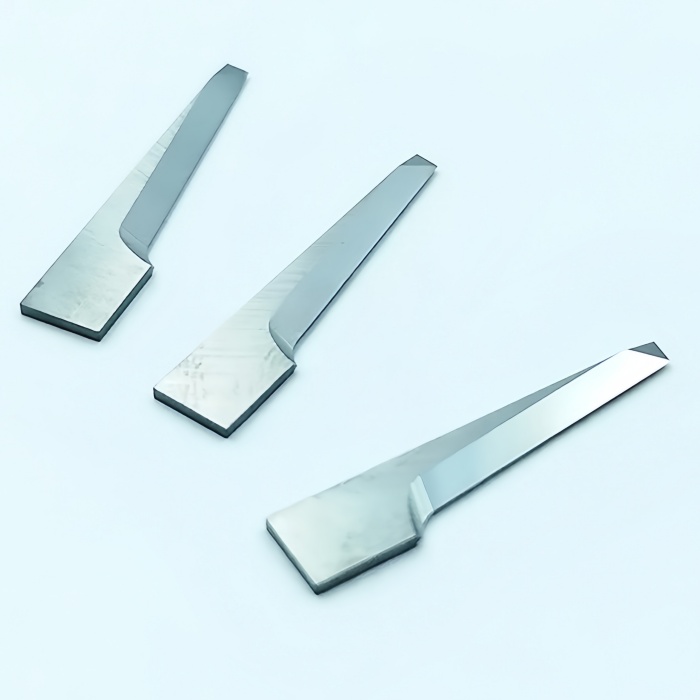

Comelz HZ3X.L1 Oscillating Knife Blade – Tungsten Carbide CNC Blade

Compatible with Comelz oscillating cutting machines (1.0 mm flat mount)

Strong 1.0 mm tungsten carbide blade for enhanced stability and long life

30 mm height and 6 mm width for superior rigidity

Supports clean, accurate cuts up to 21 mm depth

Ideal for carbon fiber, glass fiber, leather, textiles, felt, and rubber

Pointed geometry provides sharp penetration and fine-detail cutting

Designed for high-frequency oscillation with minimal blade flex

Reliable OEM-quality replacement for Comelz HZ3X.L1 blades

Request A Quote

Description
Related Products

Product Specification Sheet

Item	Specification
Cutter Brand	COMELZ
Model	HZ3X.L1
Knife Type	Flat, Oscillating blade, Pointed
Knife Height	30 mm
Thickness	1.0 mm
Knife Width	6 mm
Max. Cutting Depth	21 mm
Knife/Blade Mounting	Flat 1 mm
Materials	Carbon fibers, Corrugated cardboard, Felt, Glass fibers, Leather, Polyester fabric, Rubber, Textiles
Replacement	Yes

Product Description

The Comelz HZ3X.L1 Oscillating Knife Blade is a robust tungsten carbide cutting tool designed for Comelz automated CNC cutting machines. Featuring a 1.0 mm flat mounting base and a 30 mm blade height, this knife is engineered for enhanced stability and superior durability when processing both flexible and composite materials.

With a maximum cutting depth of 21 mm and a pointed blade geometry, the HZ3X.L1 delivers precise penetration and clean cutting performance across a wide range of materials including carbon fibers, glass fibers, rubber sheets, technical textiles, leather, corrugated cardboard, and felt.

The increased 1.0 mm blade thickness and 6 mm blade width provide added rigidity, reduced deformation, and consistent high-frequency oscillation performance. This makes the HZ3X.L1 ideal for demanding industrial applications such as composite manufacturing, footwear and leather production, packaging, insulation materials, and technical textile fabrication.

Designed as a full replacement for the OEM Comelz HZ3X.L1 blade, it ensures long-lasting edge life, improved cutting accuracy, and stable operation in continuous production workflows.
