ATOM 01030911 Oscillating Cutting Knife Blade|Manufacturer of Carbide Knives & Blades

ATOM 01030911 Replacement Oscillating Cutting Knife Blade for ATOM Digital Cutting Systems

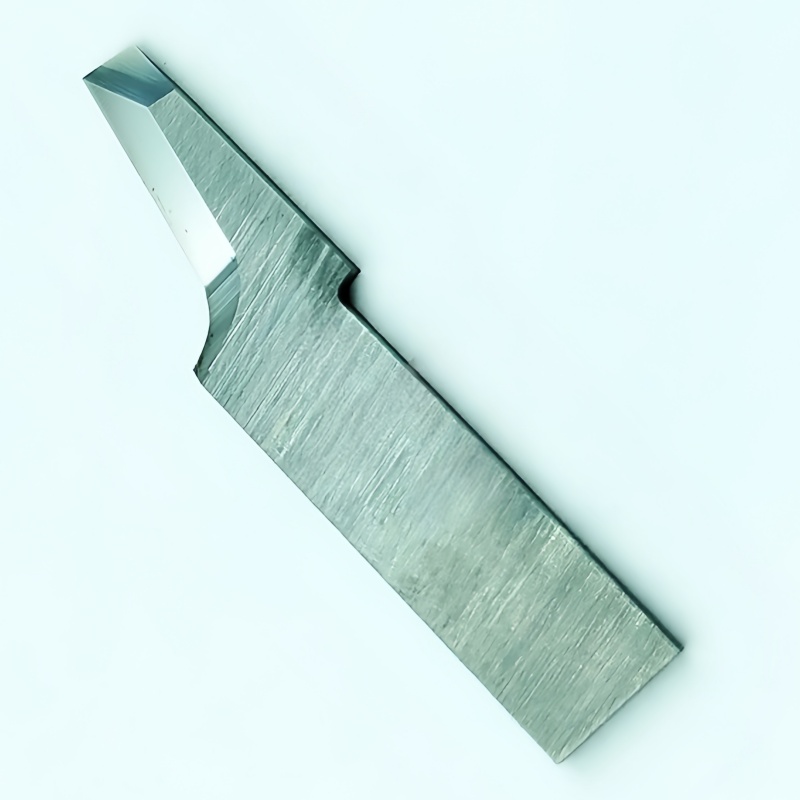

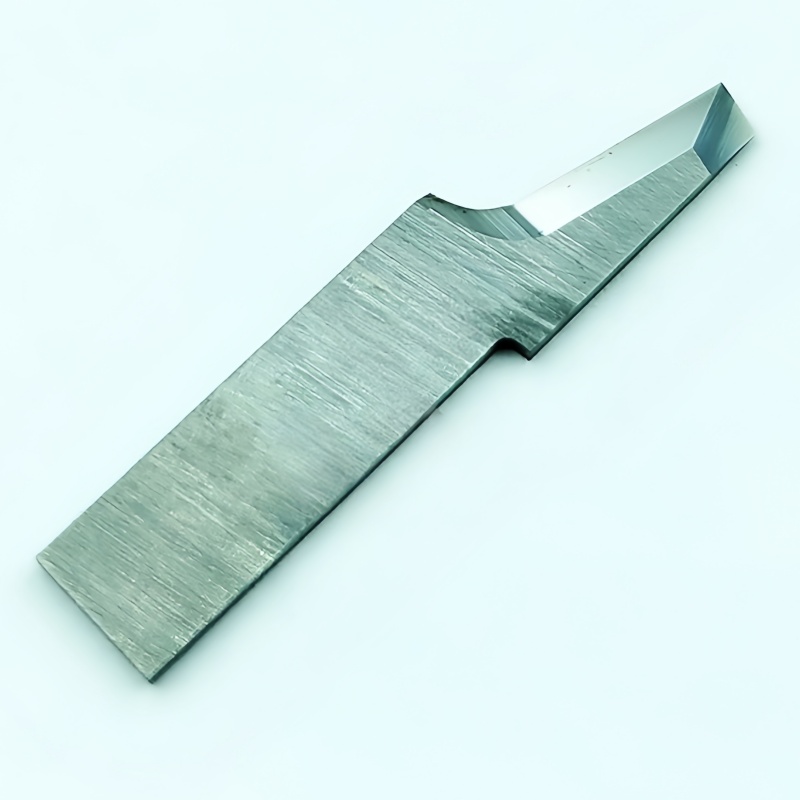

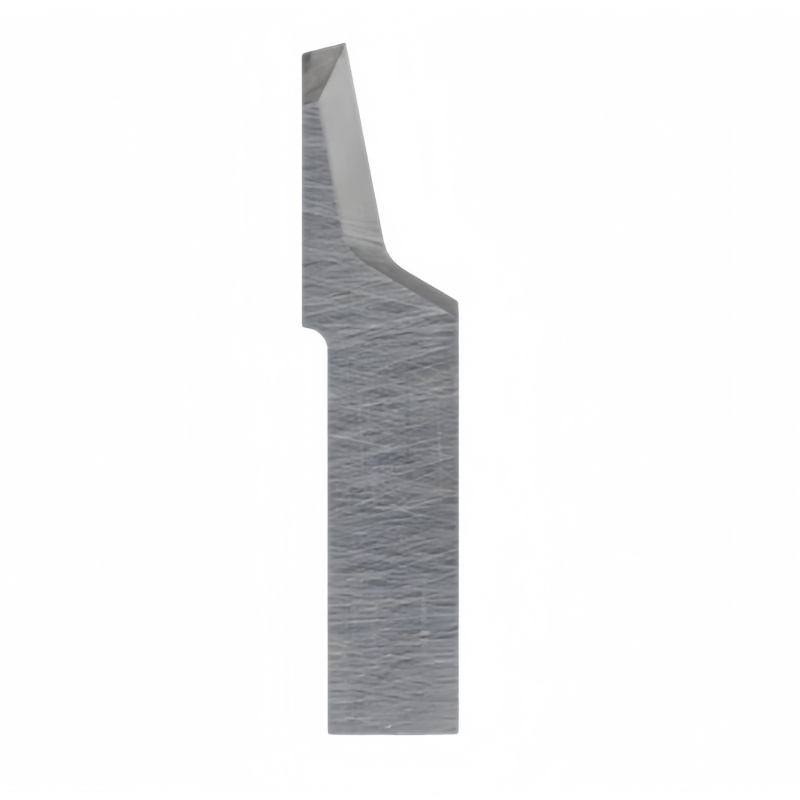

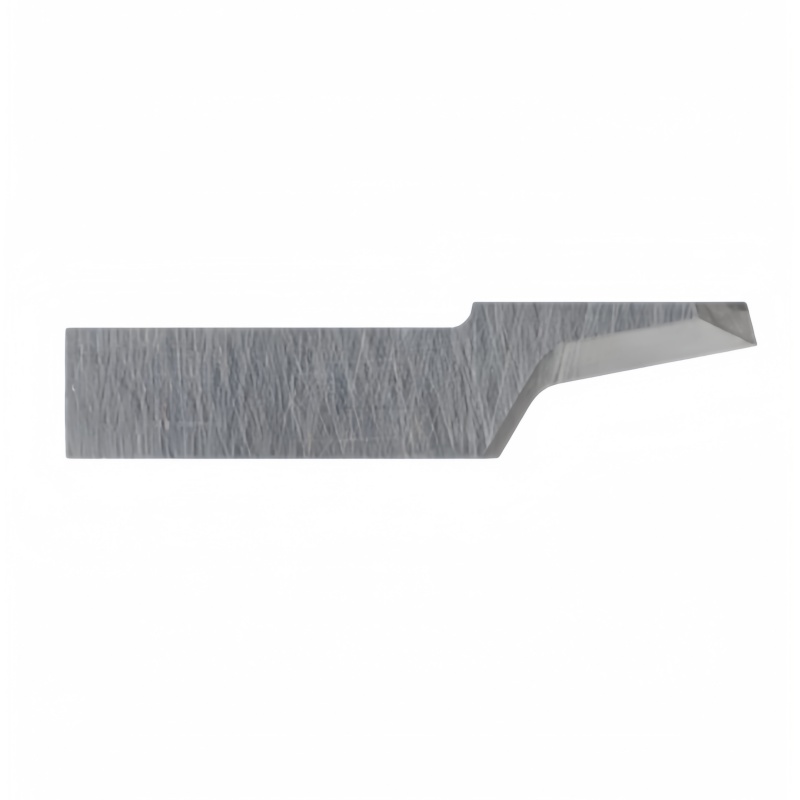

Flat oscillating knife blade for ATOM digital cutting systems
ATOM 01030911 / 30911 replacement oscillating blade
28 mm knife height for controlled oscillating cutting
Supports up to 7.5 mm maximum cutting depth
Optimized 11°–15° cutting angle for clean cutting results
OEM-compatible replacement blade for ATOM cutting machines

Description
Related Products

Product Specification Sheet

Item	Specification
Cutter Brand	ATOM
Model	01030911 / 30911
Knife Type	Flat, Flat Oscillating Blades, Oscillating Blade
Knife Height	28.00 mm
Knife Width	5.50 mm
Thickness	1.00 mm
Max. Cutting Depth	7.50 mm
Cutting Angle	11° – 15°
Knife / Blade Mounting	Flat 1 mm
Replacement	Yes

Product Description

The ATOM 01030911 Oscillating Knife Blade, also known as ATOM 30911, is a precision replacement oscillating blade developed for ATOM digital cutting systems. This flat oscillating knife blade is designed to deliver stable cutting performance and clean edges across a wide range of flexible and composite materials.

Featuring a 28 mm knife height and a maximum cutting depth of 7.5 mm, the ATOM 30911 oscillating knife blade is suitable for medium-depth cutting applications that require accuracy and material control. The 1.00 mm blade thickness provides rigidity during oscillation, helping maintain consistent cutting quality while reducing blade deflection.

With an optimized 11°–15° cutting angle, this ATOM oscillating blade ensures smooth material penetration and controlled cutting motion. The flat 1 mm mounting allows quick installation and secure compatibility with ATOM oscillating knife tool holders, making it an OEM-compatible replacement blade for automated cutting workflows.
