iEcho Flatbed Cutting E16LC Oscillating Knife Blade|Manufacturer of Carbide Knives & Blades

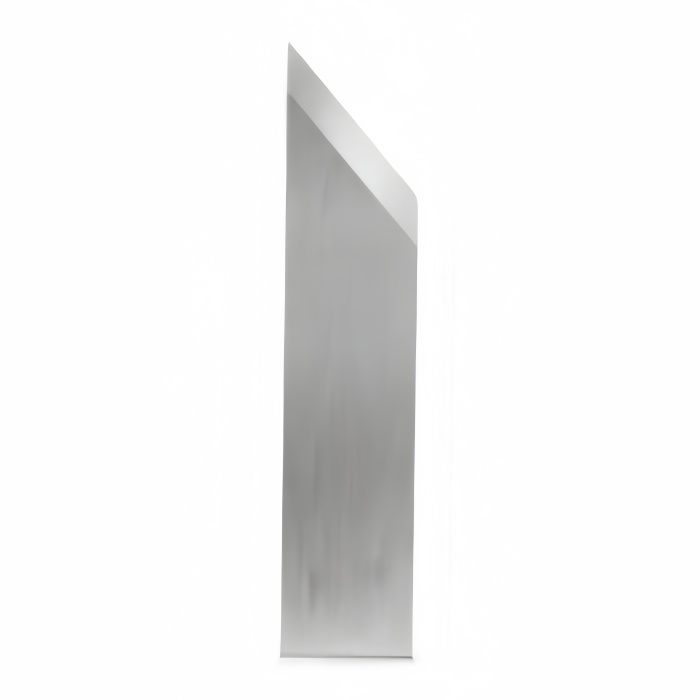

iEcho E16LC Oscillating Knife Blade for iEcho Digital Cutter / Flatbed Cutting Machine

Designed for iEcho flatbed and digital cutting machines
0.63 mm flat mount for secure and stable installation
35° angle provides clean penetration and refined detail cutting
Supports cutting depths up to 9 mm
Tungsten carbide construction for maximum hardness and durability
Optimized for foam board, carton, PVC, paper, textiles, and gasket materials
Suitable for high-frequency oscillating cutting modules
Reliable OEM-compatible replacement for the E16LC blade

Description
Related Products

Product Specification Sheet

Item	Specification
Cutter Brand	iEcho
Model	E16LC
Knife Type	Oscillating, Flat Oscillating Blade, Tungsten Carbide Blade
Angle	35°
Knife Height	30 mm
Thickness	0.63 mm
Max. Cutting Depth	9 mm
Knife/Blade Mounting	Flat 0.63 mm (Standard for E16 Series)
Materials	Foam board, Folding carton, Paper, Polyester fabric, PVC, Gasket materials, Rubber, Self-adhesive vinyl film (typical E16 applications)
Replacement	Yes

Product Description

The iEcho E16LC Oscillating Knife Blade is a precision-engineered cutting blade designed for use with iEcho digital cutters and flatbed CNC cutting machines. Built with a 0.63 mm flat mounting interface and a 35° cutting angle, this blade provides sharp, efficient penetration for clean and accurate cuts.

With a 30 mm blade height and a maximum cutting depth of 9 mm, the E16LC delivers excellent rigidity during high-frequency oscillation, ensuring minimal blade flex and consistent cutting performance. Its thin 0.63 mm profile makes it especially effective for detailed cutting work and fine turning applications.

Manufactured from tungsten carbide, the blade offers superior durability, long-lasting edge sharpness, and exceptional performance on both flexible and semi-rigid materials. The E16LC is ideal for cutting applications involving foam board, carton materials, paper, PVC, gasket materials, textiles, and adhesive films.

As a direct replacement for the OEM iEcho E16LC blade, it ensures stable operation, precise cutting, and extended tool life in demanding production environments.
