iEcho Flatbed Cutting Machine E17LC Oscillating Knife Blade|Manufacturer of Carbide Knives & Blades

iEcho E17LC Oscillating Knife Blade for iEcho Digital Cutter / Flatbed Cutting Machine

Designed for iEcho flatbed and digital oscillating cutting modules

Flat 0.63 mm mounting interface for secure installation

Aggressive 70° angle for deep, efficient cutting performance

Supports extended cutting depth up to 16 mm

Premium tungsten carbide for maximum hardness and edge retention

Ideal for textiles, paper products, foils, gasket materials, and signage films

OEM-compatible replacement for the iEcho E17LC blade

Request A Quote

Description
Related Products

Product Specification Sheet

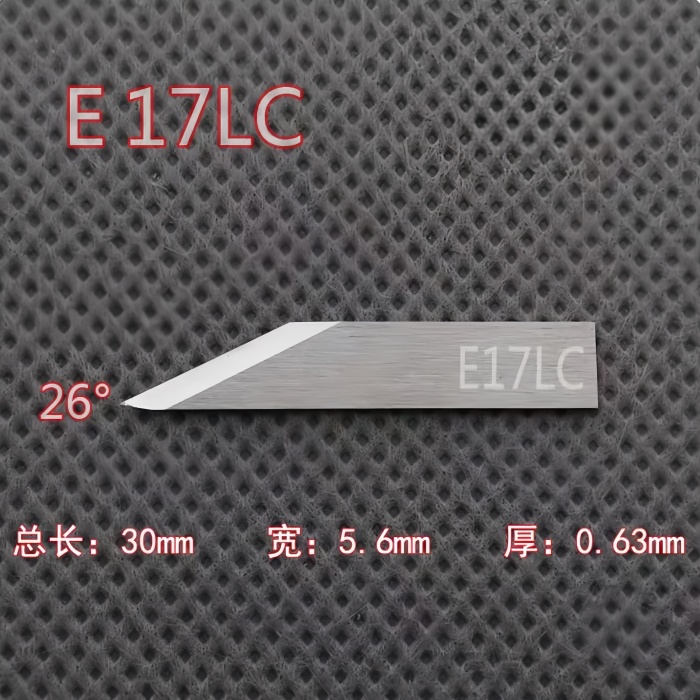

Item	Specification
Cutter Brand	iEcho
Model	E17LC
Knife Type	Oscillating, Flat Oscillating Blade, Tungsten Carbide Blade
Angle	70°
Knife Height	30.00 mm
Knife Width	5.50 mm
Thickness	0.63 mm
Max. Cutting Depth	16.00 mm
Knife/Blade Mounting	Flat 0.63 mm
Materials	Canvas, Folding carton, Gasket materials, Magnetic foil, Paper, Polyester fabric, Reflective vinyl film, Self-adhesive vinyl film
Replacement	Yes

Product Description

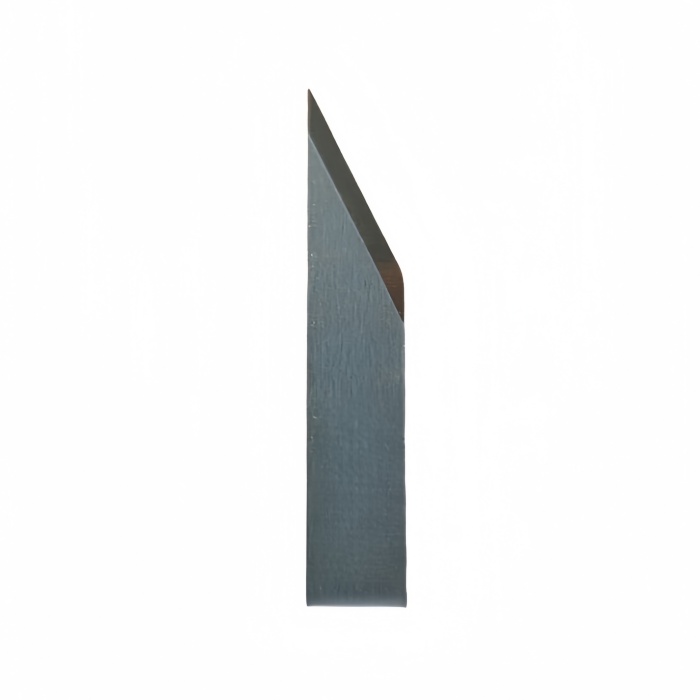

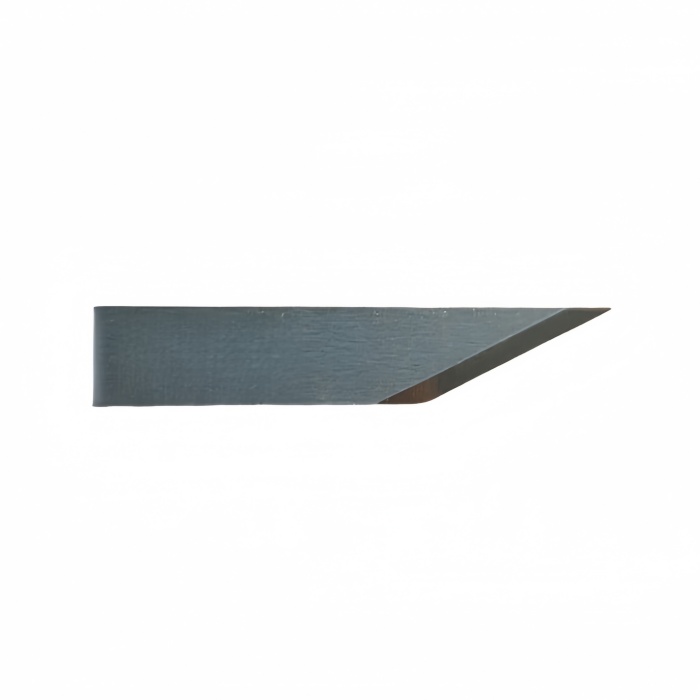

The iEcho E17LC Oscillating Knife Blade is a high-strength, deep-cut tungsten carbide blade engineered for iEcho flatbed cutting machines and oscillating tool modules. With its 0.63 mm flat mounting design and aggressive 70° cutting angle, the E17LC provides exceptional penetration capability and cutting efficiency on medium to hard materials.

Featuring a blade height of 30 mm and an extended maximum cutting depth of 16 mm, this blade is specifically designed for applications requiring deeper cuts without compromising precision. The narrow 5.50 mm width and 0.63 mm thickness ensure clean cuts, minimal vibration, and stable operation during high-frequency oscillation.

Manufactured from premium tungsten carbide, the E17LC offers superior durability, long service life, and excellent resistance to wear. It is ideal for production environments processing materials such as canvas, paper, gasket materials, polyester fabrics, magnetic foils, reflective vinyl film, and adhesive films.

Fully compatible as an OEM-equivalent replacement, the iEcho E17LC provides consistent, accurate, and reliable cutting performance across a wide range of industrial applications.
