Atom 01030730 Flashcut HV1600 Oscillating Knife Blade|Manufacturer of Carbide Knives & Blades

Atom 01030730 Flashcut HV1600 Oscillating Knife Blade For Atom Flashcut Flex Cutting Systems

Oscillating knife blade for Atom Flashcut & Flashcut Flex systems

Atom 01030730 OEM-compatible replacement blade

Cutting angle 25°–0° for smooth and controlled cutting

Approx. 6 mm maximum cutting depth

Suitable for textiles, Texon, soft leather, and suede

Durable tungsten carbide construction for long service life

Request A Quote

Description
Related Products

Product Specification Sheet

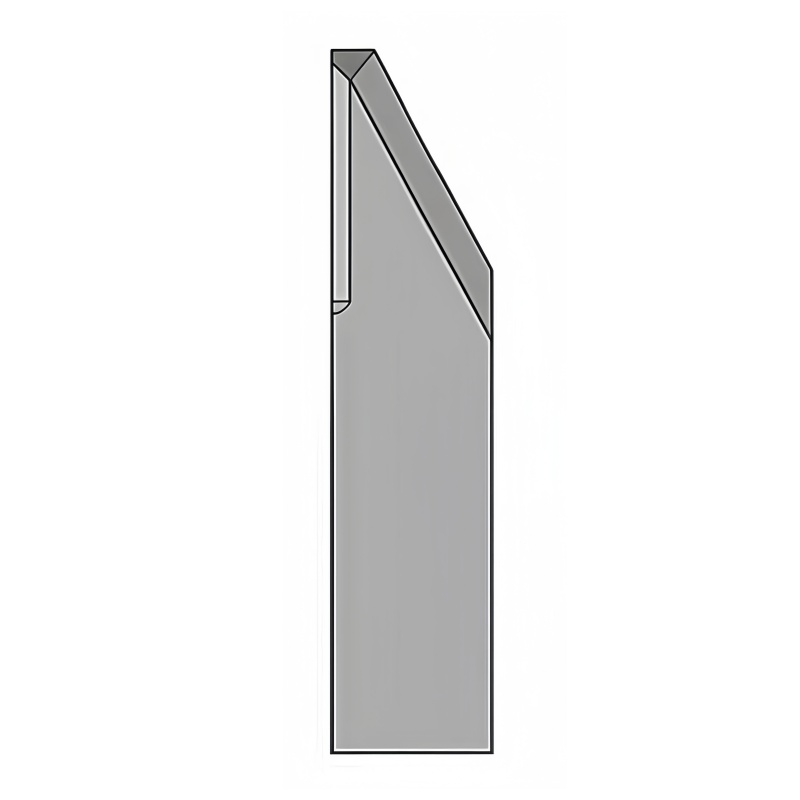

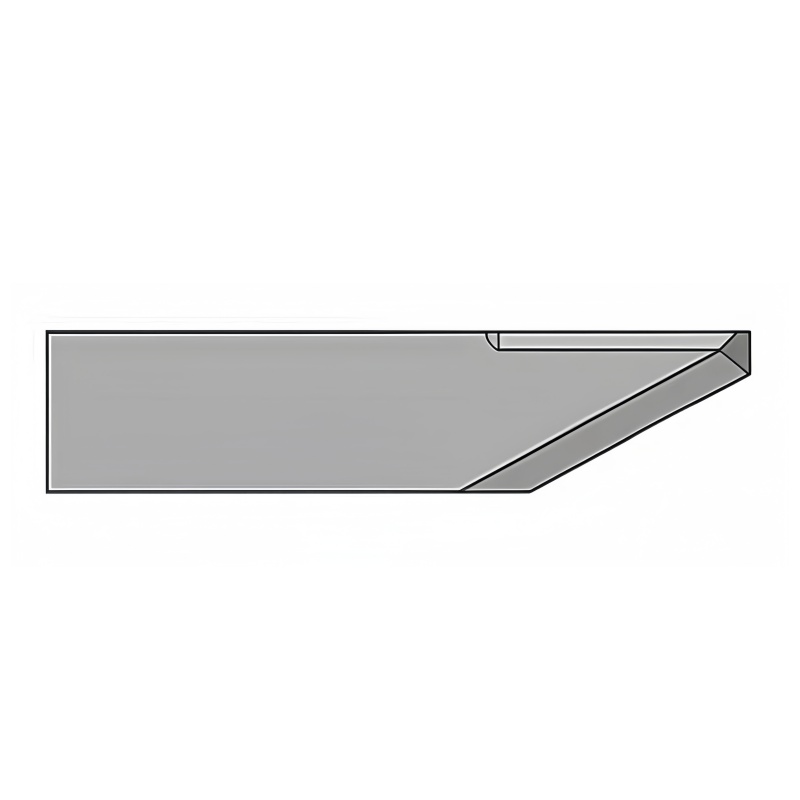

Item	Specification
Cutter Brand	Atom
Product Code	01030730
Series	Flashcut HV1600
Knife Type	Flat, Flat Oscillating Blades, Oscillating Blade
Cutting Angle	25° – 0°
Knife Height	28.00 mm
Knife Width	5.50 mm
Blade Thickness	0.63 mm
Max. Cutting Depth	Approx. 6.00 mm
Knife / Blade Mounting	Flat 0.63 mm
Suitable Materials	Textiles, Texon, Soft leather, Suede
Compatible Machine	Atom Flashcut / Flashcut Flex / HV1600
Replacement	Yes

Product Description

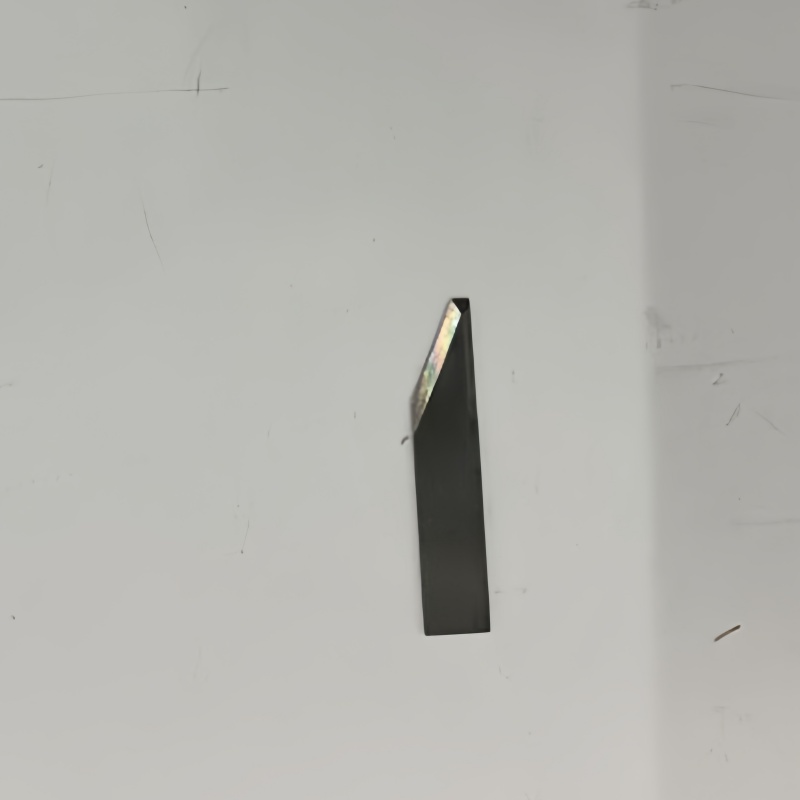

The Atom 01030730 Flashcut HV1600 Oscillating Knife Blade is a stable and durable tungsten carbide oscillating blade designed for Atom Flashcut and Flashcut Flex cutting machines. This OEM-compatible Atom replacement blade offers consistent cutting performance for soft and flexible materials used in footwear, textile, and industrial applications.

Featuring a 25°–0° cutting angle, the Atom 01030730 oscillating knife blade allows smooth material entry and controlled cutting paths, making it ideal for fine contours and small radii. With a 0.63 mm blade thickness and a maximum cutting depth of approximately 6 mm, this blade delivers clean edges while maintaining excellent stability during oscillating motion.

The Atom 01030730 blade is widely used for cutting textiles, Texon, soft leather, and suede, ensuring reliable performance in both sample-making and production environments. It is fully interchangeable with original Atom part number 01030730 (HV1600) and supports fast replacement on Atom oscillating knife tools.
