Atom 01033370 / 01039895 Single Edge Oscillating Knife Blade | Compatible with Zünd Z16 & Esko BLD-SF216

Single edge oscillating knife blade for precise contour cutting

Dual model compatibility: Atom 01033370 (HV1400) / 01039895 (HV1600)

54° blade angle for smooth cuts and reduced material drag

Maximum cutting depth: 7.40 mm

Flat 0.63 mm mounting ensures accurate alignment

Excellent cutting performance on vinyl, carton, foam board, and gasket materials

Suitable for continuous industrial CNC cutting

Request A Quote

Description
Related Products

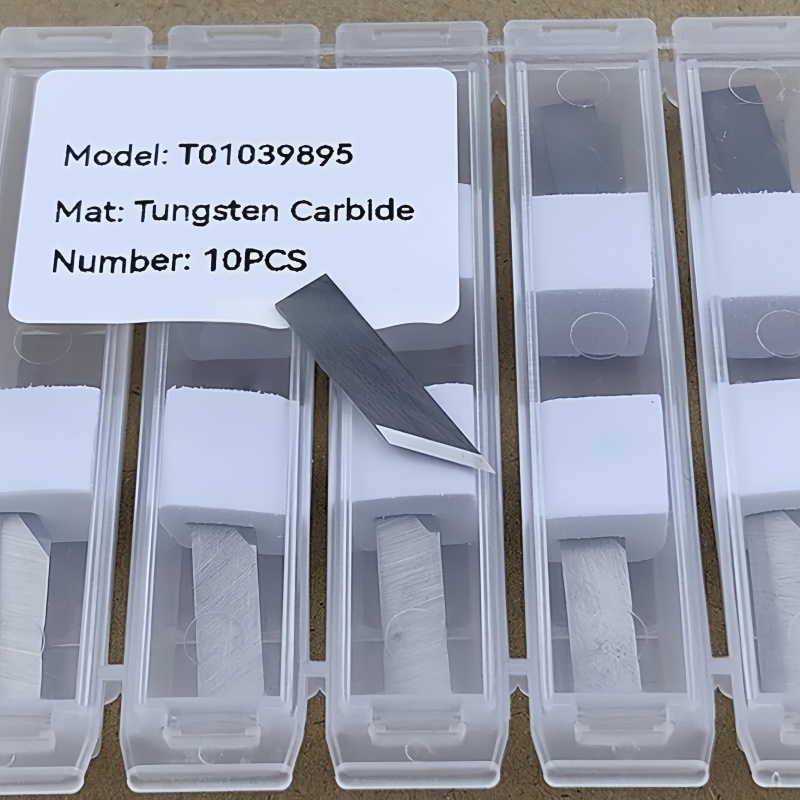

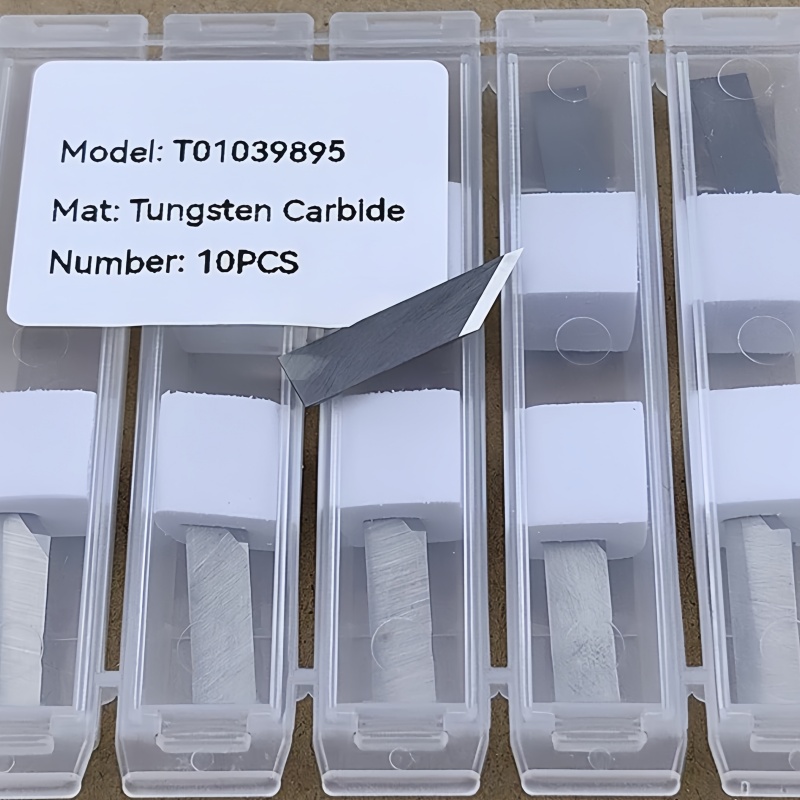

Atom 01033370 / 01039895 Single Edge Oscillating Knife Blade

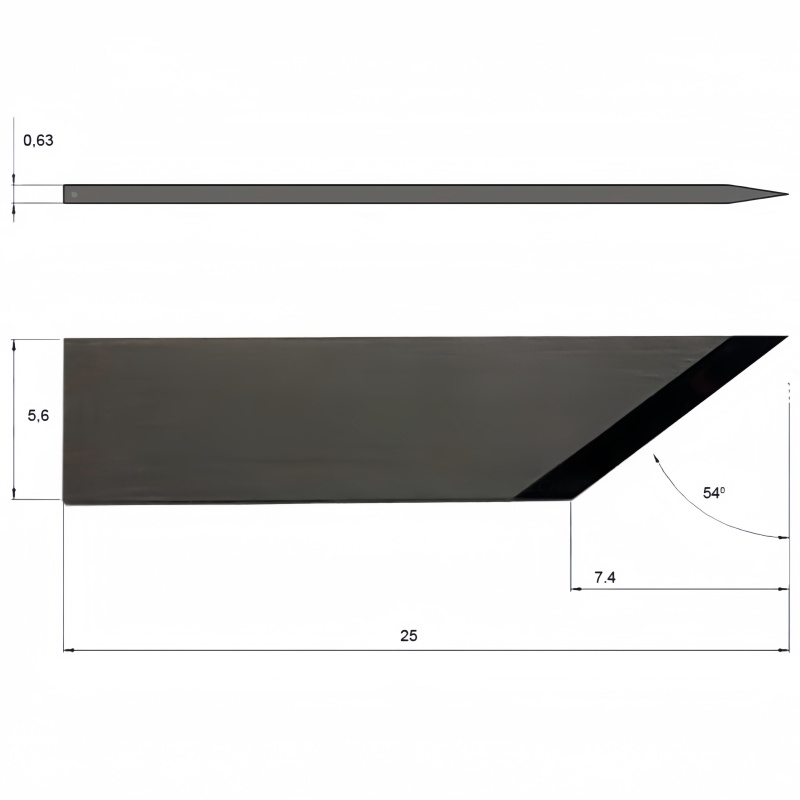

Technical Specifications

Parameter	Specification
Cutter Brand	Atom
Blade Models	01033370 (HV1400) / 01039895 (HV1600)
Knife Type	Flat Oscillating Blade, Single Edge, Pointed
Mounting	Flat, 0.63 mm
Max Cutting Depth	7.40 mm
Knife Height	25.00 mm
Knife Width	5.60 mm
Blade Thickness	0.63 mm
Blade Angle	54°
Replacement	Yes

Product Overview

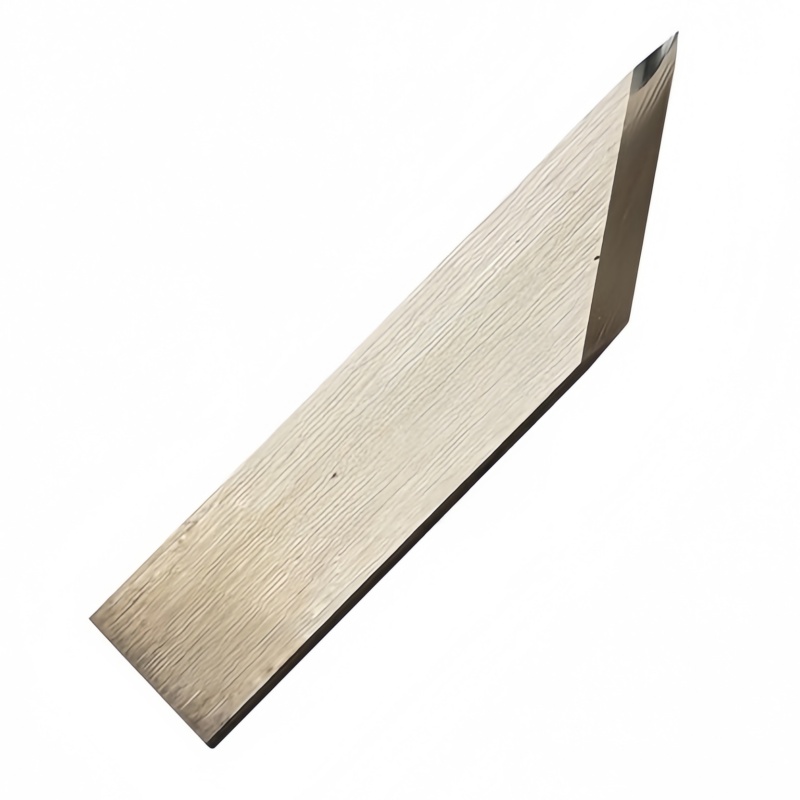

The Atom 01033370 / 01039895 single edge oscillating knife blade is a precision-engineered pointed flat oscillating blade designed for Atom HV1400 and HV1600 digital cutting systems. Featuring a 54° single-edge blade geometry and a maximum cutting depth of 7.4 mm, this blade is optimized for accurate contour cutting, fine details, and clean edge quality across a wide range of flexible and semi-rigid materials.

With a flat 0.63 mm mounting, 25 mm knife height, and 5.6 mm blade width, the Atom 01033370 / 01039895 provides excellent oscillation stability and consistent cutting performance, even during high-speed production runs.

This model is widely used as a direct compatible replacement for industry-standard single edge oscillating blades such as Zünd Z16, Esko BLD-SF216, Gerber MCT SE16, and Bullmer B16, making it an ideal choice for multi-brand CNC cutting environments.

Compatible Materials

The Atom 01033370 / 01039895 single edge oscillating blade is suitable for cutting:

Self-adhesive vinyl films
Reflective vinyl film
PVC sheets
Folding carton and paperboard
Foam board
Gasket materials
Canvas and polyester fabrics

Its single-edge design helps achieve clean cuts with minimal burrs, especially on thin and laminated materials.

Cross-Brand Compatibility

This blade is a direct replacement equivalent for the following part numbers:

Zünd Z16 / 3910306
Esko BLD-SF216 / G42441212
Gerber MCT SE16 / 895016
Colex Single Edge 53.2°
Bullmer B16
Mecanumeric 100610440
Atom 01033370 / 01039895

Application Industries

Sign making and vinyl cutting
Packaging and folding carton production
Foam board and display manufacturing
Gasket and sealing material cutting
Digital flatbed CNC cutting operations

Why Choose Atom 01033370 / 01039895 Blade

The 54° single edge geometry allows smoother penetration and controlled cutting, reducing material deformation and improving edge quality. Compared to double-edge or steep-angle blades, this model offers better stability on thin materials and longer usable blade life.

It is an excellent choice for users seeking a reliable Z16 / SE16 alternative without sacrificing precision or durability.
