Flashcut HV1600 tungsten carbide oscillating blade
Extra-deep cutting capability: up to 22.00 mm
5°–25°–10° multi-angle design for smooth and controlled cuts
Flat 0.63 mm mounting ensures stable oscillation
Excellent performance on foam board, rubber, and synthetic materials
High wear resistance for industrial production environments
Direct replacement blade compatible with Atom cutting systems

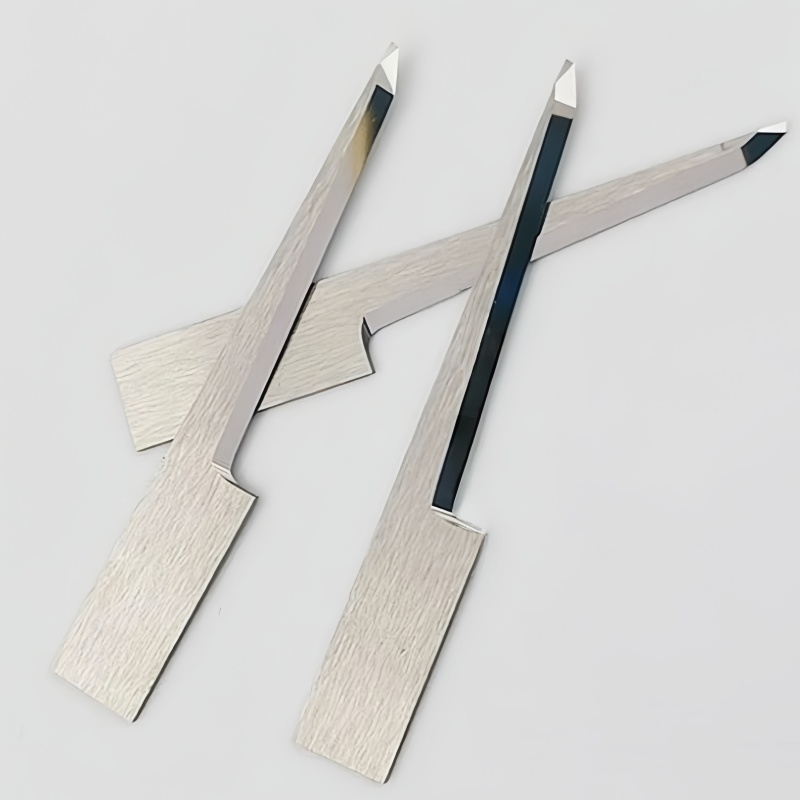

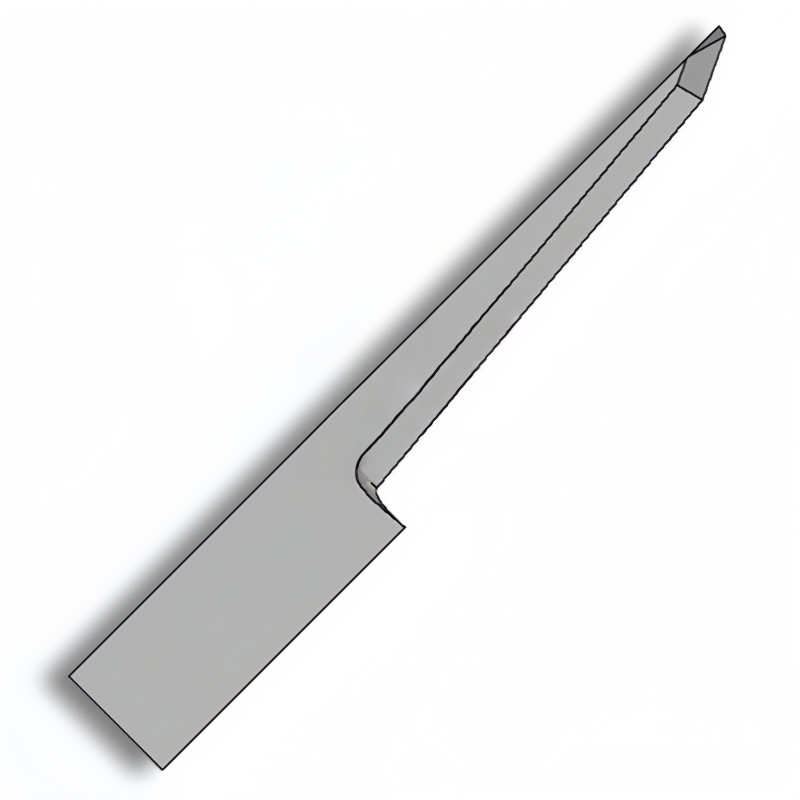

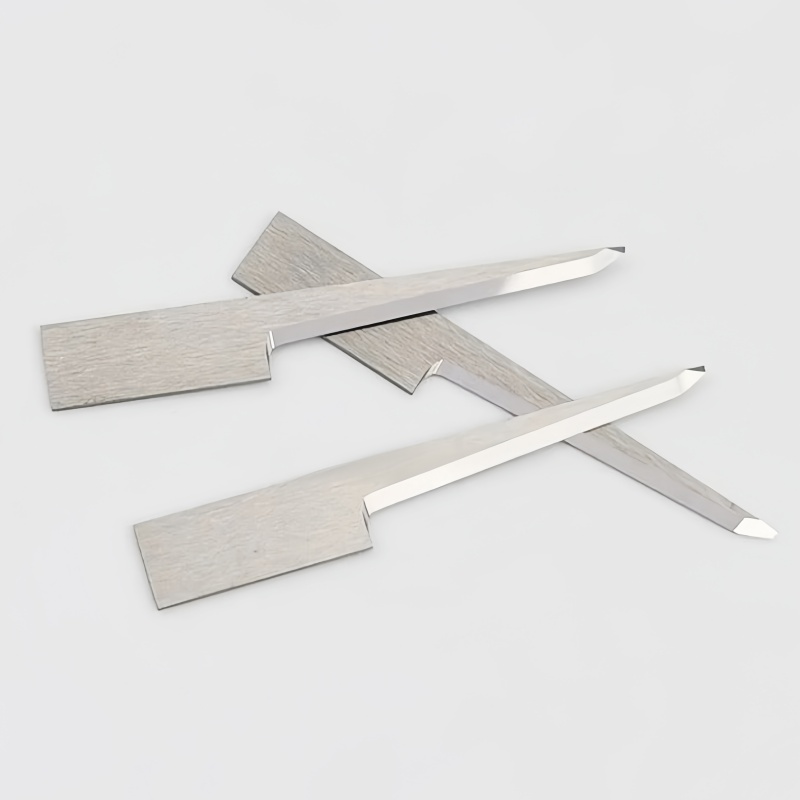

Atom 01039997 Flashcut HV1600 Tungsten Carbide Oscillating Knife Blade

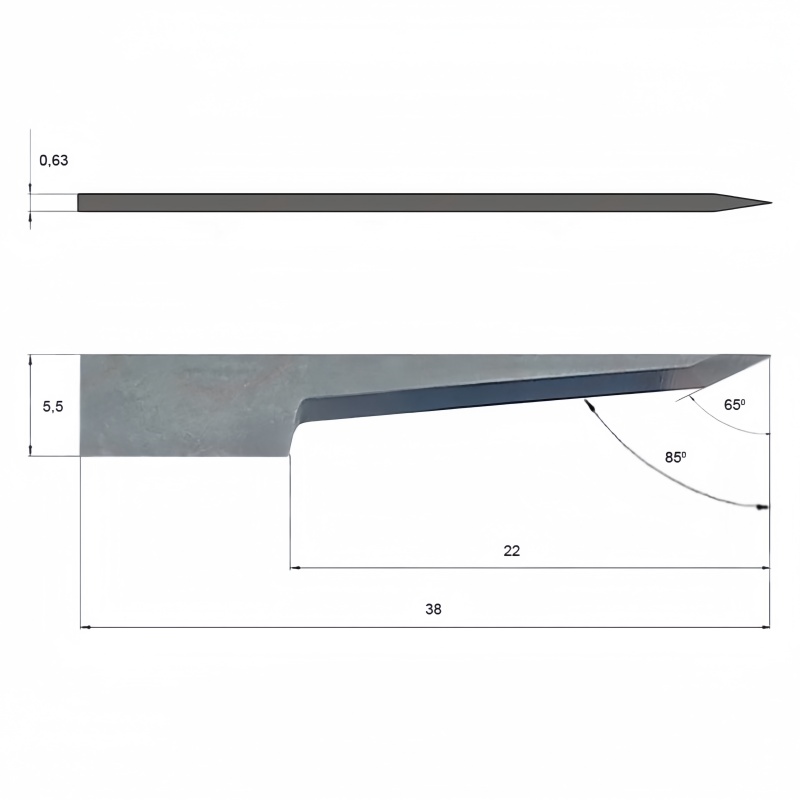

Technical Specifications
| Parameter | Specification |
|---|---|
| Cutter Brand | Atom / MLA |
| Blade Model | 01039997 |
| Knife Type | Flat Oscillating Blade |
| Composition | Tungsten Carbide |
| Mounting | Flat, 0.63 mm |
| Max Cutting Depth | 22.00 mm |
| Knife Height | 38.00 mm |
| Knife Width | 5.50 mm |
| Blade Thickness | 0.63 mm |
| Blade Angle | 5°–25°–10° |
| Recommended Materials | Foam board, Rubber, Synthetic materials |
| Replacement | Yes |
Product Overview
The Atom 01039997 Flashcut HV1600 oscillating knife blade is a tungsten carbide flat oscillating blade designed for deep and stable cutting on Atom HV1600 digital cutting systems.
With a maximum cutting depth of 22 mm, a multi-angle 5°–25°–10° geometry, and 0.63 mm flat mounting, this Flashcut blade delivers excellent cutting stability, clean edges, and long service life when processing foam board, rubber, and synthetic materials. It is particularly suited for thick and dense materials that require deep penetration and consistent oscillation.
Recommended Materials
The Atom 01039997 Flashcut blade is optimized for cutting:
-
Thick foam board and technical foam
-
Rubber sheets and rubber composites
-
Synthetic materials and industrial plastics
Its tungsten carbide construction ensures long-lasting sharpness and reliable performance, even under continuous deep-cutting conditions.
Application Industries
-
Foam and insulation processing
-
Rubber and gasket manufacturing
-
Synthetic material fabrication
-
CNC digital cutting workshops
Why Choose Atom 01039997 Flashcut HV1600
Compared with standard oscillating blades, the Atom 01039997 Flashcut HV1600 blade offers superior cutting depth, durability, and edge stability. It is the ideal choice for users who need deep, clean cuts on thick and resilient materials without compromising precision.
Installation & Compatibility
Designed for Atom HV1600 CNC cutting systems, this blade installs easily using standard 0.63 mm flat blade holders and is compatible with electric and pneumatic oscillating tools.
Call to Action
Looking for Atom 01039997 Flashcut HV1600 tungsten carbide oscillating knife blades for foam or rubber cutting?
📩 Contact us today for pricing, bulk orders, and technical support.
-
