Technical Specifications

Specification	Details
Model	ATOM 0103A998
System	HV1600
Blade Type	Oscillating Knife
Angle	11°–15°
Offset / Overcut	1–2.2 mm
Max Thickness	3 mm Texon / Fiber board
Sole Leather	up to 6 mm
Radius	3 mm
Compatible Systems	Atom Flashcut

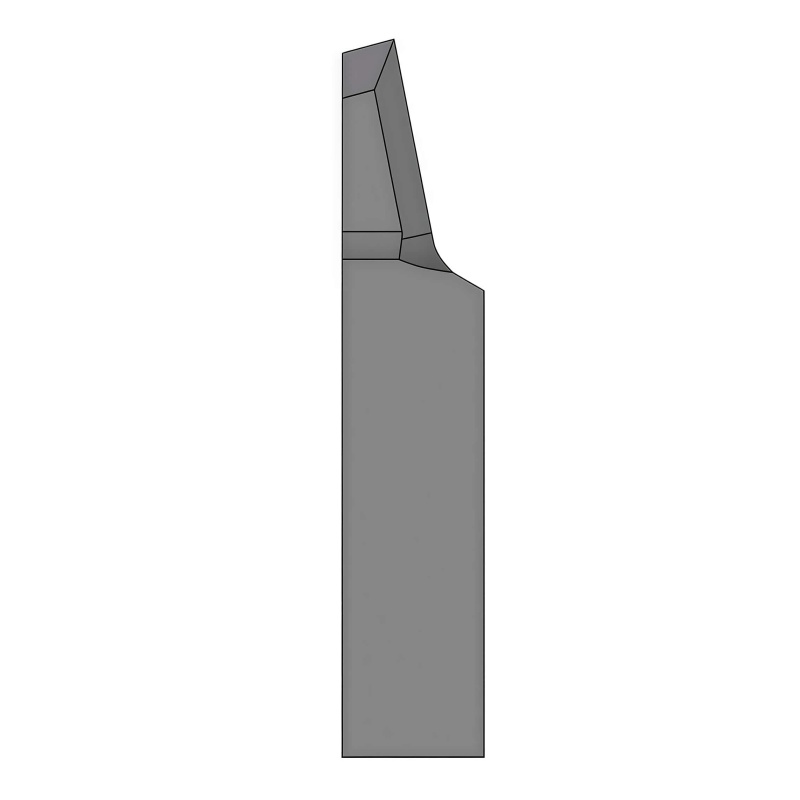

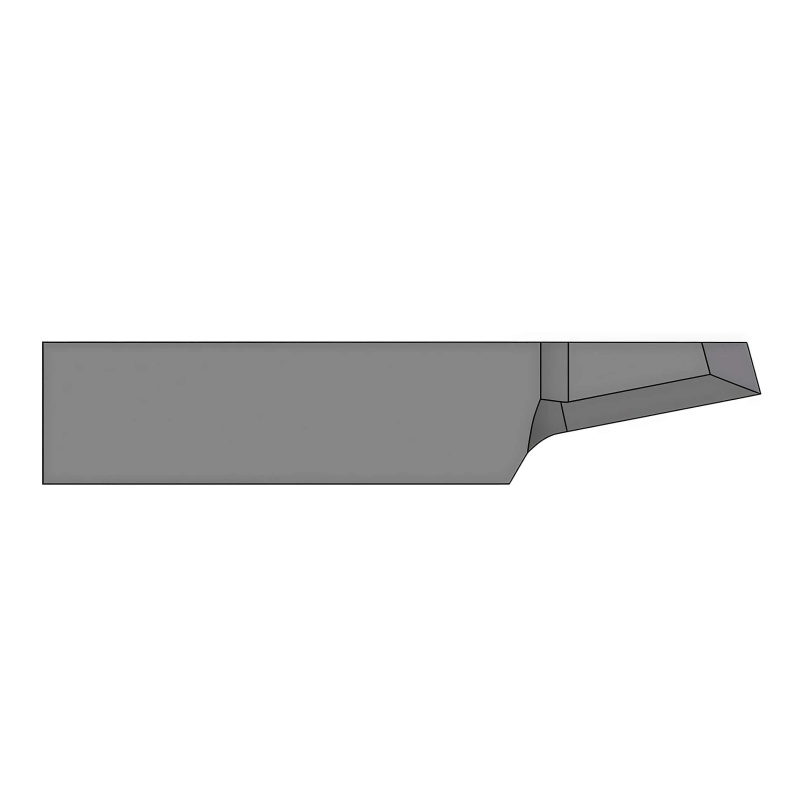

The ATOM 0103A998 (HV1600) oscillating knife blade is engineered for high-speed cutting of thin and rigid materials used in footwear and industrial applications.

This blade is particularly suitable for processing Texon sheets, fiber board, and sole leather, delivering precise cutting performance even on small radius contours down to 3 mm.

With an optimized 11°–15° cutting angle and 1–2.2 mm offset overcut, the blade ensures clean edges and accurate finishing at high production speeds.

Designed for reliability and consistent performance, the 0103A998 blade is fully compatible with digital cutting systems from Atom.
