ATOM 0103B858 Flashcut HV1600 Oscillating Knife Blade|Manufacturer of Carbide Knives & Blades

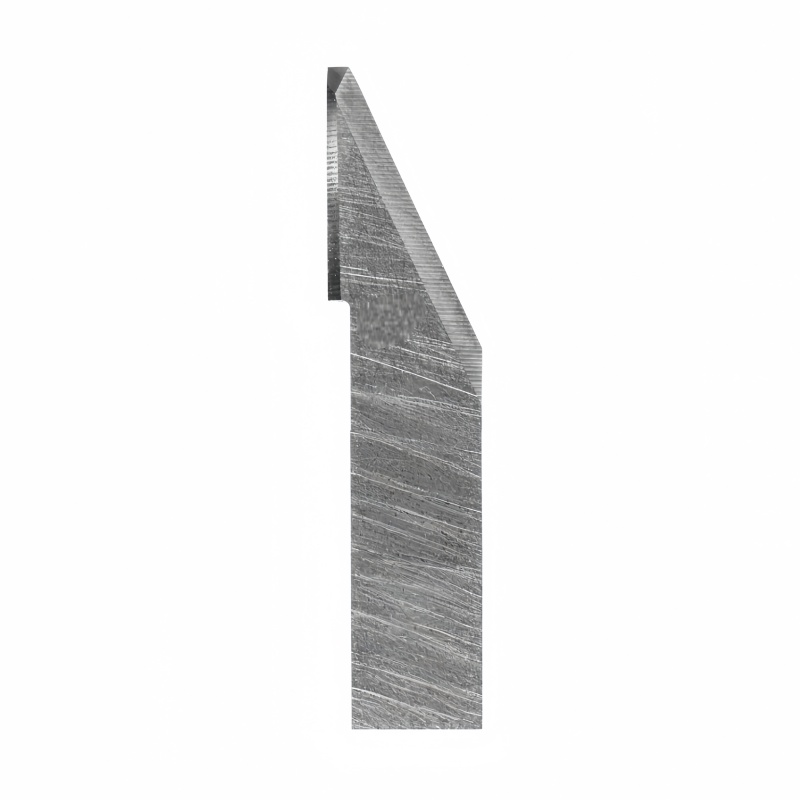

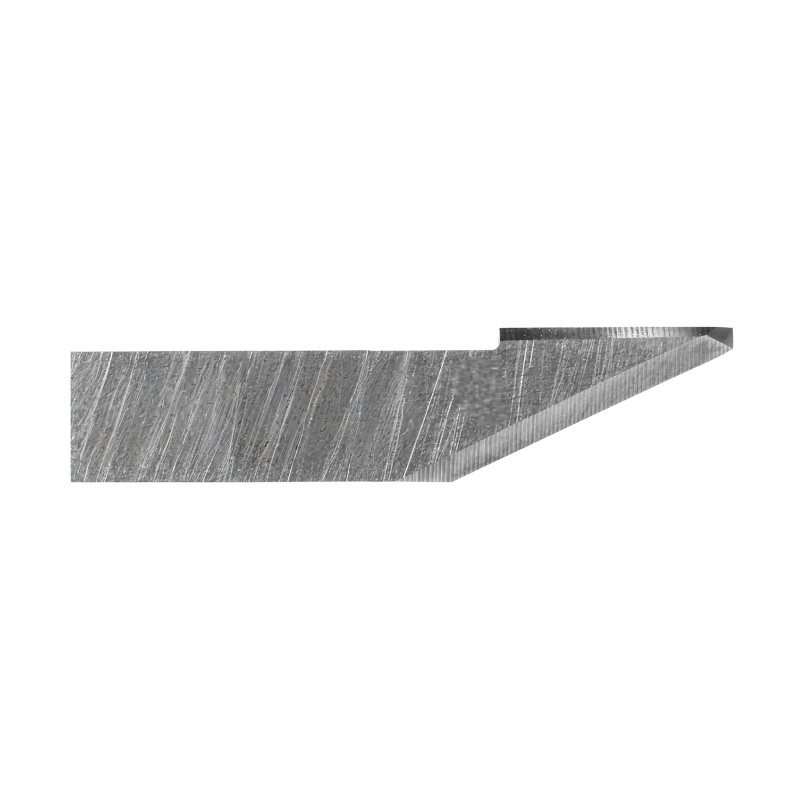

ATOM 0103B858 Flashcut HV1600 Tungsten Carbide Oscillating Knife Blade for ATOM Cutting Systems

Tungsten carbide oscillating knife blade for ATOM cutting systems

ATOM 0103B858 replacement blade (equivalent to 0103B85 / 01033856 / 01033858)

Supports up to 14 mm maximum cutting depth

0°–25° cutting angle for precise cutting and small radius performance

Compatible with Electric Oscillating Tool (EOT) and Pneumatic Oscillating Tool (POT)

OEM-compatible oscillating blade for automated cutting machines

Request A Quote

Description
Related Products

Product Specification Sheet

Item	Specification
Cutter Brand	ATOM
Model	0103B858
Equivalent Codes	0103B85 / 01033856 / 01033858
Knife Type	Flat, Flat Oscillating Blades, Oscillating Blade
Knife Height	28.00 mm
Knife Width	5.50 mm
Thickness	1.00 mm
Max. Cutting Depth	14.00 mm
Cutting Angle	0° – 25°
Knife / Blade Mounting	Flat 1 mm
Composition	Tungsten Carbide
Replacement	Yes

Recommended Materials

Reinforced graphite gaskets
Asbestos-free gasket materials
Thick leather (soles up to 6 mm, belts, hides)
Very rigid industrial materials
Dense composite substrates (up to 10 mm thickness)

Product Description

The ATOM 0103B858 Flashcut HV1600 Oscillating Knife Blade is a high-performance tungsten carbide oscillating blade designed for ATOM automated cutting systems and compatible digital cutting machines. This blade is equivalent to ATOM 0103B85, 01033856, and 01033858, offering excellent interchangeability across multiple cutting platforms.

Engineered for medium-speed cutting in hard and rigid materials, the ATOM 0103B858 oscillating knife blade delivers stable performance with precise cutting control. The 1.00 mm blade thickness provides enhanced rigidity, while the 0°–25° cutting angle allows efficient penetration and smooth cutting paths, even in dense substrates.

With a maximum cutting depth of 14 mm, this Flashcut HV1600 oscillating blade is ideal for thick leather components, reinforced graphite, asbestos-free gasket materials, and other very rigid materials. Manufactured from tungsten carbide (HM – hard metal), it offers excellent wear resistance and long service life in continuous production environments.

The blade is compatible with both Electric Oscillating Tools (EOT) and Pneumatic Oscillating Tools (POT) using 1.5 mm / 1.0 mm reduction, making it a versatile OEM-compatible replacement blade for industrial cutting workflows.
