ATOM CNC Knives Knife Blades– replacement

Atom 0103B998 (HV1600) Flashcut Knife Blade Tools For Atom Digital Cutter Cutting Systems

Designed for high-speed cutting

Ideal for Texon and fiber board

Suitable for sole leather up to 6 mm

Accurate cutting of 3 mm radius contours

Optimized oscillating geometry for industrial production

Request A Quote

Description
Related Products

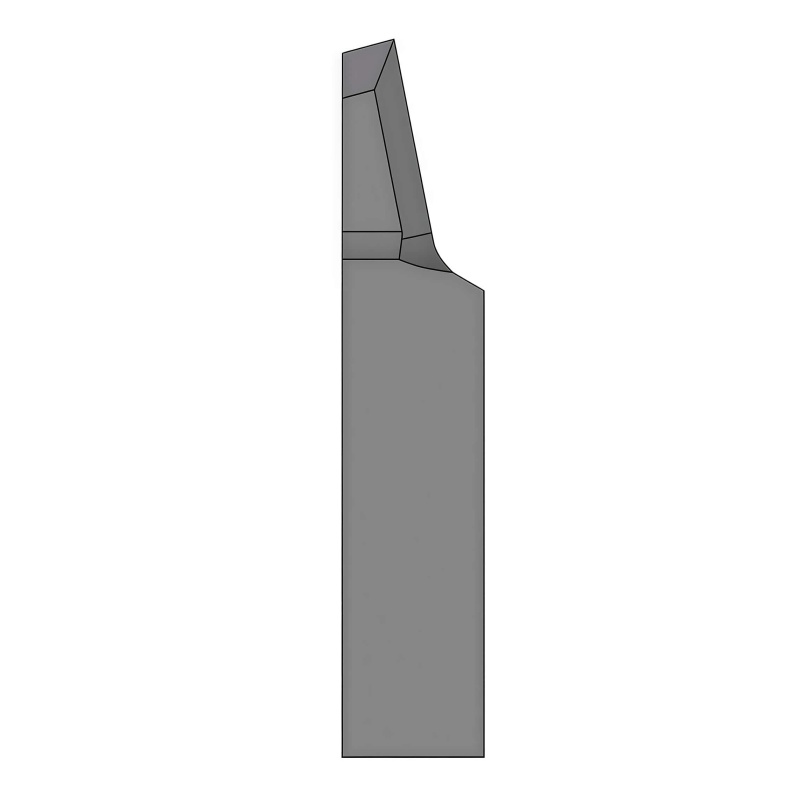

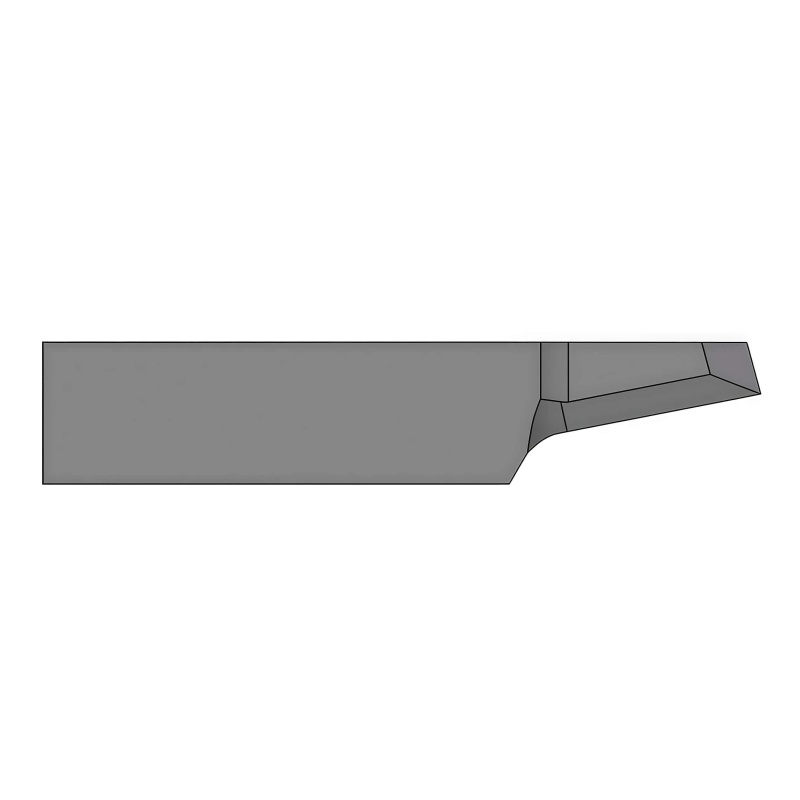

ATOM 0103B998 HV1600 Flashcut Oscillating Knife Blade

Technical Specifications

Specification	Details
Model	ATOM 0103B998
System	HV1600
Blade Type	Oscillating Knife
Angle	11°–15° (1-0.8)
Offset / Overcut	1–2.2 mm
Texon / Fiber Board Thickness	up to 3 mm
Sole Leather Thickness	up to 6 mm
Radius	3 mm
Compatible Systems	Atom Flashcut

The ATOM 0103B998 (HV1600) oscillating knife blade is designed for precision cutting of thin and rigid materials used in footwear and industrial manufacturing.

This blade is particularly suitable for cutting Texon sheets, fiber board and sole leather, delivering accurate performance at high cutting speeds.

With an optimized 11°–15° cutting angle and 1–2.2 mm offset overcut, the blade ensures clean edges and reliable results even when processing small contour radii down to 3 mm.

Engineered for durability and precision, this blade is fully compatible with digital cutting systems from Atom.
