Flashcut HV1600 tungsten carbide oscillating blade
Original compatible model: Atom 0103C998
11°–15° fine cutting angle for precision and control
Maximum cutting depth: 6 mm
Excellent performance on small radii (down to 4 mm)
Ideal for Texon, fiber board, and sole leather
Reliable replacement blade for Atom cutting systems

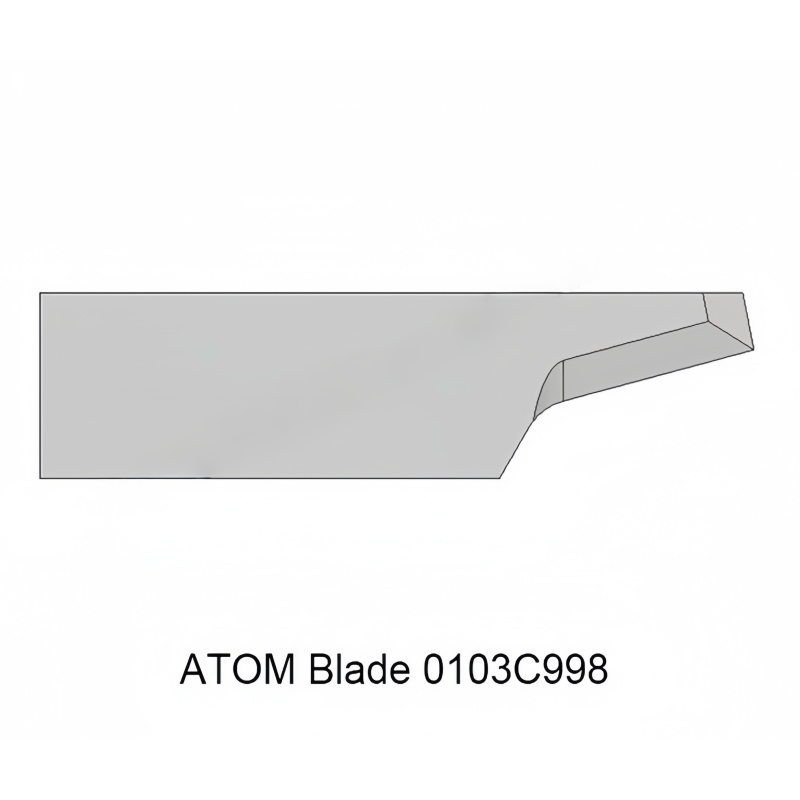

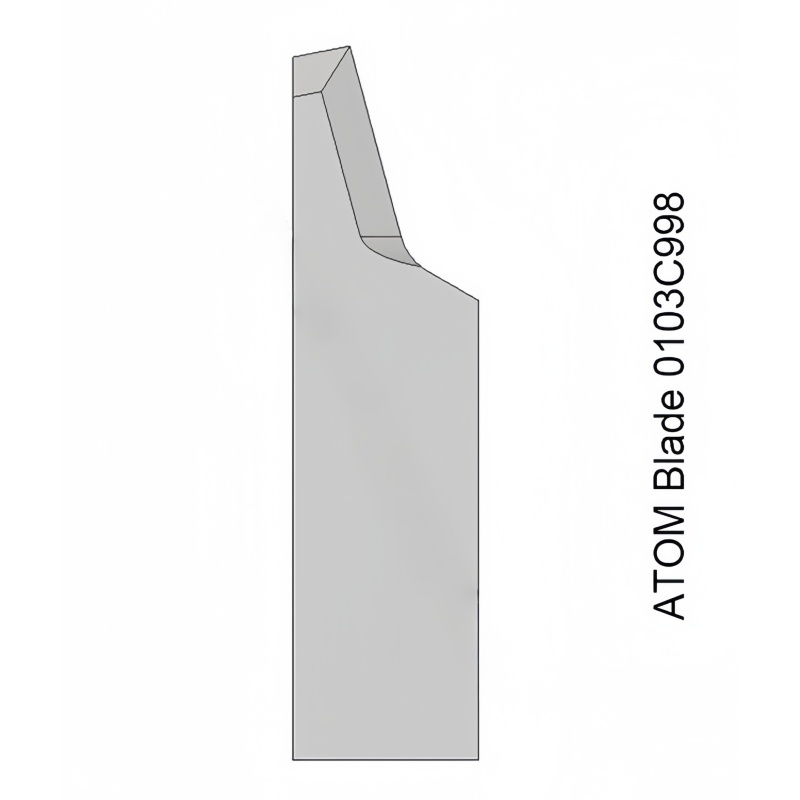

Atom 0103C998 Flashcut HV1600 Tungsten Carbide Oscillating Knife Blade | Texon & Sole Leather Cutting
Technical Specifications
| Parameter | Specification |
|---|---|
| Cutter Brand | Atom |
| Blade Model | 0103C998 |
| Knife Type | Flat Oscillating Blade |
| Composition | Tungsten Carbide |
| Mounting | Flat (Atom standard holder) |
| Max Cutting Depth | 6 mm |
| Blade Angle | 11°–15° |
| Recommended Materials | Texon, Fiber board, Sole leather |
| Max Material Thickness |
Texon / Fiber board: up to 3 mm Sole leather: up to 6 mm |
| Minimum Radius | 4 mm |
| Replacement | Yes |
Product Overview
The Atom 0103C998 Flashcut HV1600 knife blade is a tungsten carbide flat oscillating blade developed for high-speed, precision cutting on Atom HV1600 digital cutting systems.
With a fine 11°–15° cutting angle, a maximum cutting depth of 6 mm, and optimized blade geometry, this Flashcut blade delivers exceptional cutting accuracy, smooth edges, and minimal material deformation. It is specifically designed for Texon, fiber board, and sole leather, supporting material thicknesses up to 3 mm (Texon / fiber board) and up to 6 mm for sole leather.
Thanks to its tungsten carbide construction, the blade maintains sharpness at high cutting speeds and performs reliably on small radii down to 4 mm, making it ideal for detailed footwear components.
Recommended Materials
The Atom 0103C998 Flashcut blade is optimized for cutting:
-
Texon sheets (insole materials)
-
Fiber board and footwear reinforcement materials
-
Sole leather (up to 6 mm thickness)
Its small-angle carbide edge ensures clean penetration and excellent edge quality, even during high-speed cutting.
Application Industries
-
Footwear and insole manufacturing
-
Shoe sole and reinforcement cutting
-
Leather footwear components
-
CNC digital cutting workshops
Why Choose Atom 0103C998 Flashcut HV1600
The Atom 0103C998 Flashcut HV1600 blade is the ideal choice for manufacturers who require speed, precision, and durability when cutting footwear materials. Its tungsten carbide edge supports high production speeds, while the 11°–15° geometry ensures accuracy on tight contours and small radii.
Installation & Compatibility
This blade is fully compatible with Atom HV1600 CNC cutting systems and installs easily using standard flat blade holders. Suitable for electric and pneumatic oscillating tools.
Call to Action
Looking for Atom 0103C998 Flashcut HV1600 tungsten carbide oscillating knife blades for Texon or sole leather?
📩 Contact us today for pricing, bulk orders, and technical support.
-
