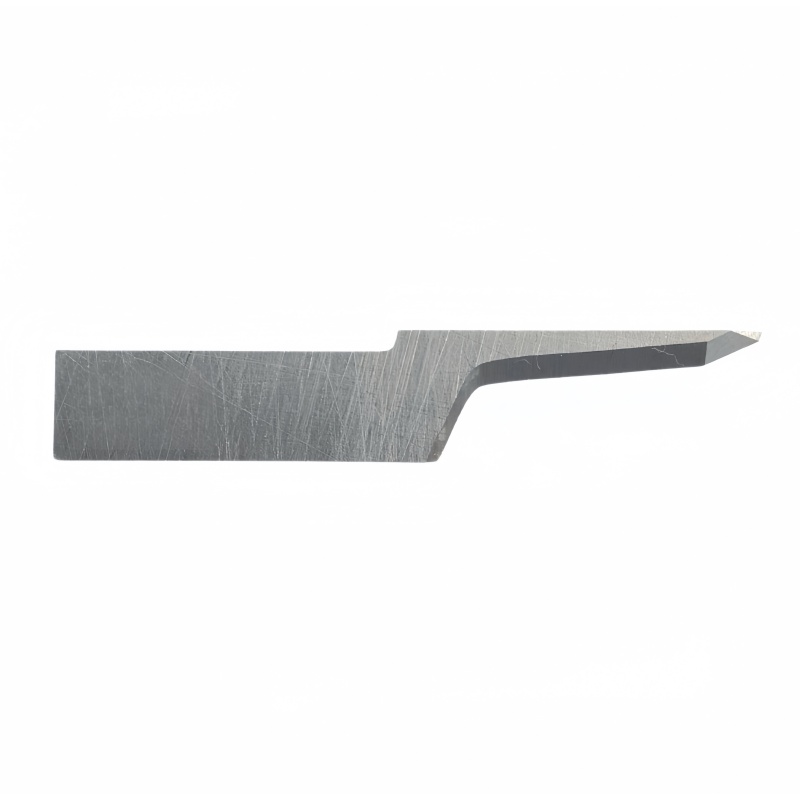

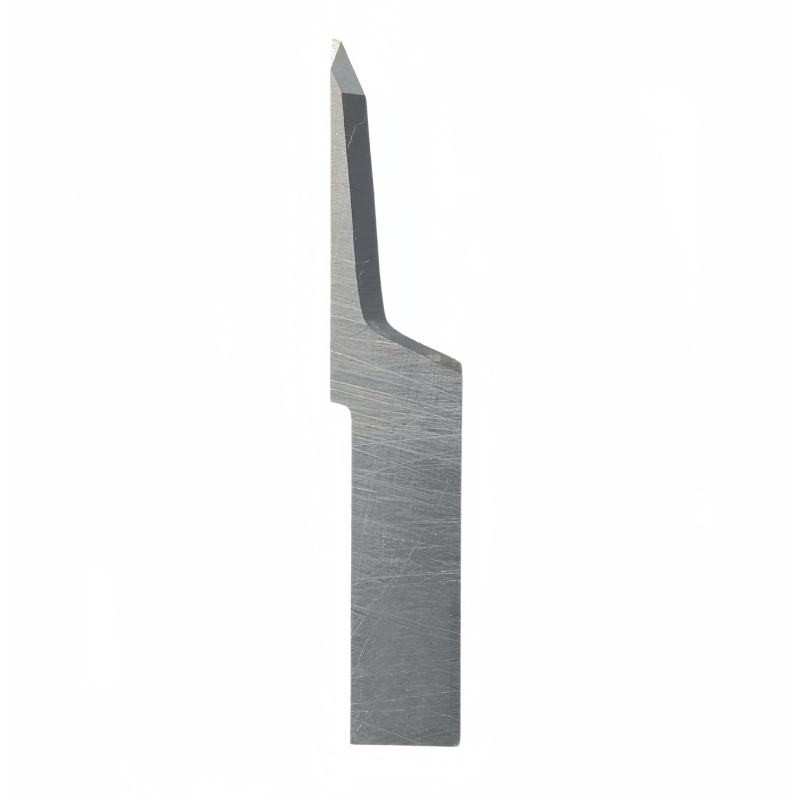

Atom 01040357 Flashcut HV1600 Oscillating Knife Blade – Soft Rubber Cutting

Technical Specifications

Product Overview

The Atom 01040357 oscillating knife blade is a high-performance replacement blade for Atom Flashcut HV1600 flatbed cutters, designed for precision cutting of soft rubber materials. With a maximum cutting depth of 13 mm and support for minimum radii of 2 mm, this blade is ideal for industrial applications requiring thick material penetration and tight curve cutting.

Manufactured from tungsten carbide (HM / Hard Metal), the Atom 01040357 ensures exceptional durability and long service life, even under high-speed oscillation. Compatible with both electric oscillating tools (EOT) and pneumatic oscillating tools (POT), it provides versatility across a wide range of CNC cutting machines.

Compatible Materials

The Atom 01040357 HV1600 oscillating blade is optimized for cutting:

• Soft rubber sheets (up to 13 mm thick)

• Flexible rubber components requiring tight radius cuts

The tungsten carbide edge maintains sharpness and accuracy even under heavy-duty cutting conditions.

Application Industries

• Industrial rubber component production

• Seal, gasket, and mat cutting

• Automotive and footwear rubber manufacturing

• CNC flatbed cutting operations

Why Choose Atom 01040357 Replacement Blade

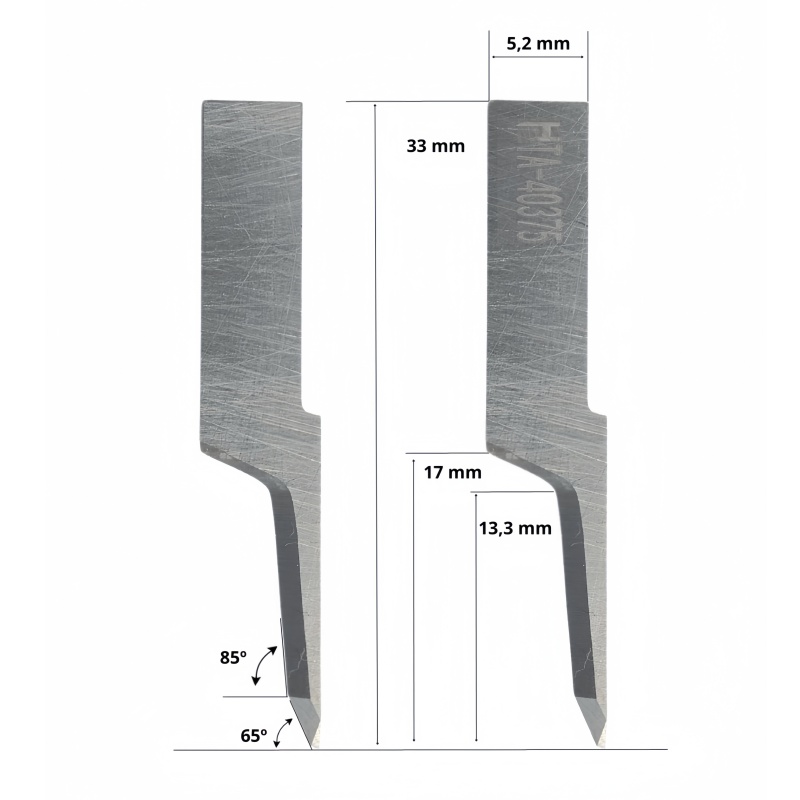

The Atom 01040357 oscillating knife blade is designed for professionals who need precision, durability, and versatility. Its carbide construction ensures long life, while the dual-angle (65°/85°) geometry enables tight radius cuts and smooth edges on thick rubber materials.

Compared to standard oscillating blades, this blade reduces material deformation, maintains edge quality, and ensures consistent performance across multiple CNC platforms.

Need Atom 01040357 oscillating knife blades for soft rubber cutting or bulk orders?
📩 Contact us today for pricing, lead time, and technical support.
