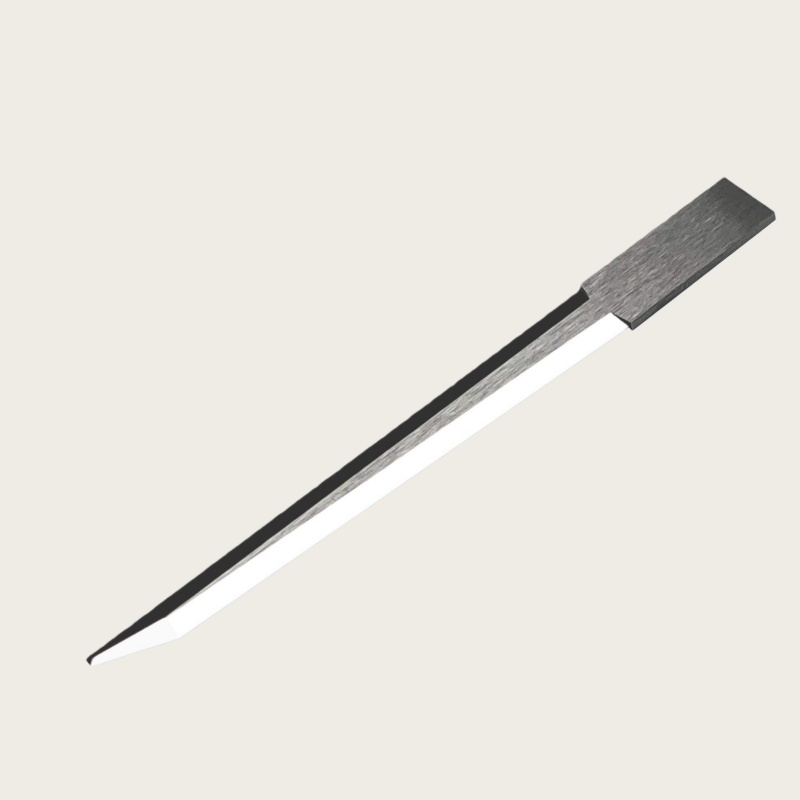

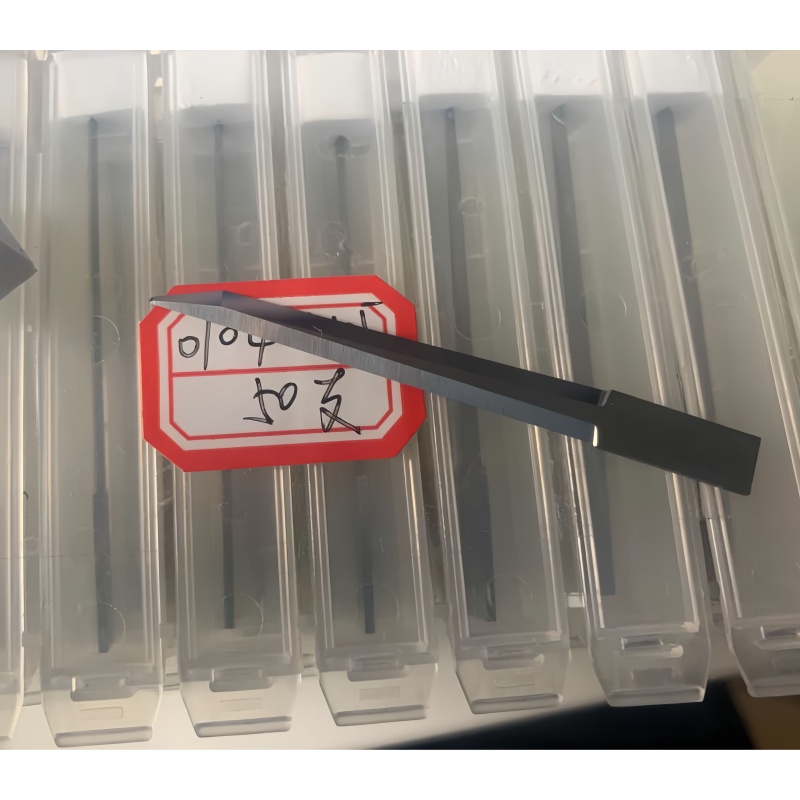

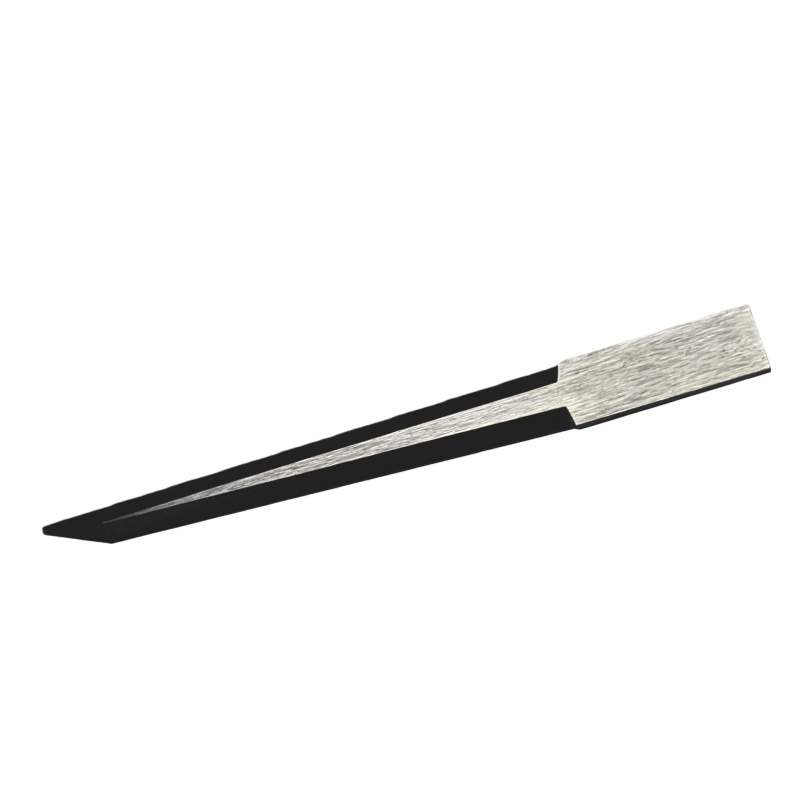

Atom 01040445 Flashcut HV1600 Oscillating Knife Blade

Product Specifications

Product Overview

The Atom 01040445 Flashcut HV1600 Oscillating Knife Blade is a high-performance replacement blade designed for Atom and MLA flatbed digital cutting machines.
Engineered for deep cutting applications, this blade delivers excellent stability, clean edges, and reliable oscillation performance in high-volume production environments.

With an extended 63 mm blade height and a maximum cutting depth of 47 mm, it is ideal for cutting thicker materials while maintaining precision and durability.

Cutting Performance

The dual cutting angle of 65° / 87° allows this blade to adapt to different material densities, providing smooth penetration and reduced resistance during oscillating motion.

Its 1.0 mm thickness and flat mounting ensure a stable fit in HV1600 oscillating tool holders, supporting consistent results even at high cutting speeds.

Machine Compatibility

• Atom flatbed digital cutting machines

• MLA cutting systems

• HV1600 oscillating knife tool holders with flat 1 mm mount

⚠️ Please verify tool holder and material thickness before ordering.

Typical Applications

• Thick foam board cutting

• Packaging and display board processing

• Rubber sheet cutting

• Synthetic material manufacturing
