Flashcut HV1400 oscillating knife blade
Ultra-deep cutting depth up to 130 mm
1.5 mm thick blade for maximum stiffness and stability
Triple cutting angle: 2°-45°-45°
High-performance tungsten carbide cutting edge
Excellent performance on thick and layered materials
Replacement compatible spare part for Atom 01040836

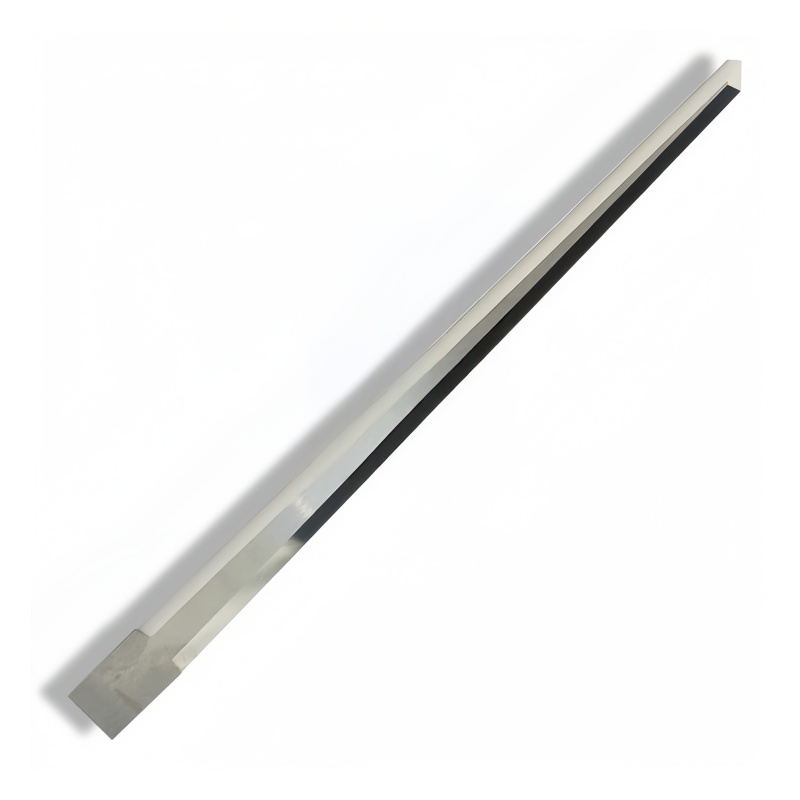

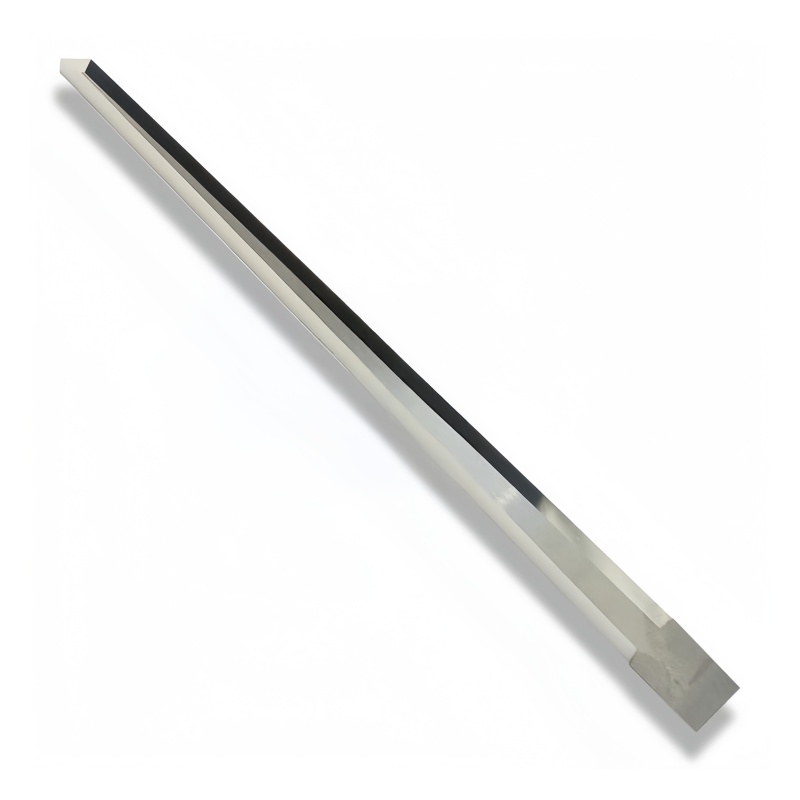

Atom 01040836 Flashcut HV1400 Tungsten Carbide Oscillating Knife Blade

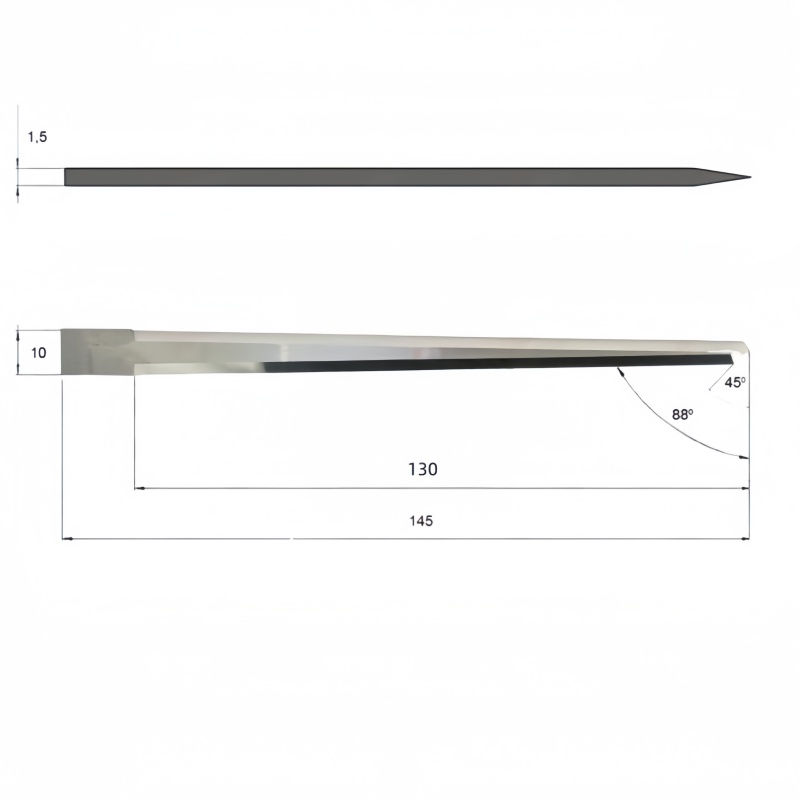

Technical Specifications
| Parameter | Specification |
|---|---|
| Cutter Brand | Atom |
| Blade Model | 01040836 |
| Series | Flashcut HV1400 |
| Knife Type | Flat Oscillating Blade |
| Composition | Tungsten Carbide |
| Blade Mounting | Flat 1.5 mm |
| Blade Thickness | 1.50 mm |
| Knife Height | 145 mm |
| Knife Width | 10.00 mm |
| Max Cutting Depth | 130 mm |
| Blade Angle | 2°-45°-45° |
| Recommended Materials | Foam board, Packaging materials, Synthetic materials |
| Replacement | Yes |
Product Overview
The Atom 01040836 Flashcut HV1400 oscillating knife blade is an ultra-deep cutting, heavy-duty blade developed for Atom digital cutting systems operating in industrial and packaging applications.
Featuring an exceptional maximum cutting depth of 130 mm and a reinforced 1.5 mm blade thickness, this blade ensures maximum rigidity, oscillation stability, and clean cutting performance, even when processing very thick foam board, packaging materials, and synthetic materials.
It is the ideal solution for users requiring extreme cutting depth with high durability and precision.
Recommended Materials
-
Foam board
-
Packaging materials
-
Synthetic materials
Designed for deep, stable, and vibration-free cutting of very thick and rigid substrates.
Compatible Machines & Tools
-
Atom Flashcut HV1400 cutting systems
-
Electric Oscillating Tool (EOT)
-
Pneumatic Oscillating Tool (POT)
Typical Applications
-
Ultra-thick foam board cutting
-
Heavy-duty packaging material processing
-
Industrial cushioning and insulation materials
-
Large-format CNC flatbed cutting
Why Choose Atom 01040836
-
One of the deepest cutting HV1400 blades (130 mm)
-
Superior rigidity for extreme material thickness
-
Long service life thanks to tungsten carbide
-
Reliable performance in industrial production environments
Call to Action
Looking for Atom 01040836 Flashcut HV1400 tungsten carbide oscillating knife blades?
📩 Contact us today for prices, technical support, and bulk supply solutions.
-
