Atom 01043600 (Hv1600) Oscilation Knife Blade Compatible For Atom Automated Cutting Machine

Deep cutting capability up to 16 mm
Designed for foam, mousse, and packaging materials
Optimized 12°–45°–45° oscillating angle
Efficient offset-overcut 0–3/4 mm
Compatible with HV1600 Flashcut systems

Description
Related Products

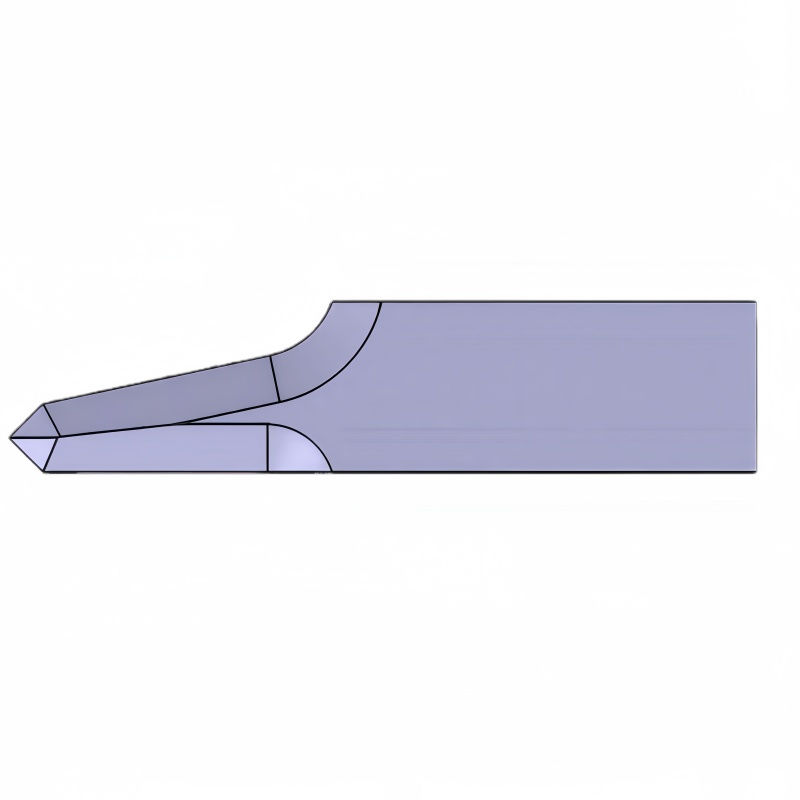

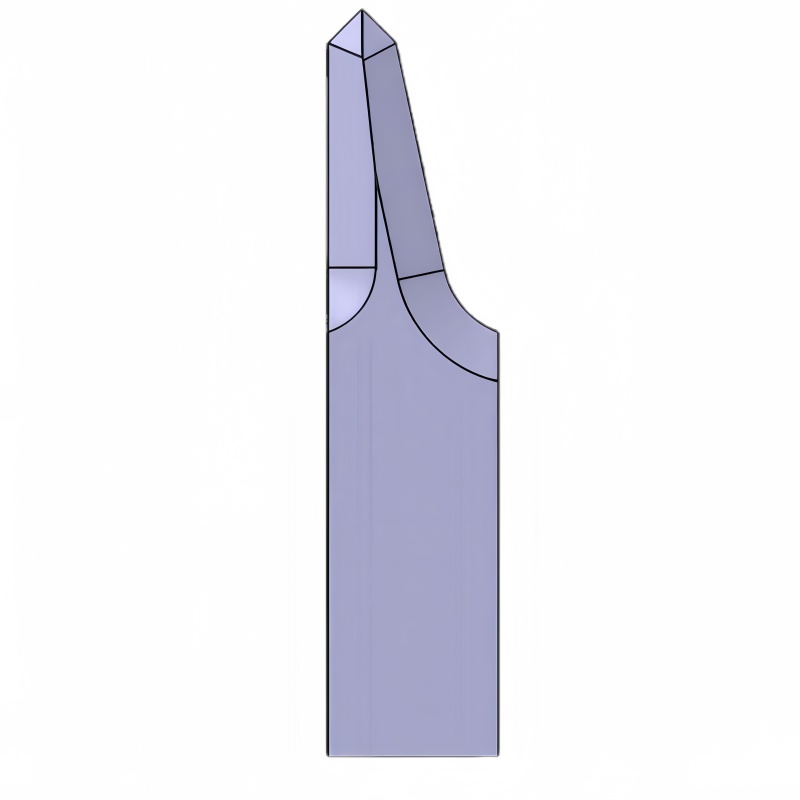

ATOM 01043600 HV1600 Flashcut Oscillating Knife Blade

Technical Specifications

Specification	Details
Model	ATOM 01043600
System	HV1600
Blade Type	Oscillating Knife
Angle	12°–45°–45°
Offset / Overcut	0–3/4 mm
Max Cutting Thickness	16 mm
Applications	Foam, Mousse, Packaging Materials
Compatible Systems	Atom HV1600 Flashcut

The ATOM 01043600 (HV1600) oscillating knife blade is engineered for deep cutting of soft materials such as foam, mousse, and packaging materials.

This blade allows cutting up to 16 mm thickness, making it ideal for industrial and packaging applications where clean and precise cuts of compressible materials are required.

Featuring an optimized 12°–45°–45° cutting angle and an offset-overcut range of 0–3/4 mm, this blade ensures smooth edges and efficient material removal, even during heavy-duty cutting operations.

Compatible with Atom HV1600 Flashcut automated cutting systems, it delivers reliable performance and durability for professional use.
