Atom 01045232 Flashcut Oscillating Knife Blade Atom 45232|Manufacturer of Carbide Knives & Blades

Atom 01045232 Carbide Flashcut Oscillating Knife Blade compatible for Atom automated cutting machine

Tungsten carbide oscillating blade
Designed for very rigid materials
Maximum cutting depth: 4 mm
0.63 mm flat blade thickness
45° / 80° geometry for precision cutting
Ideal for small radii
Compatible with EOT and POT systems

Description
Related Products

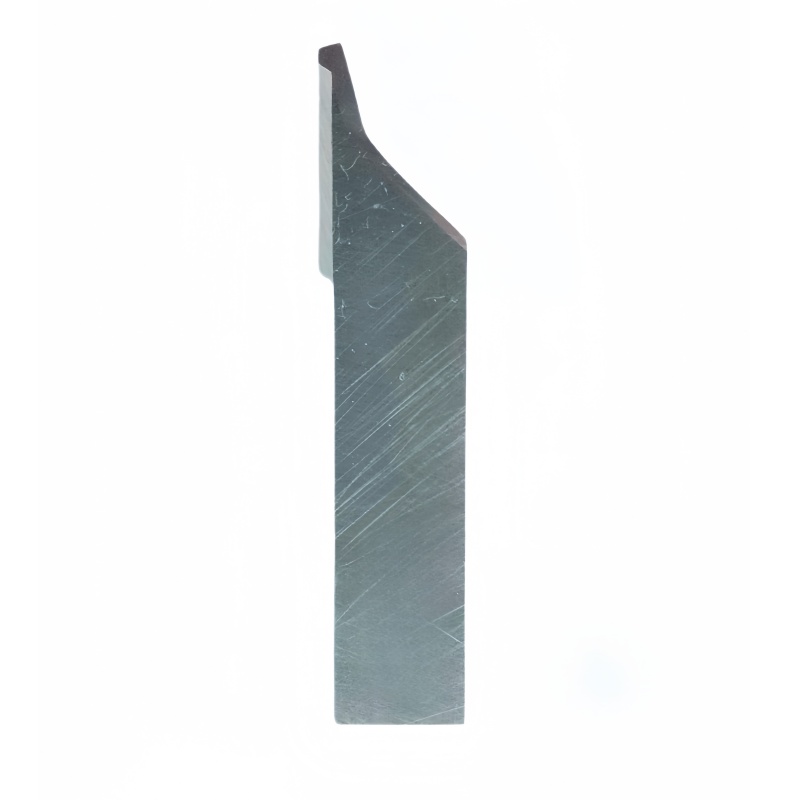

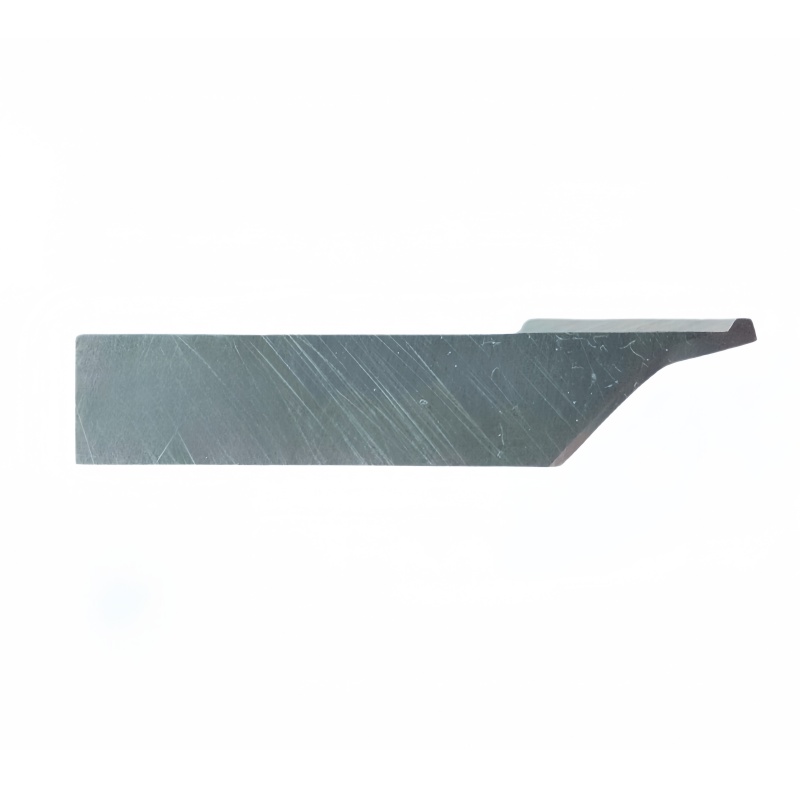

ATOM 01045232 Carbide Oscillating Knife Blade for Rigid Materials

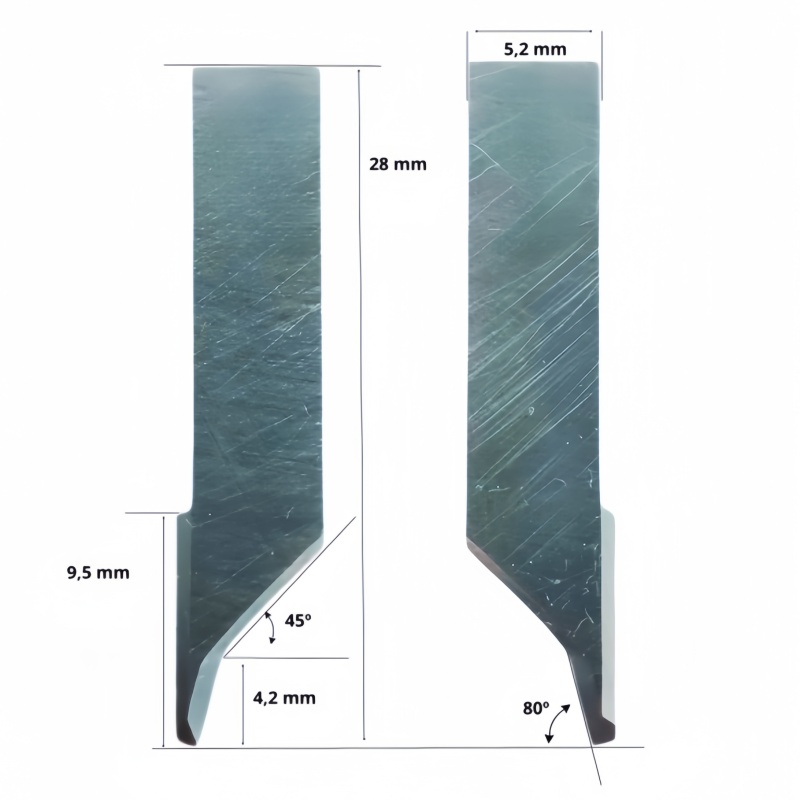

Technical Specifications

Specification	Details
Model	ATOM 01045232
Equivalent	01045232 / HTA-45232
Blade Type	Oscillating Knife
Thickness	0.63 mm
Max Cutting Depth	4 mm
Geometry	45° / 80°
Composition	Tungsten Carbide (HM – Hard Metal)
Tool Type	EOT / POT
Compatible Brand	Atom

The ATOM 01045232 carbide oscillating knife blade is engineered for precision cutting of very rigid and dense materials in industrial automated cutting systems.

Manufactured from tungsten carbide (HM hard metal), this blade provides exceptional rigidity and wear resistance, ensuring stable performance even when processing reinforced or abrasive materials.

With a 0.63 mm thickness and a maximum cutting depth of 4 mm, the 01045232 is optimized for:

Reinforced graphite
Non-asbestos gasket materials
Hard leather
Other very rigid substrates

The 45° / 80° cutting geometry enables accurate contour cutting and reliable performance in small-radius applications, reducing edge chipping and material tearing.

The blade is compatible with both:
