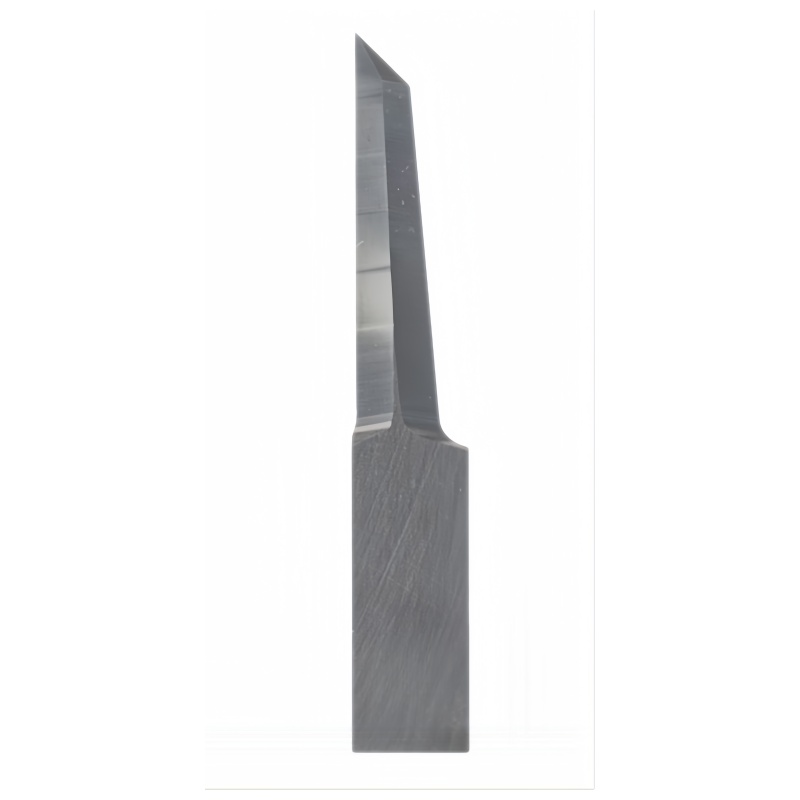

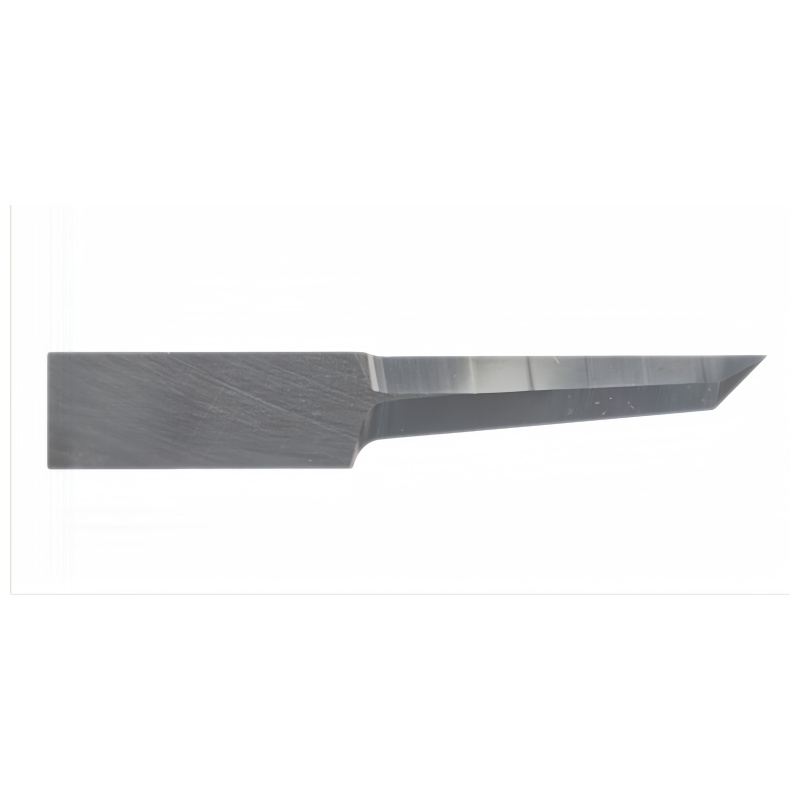

HV1600 oscillating knife blade
Designed for foam and rubber
Suitable for thickness up to 18 mm
Double sharpening for longer blade life
Stable cutting at high oscillation speeds
Ideal for soft and semi-elastic materials
Technical Specifications
| Specification | Details |
|---|---|
| Model | ATOM 01045284 |
| Original No. | 01045284 |
| Knife Type | Oscillating Blade |
| Blade Material | Tungsten Carbide (HV1600) |
| Max Cutting Thickness | 18 mm |
| Sharpening | Double sharpening |
| Application | Foam & Rubber Cutting |
The ATOM 01045284 HV1600 oscillating knife blade is designed for cutting foam and rubber materials up to 18 mm thickness.
Manufactured from high-performance HV1600 tungsten carbide, this blade provides excellent rigidity and wear resistance, ensuring stable cutting performance in demanding production environments.
Featuring a double sharpening design, the blade offers improved edge durability and extended service life, making it ideal for continuous industrial cutting operations.
The 01045284 is especially suitable for:
-
Industrial foam sheets
-
EVA foam
-
Rubber materials
-
Packaging foam
-
Cushioning materials
Its geometry enables smooth vertical cutting with minimal material deformation, even in thicker soft materials.
Applications
-
EVA foam processing
-
Rubber sheet cutting
-
Automotive insulation materials
-
Packaging cushioning materials
-
Industrial soft material conversion
-
