Technical Specifications

Specification	Details
Model	ATOM 01046658
System	HV2000
Blade Type	Oscillating Knife
Angle	11°–15° with drain
Offset / Overcut	1–2.2 mm
Max Thickness	3 mm
Applications	Texon, fiber board, asbestos-free cardboard
Compatible Systems	Atom HV2000 Flashcut

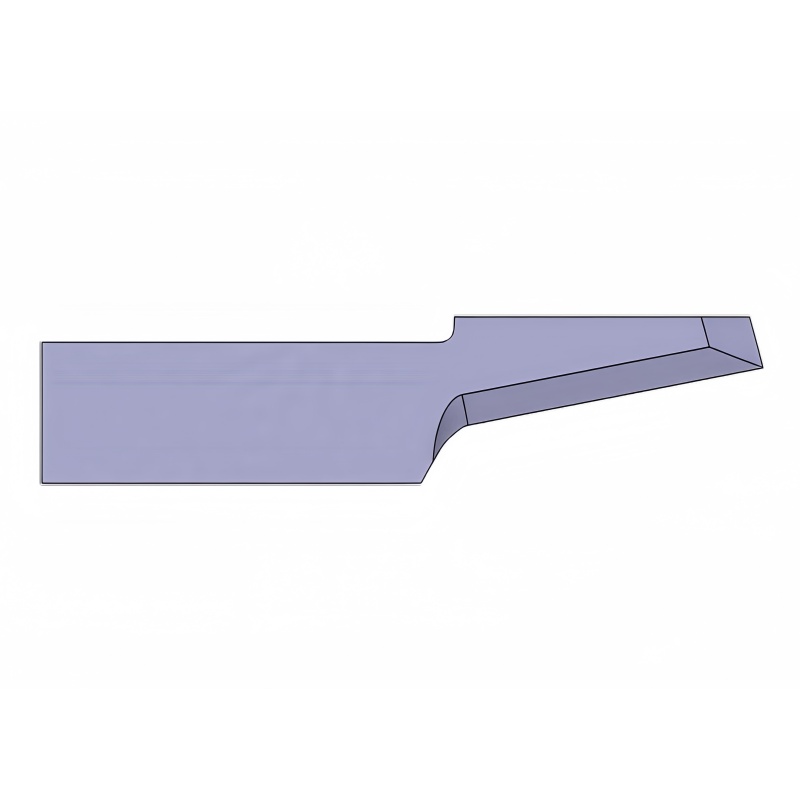

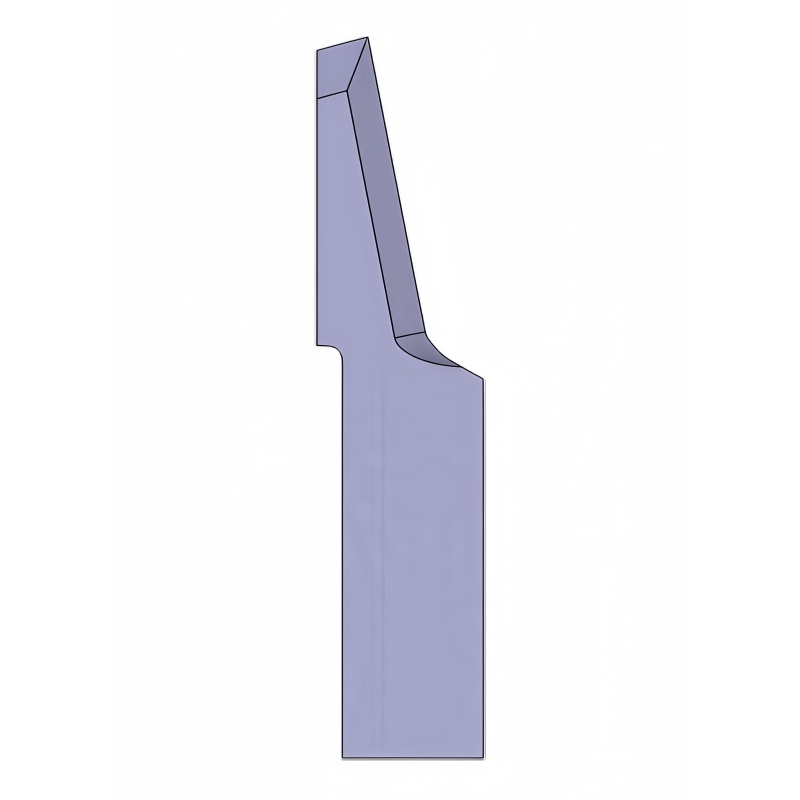

The ATOM 01046658 (HV2000) oscillating knife blade is designed for high-speed precision cutting of thin rigid materials in industrial and footwear production.

This blade is ideal for Texon sheets, fiber board, and asbestos-free cardboard, with thicknesses up to 3 mm, making it perfect for high-speed applications requiring clean cuts.

The 11°–15° cutting angle with drain allows efficient material removal and stable cutting performance. The offset-overcut range of 1–2.2 mm ensures precise contour cutting and clean edges.

Fully compatible with Atom HV2000 Flashcut systems, this blade is engineered for durability and high-speed operation.
