Atom 01047108 (Hv1600) Flashcut Knife Blade Tools For Atom Digital Cutter Cutting Systems

Designed for hard synthetic materials

Suitable for Kevlar reinforced rubber

Maximum cutting thickness up to 23 mm

Optimized 0°–4°30 cutting geometry

Suitable for wide radius cutting

Request A Quote

Description
Related Products

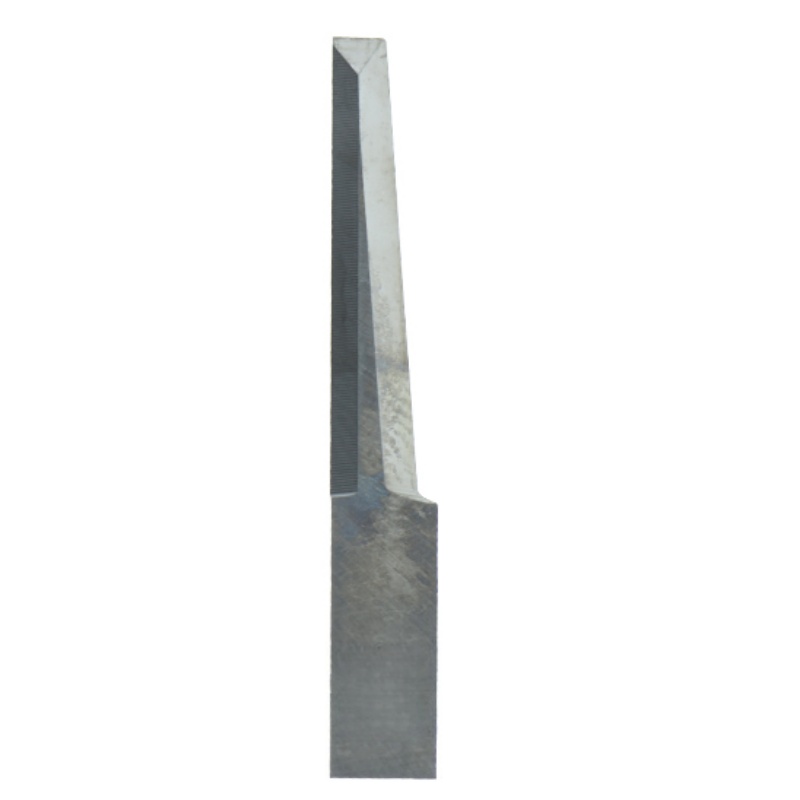

ATOM 01047108 HV1600 Flashcut Oscillating Knife Blade

Technical Specifications

Specification	Details
Model	ATOM 01047108
System	HV1600
Blade Type	Oscillating Knife
Angle	0°–4°30
Offset / Overcut	0–2.5 mm
Max Cutting Thickness	23 mm
Applications	Synthetic materials, Kevlar reinforced rubber
Compatible Systems	Atom Flashcut

The ATOM 01047108 (HV1600) oscillating knife blade is designed for cutting hard synthetic materials and reinforced rubber, including materials with Kevlar cores.

With the ability to process materials up to 23 mm thick, this blade is ideal for demanding industrial cutting applications where durability and cutting stability are required.

The blade features a 0°–4°30 cutting angle, optimized for processing hard and reinforced materials, while maintaining clean cutting edges. Its wide radius cutting capability allows efficient cutting of large curves and structural components.

Manufactured for high durability and consistent performance, the 01047108 blade is fully compatible with digital cutting systems from Atom.
