Designed for foam and rubber materials
Rear sharpening blade design
Optimized oscillating cutting geometry
Suitable for industrial automated cutting systems

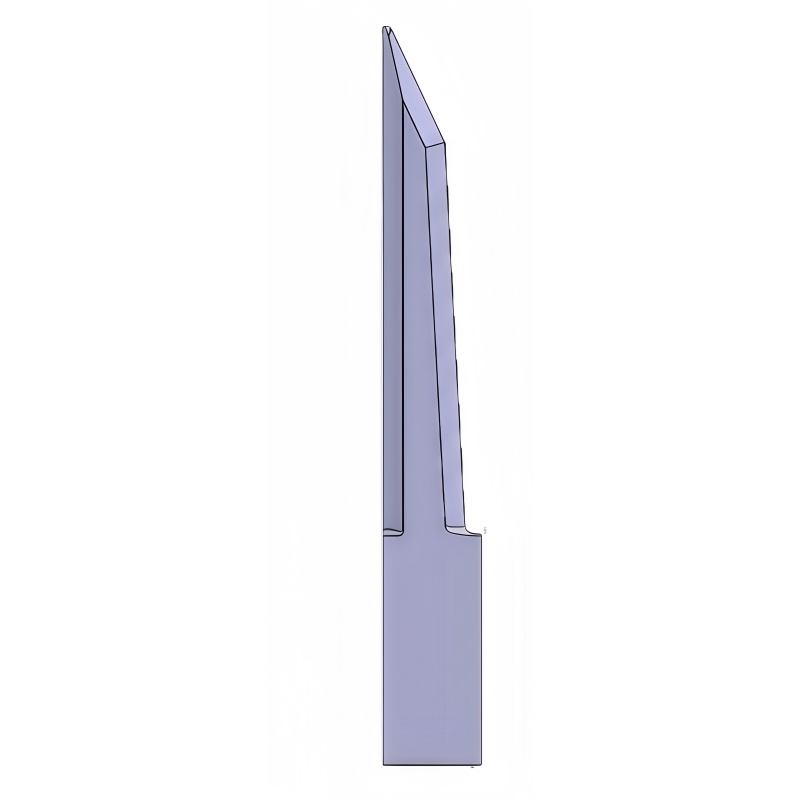

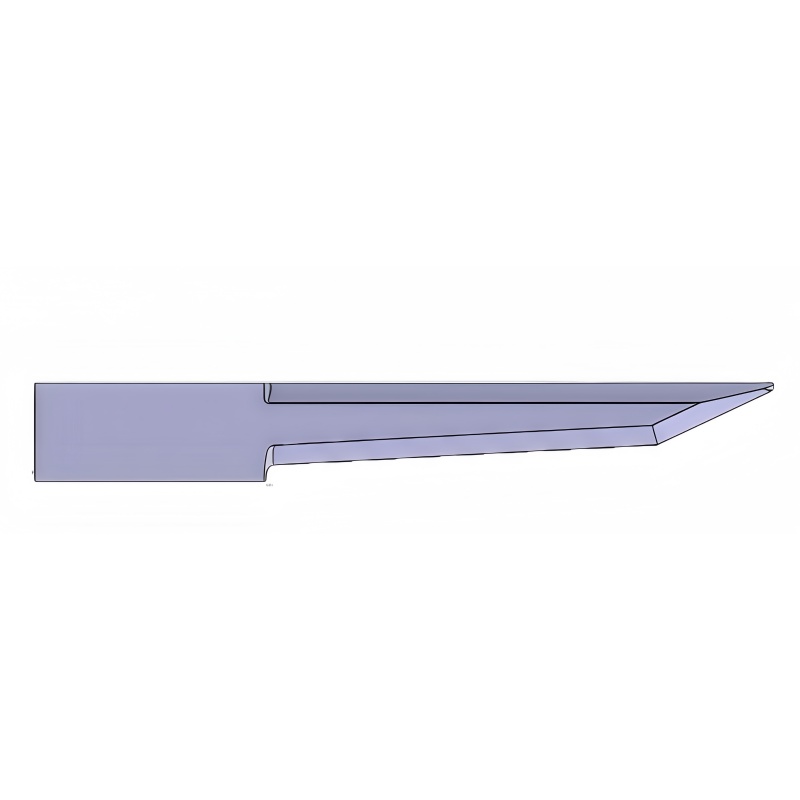

ATOM 01049773 HV1600 Flashcut Oscillating Knife Blade
Technical Specifications
| Specification | Details |
|---|---|
| Model | ATOM 01049773 |
| System | HV1600 |
| Blade Type | Oscillating Knife |
| Angle | 3°–25°–10° |
| Offset / Overcut | 0–2.5 mm |
| Max Cutting Thickness | 34 mm |
| Recommended Materials | Foam, Rubber |
| Compatible Systems | Atom Flashcut |
The ATOM 01049773 (HV1600) oscillating knife blade is designed for deep cutting of soft and elastic materials used in industrial production.
This blade is particularly suitable for cutting foam and rubber materials up to 34 mm thick, making it ideal for applications that require deep and precise cutting performance.
The blade features a rear sharpening design, which improves cutting efficiency and ensures stable performance when processing thick compressible materials.
With an optimized 3°–25°–10° cutting angle and offset-overcut adjustment from 0 to 2.5 mm, the blade provides clean cutting edges and reliable operation in automated cutting environments.
It is fully compatible with digital cutting systems manufactured by Atom.
-
