HV1600 tungsten carbide blade
High cutting speed performance
Supports small radius cutting (2.5 mm)
Designed for footwear sole applications
Stable oscillation and long tool life
Precision cutting for fiber-based materials
Technical Specifications
| Specification | Details |
|---|---|

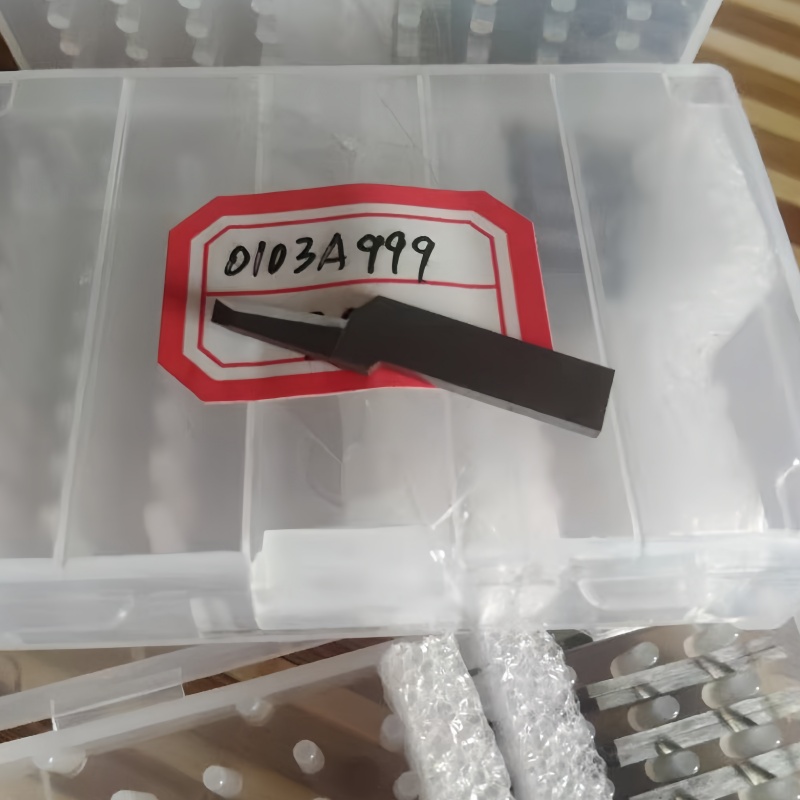

| Model | ATOM 0103A999 |
| Original No. | 0103A999 |
| Knife Type | Oscillating Blade |
| Blade Material | Tungsten Carbide (HV1600) |
| Cutting Depth | 6 mm |
| Cutting Angle | 11°–15° |
| Min. Radius | 2.5 mm |

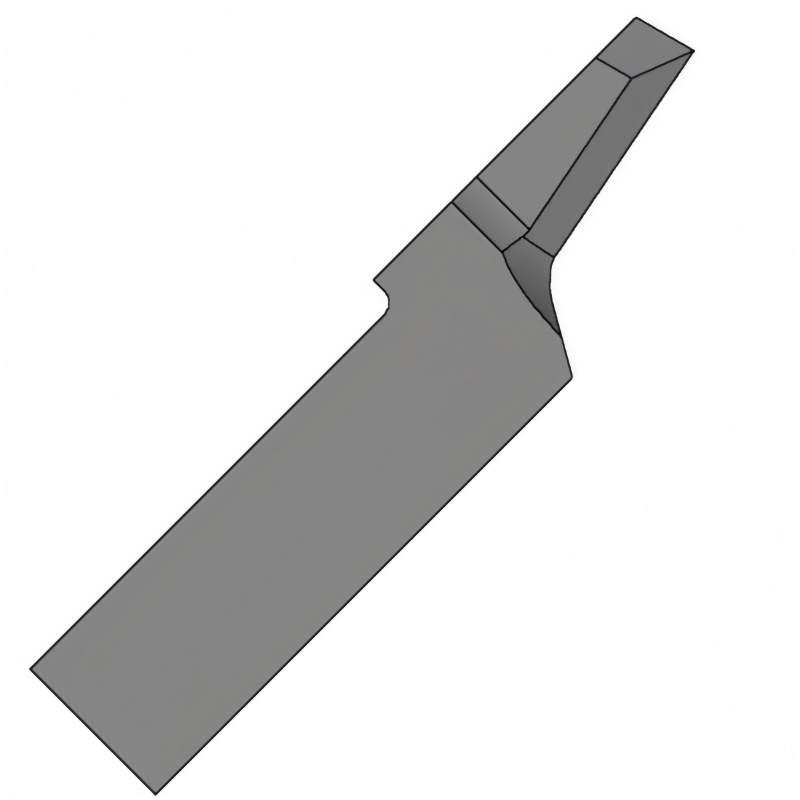

The ATOM 0103A999 HV1600 oscillating knife blade is engineered for high-speed precision cutting in footwear and industrial applications.
Manufactured from tungsten carbide (HV1600 grade), this blade provides excellent rigidity, edge retention, and long service life in demanding production environments.
With a cutting depth of 6 mm and a cutting angle range of 11°–15°, the blade is optimized for processing:
-
Texon
-
Fiber board
-
Sole leather up to 6 mm thickness
Its geometry enables accurate cutting of small radii down to 2.5 mm, making it ideal for detailed contours and tight curves in footwear sole manufacturing.
The ATOM 0103A999 is suitable for high-speed oscillating cutting systems and offers stable performance even during continuous production.
-
