iEcho Flatbed Cutting Machine E23 Oscillating Knife Blade|Manufacturer of Carbide Knives & Blades

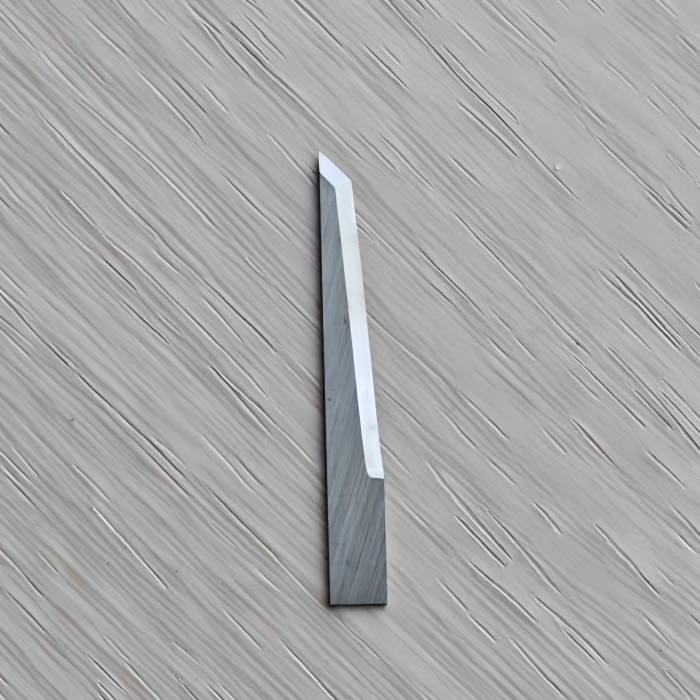

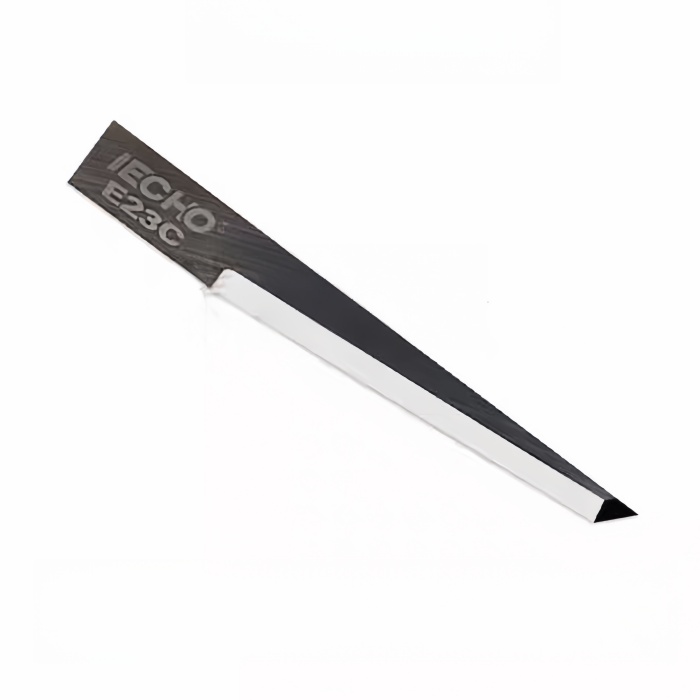

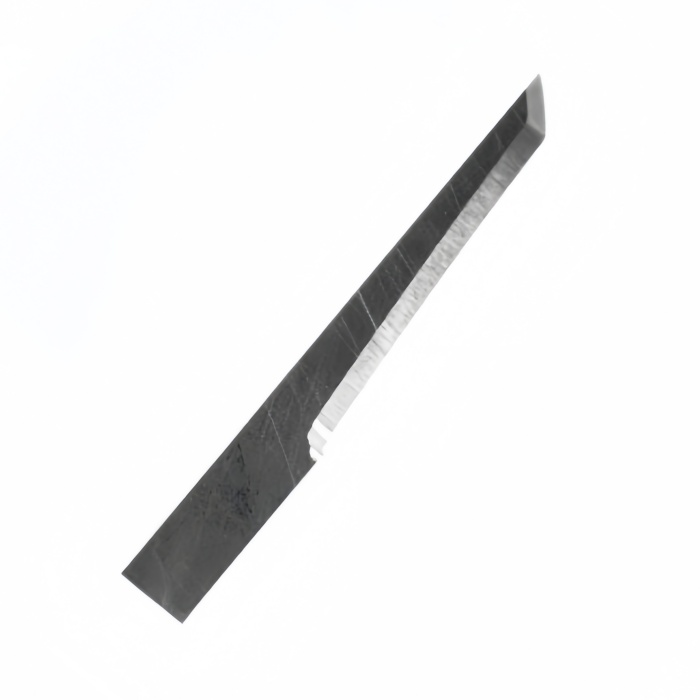

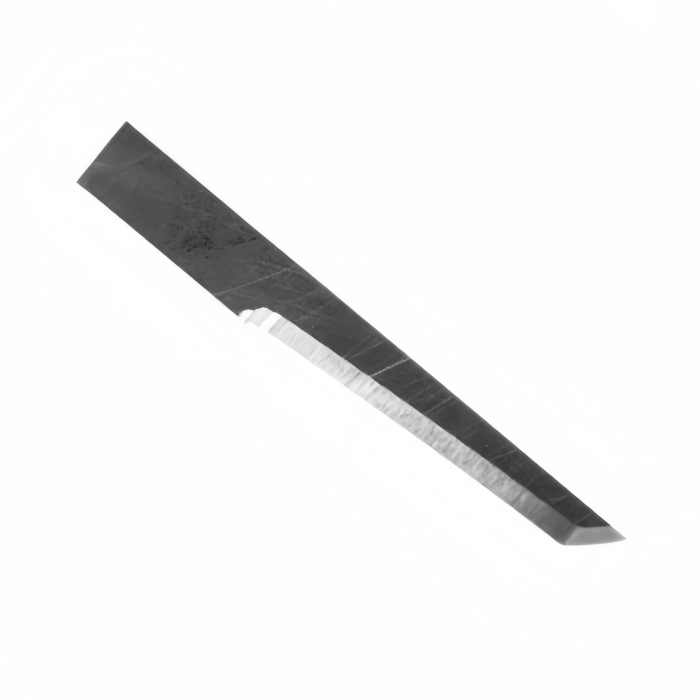

iEcho E23C Oscillating Knife Blade for iEcho Digital Cutter / Flatbed Cutting Machine – Replacement

Compatible with iEcho digital cutters and automated oscillating knife systems

Equivalent to OEM blades: E23 / Z23 / HTZ-023

Fine, long blade ideal for cutting small radii and intricate shapes

0.63 mm flat mount for secure and stable installation

Supports cutting depths up to 21 mm

Made of tungsten carbide for superior wear resistance and long-lasting sharpness

Works with EOT and POT oscillating cutting tools

Excellent for foam, insulation materials, rubber, corrugated plastic, and sandwich board

Request A Quote

Description
Related Products

Product Specification Sheet

Item	Specification
Cutter Brand	iEcho
Model	E23C (Equivalent: E23 / Z23 / HTZ-023)
Knife Type	Fine, Long Blade; Flat Oscillating Blade
Angle	33 mm
Knife Height	24 mm
Knife Width	4.0 mm
Thickness	0.63 mm
Max. Cutting Depth	21 mm
Pre-cut	1.8 + 0.1 × Tm

Knife/Blade Mounting	Flat 0.63 mm
Composition	Tungsten Carbide / Hard Metal (HM)
Tools	EOT (Electric Oscillating Tool), POT 1.5 (Pneumatic Oscillating Tool)
Recommended Materials	Corrugated plastic, Foam, Folding carton, Insulating mat, Rubber, Sandwich board
Associated Raw Material Brands	Divinycell, Rohacell
Replacement	Yes

Product Description

The iEcho E23C Oscillating Knife Blade is a high-precision fine blade designed for detailed cutting tasks on iEcho automated cutting systems. Equivalent to the E23, Z23, and HTZ-023 models, this blade features a long, thin profile that excels at tight curves, small radii, and intricate contour work.

Built with a 0.63 mm flat mounting interface and manufactured from tungsten carbide (hard metal), the E23C delivers exceptional hardness, long tool life, and minimal wear, even when cutting abrasive or high-density materials.

With a maximum cutting depth of 21 mm, the blade is suitable for both thick and lightweight materials, offering outstanding performance in foam processing, insulation materials, sandwich panels, corrugated plastics, and rubber products.

Compatible with both EOT (Electric Oscillating Tool) and POT (Pneumatic Oscillating Tool), the E23C integrates seamlessly into iEcho oscillating knife modules for high-frequency, precision cutting applications.
