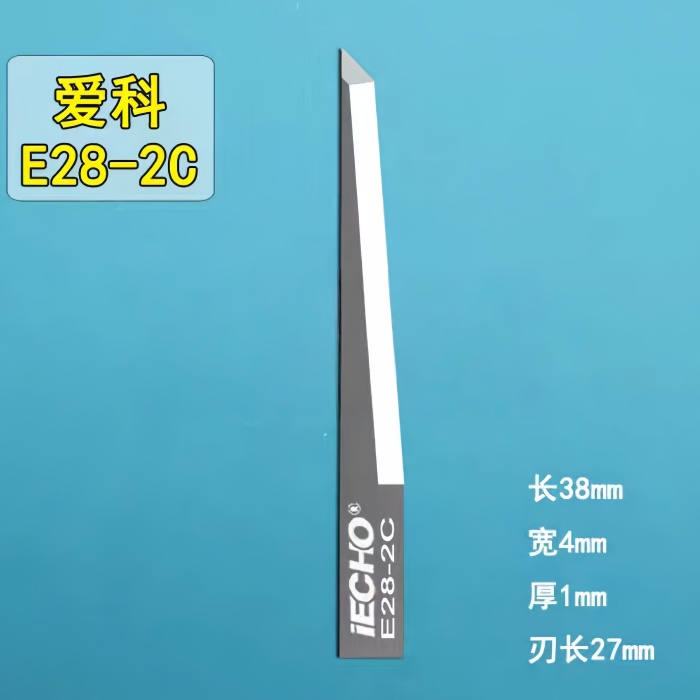

iEcho E28L / E28-2C Oscillating Knife Blade – Tungsten Carbide CNC Replacement Blade for iEcho Flatbed Cutting Machines

Compatible with iEcho E28L, E28-2C, and Cutworx Apex CWX/CWT E28L

Long 38 mm blade height for deep material penetration

Thick 1.00 mm construction for high rigidity and reduced blade deflection

Suitable for cutting thick or rigid materials such as foam board, insulation, and composite layers

Tungsten carbide composition ensures superior hardness and extended blade life

OEM-compatible replacement blade for industrial flatbed cutting machines

Request A Quote

Description
Related Products

Product Specification Sheet

Item	Specification
Cutter Brand	iEcho / Cutworx
Model	E28L / E28-2C
Knife Type	Oscillating blade
Angle	45° / 86°
Knife Height	38.00 mm
Thickness	1.00 mm
Max. Cutting Depth	24.00 mm
Knife/Blade Mounting	Flat 1 mm
Suitable Machine Manufacturers	Cutworx Apex CWX/CWT E28L, iEcho E28L / E28-2C
Replacement	Yes

Product Description

The iEcho E28L / E28-2C Oscillating Knife Blade is a long-reach, heavy-duty carbide blade engineered for digital cutters and flatbed CNC cutting machines. With a 1 mm flat mounting interface, a 38 mm blade height, and a deep 24 mm cutting depth, this blade is optimized for processing thick, rigid, and high-density materials with superior stability.

Designed with dual cutting angles of 45° and 86°, the E28L delivers strong penetration combined with precise contouring performance. The blade’s robust 1.00 mm thickness ensures improved rigidity during high-frequency oscillation, reducing vibration and maintaining consistent cutting accuracy even under demanding industrial workloads.

Manufactured from premium tungsten carbide, the E28L/E28-2C offers long-lasting edge sharpness and outstanding wear resistance—ideal for high-volume production environments.

This blade is fully compatible with iEcho E28L / E28-2C systems as well as Cutworx Apex CWX/CWT machines, making it a reliable OEM-equivalent replacement for packaging, signage, insulation, and industrial material processing.
