iEcho E73 V-Cut Replacement Knife Blade|Manufacturer of Carbide Knives & Blades

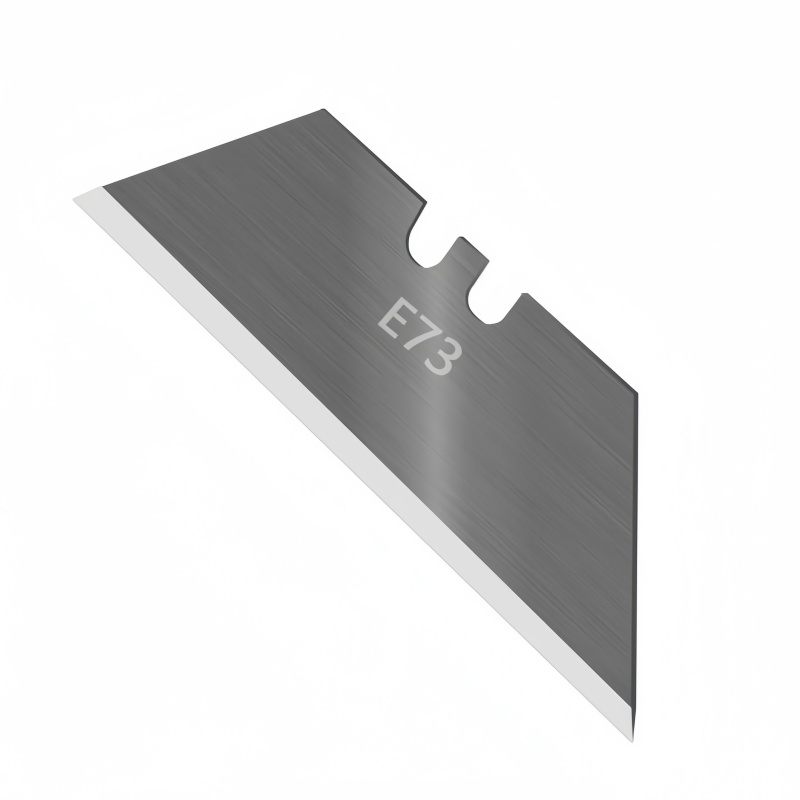

iEcho E73 V-Cut Replacement Knife Blade for iEcho & Zünd Flatbed CNC Cutting Machines

V-cut knife blade for automated cutting machines
iEcho E73 blade made from wear-resistant tungsten carbide
54 mm blade length with up to 18.2 mm cutting depth
33° cutting angle for clean V-grooves and folding lines
Suitable for foam board, magnetic foil, leather, carpet, rubber, and carton
Compatible with iEcho E73 and Zünd Z73 oscillating tool systems
OEM-compatible replacement blade for E73 / Z73 systems

Description
Related Products

Product Specification Sheet

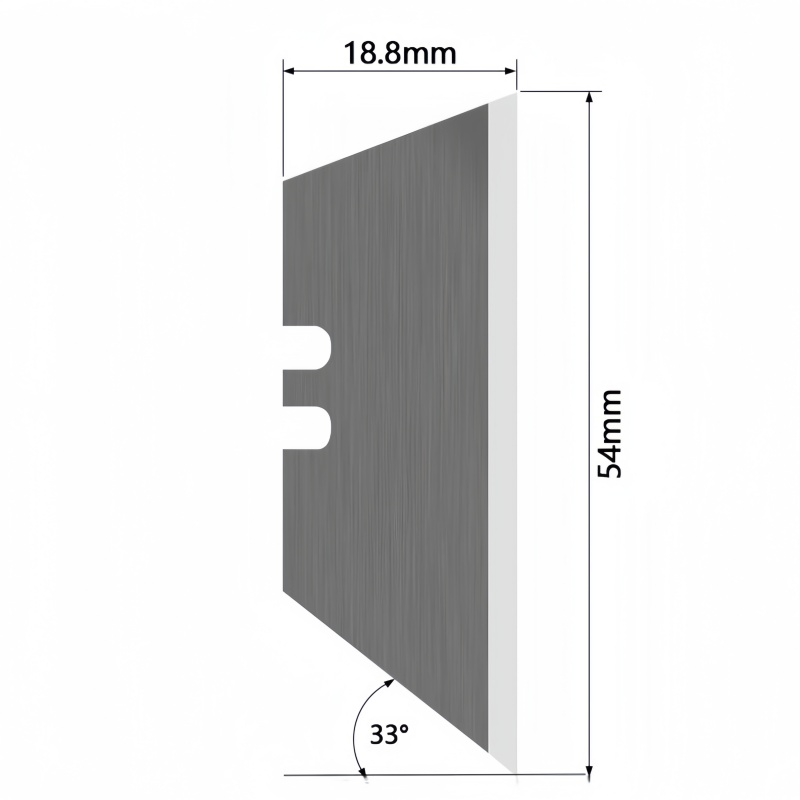

Item	Specification
Cutter Brand	iEcho
Model	E73
Knife Type	V-Cut, Oscillating Knife Blade
Total Length (Knife Height)	54.00 mm
Knife Width	18.80 mm
Thickness	0.63 mm
Angle	33°
Max. Cutting Depth	18.20 mm
Material	Tungsten Carbide
Compatible Machines	iEcho E73, Zünd Z73
Suitable Materials	Magnetic foil, Canvas, Polyester, Carton, XPE foam, Foam board, Leather, Carpet, Rubber
Replacement	Yes

Product Description

The iEcho E73 V-Cut Oscillating Knife Blade is a tungsten carbide oscillating V-cut blade developed for automated digital cutting machines, including iEcho E73 and Zünd Z73 flatbed CNC systems. As a precise oscillating knife blade replacement, the E73 is designed for applications requiring accurate V-cut geometry and stable oscillating performance across a wide range of materials.

With a 54 mm total blade length and a maximum cutting depth of up to 18.2 mm, this V-cut oscillating knife blade is suitable for medium-thickness material processing. The 33° cutting angle enables clean groove formation and smooth material penetration, supporting accurate folding lines and shaped contours.

Manufactured from tungsten carbide, the iEcho E73 blade provides excellent wear resistance and consistent cutting accuracy during oscillating motion. Its 0.63 mm blade thickness and 18.8 mm blade width help maintain cutting stability when processing both soft and semi-rigid materials.

This oscillating V-cut knife blade is widely used for cutting magnetic foil, foam board, XPE foam, carton, leather, carpet, rubber, canvas, and polyester, making it suitable for packaging, signage, graphics, insulation, and industrial material processing.
