Specification	Value
Model	Z13
Part Number	3910305
Mounting	Flat 1.5 mm
Angle	60°
Max. Cutting Depth	6.90 mm
Knife Height	50.00 mm
Knife Width	8.00 mm
Thickness	1.50 mm
Material Compatibility	Canvas, Cardboard, Foil, Footwear materials, Gasket materials, Hard foam, Hard plastic, Magnetic foil, Paper, Plastic, Polycarbonate, Polyester fabric, PVC, Self-adhesive foil, Sole material, Tarpaulin

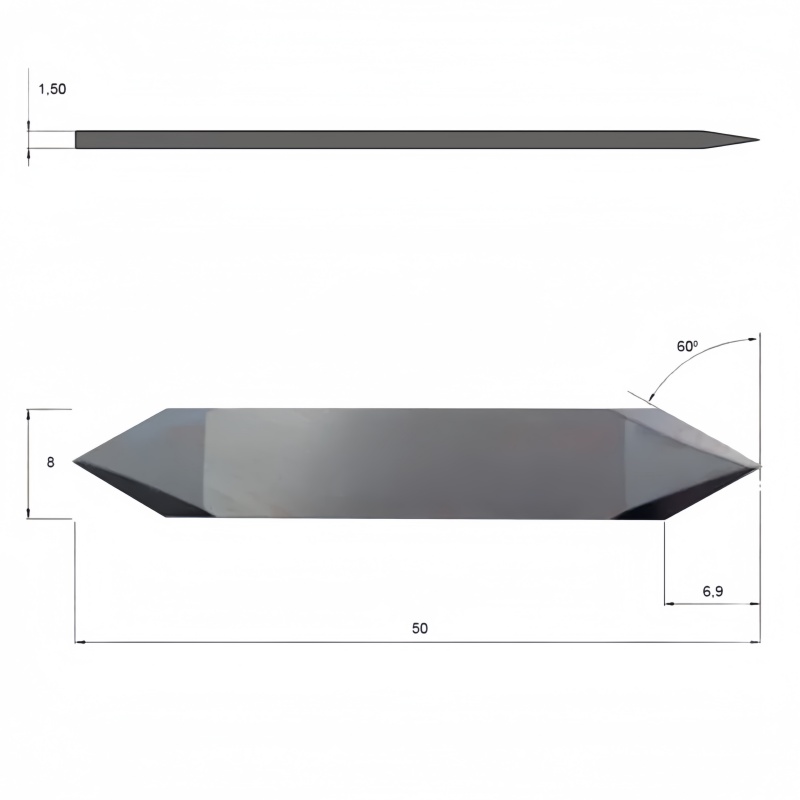

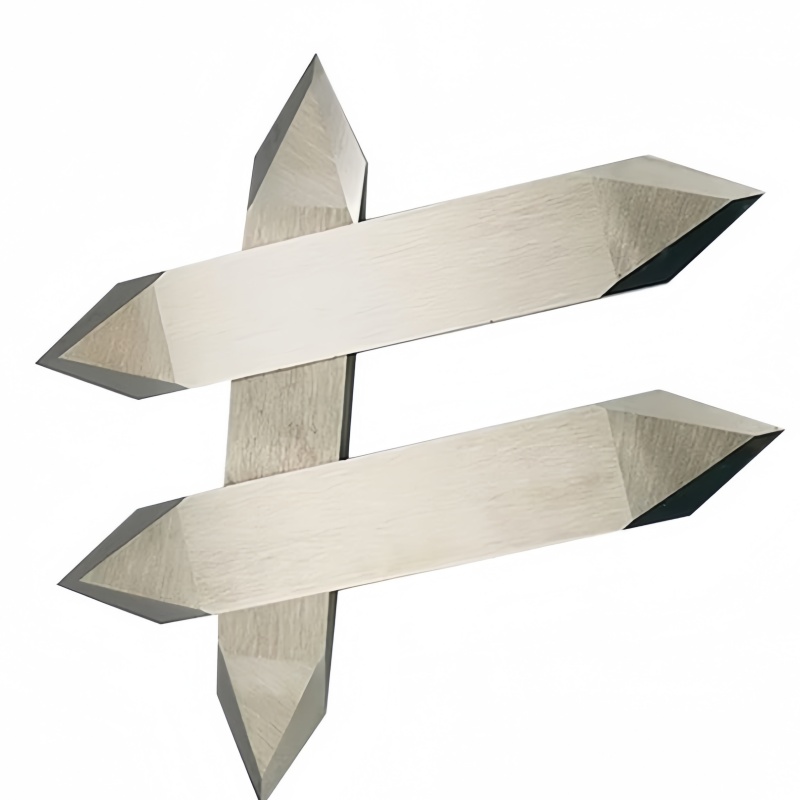

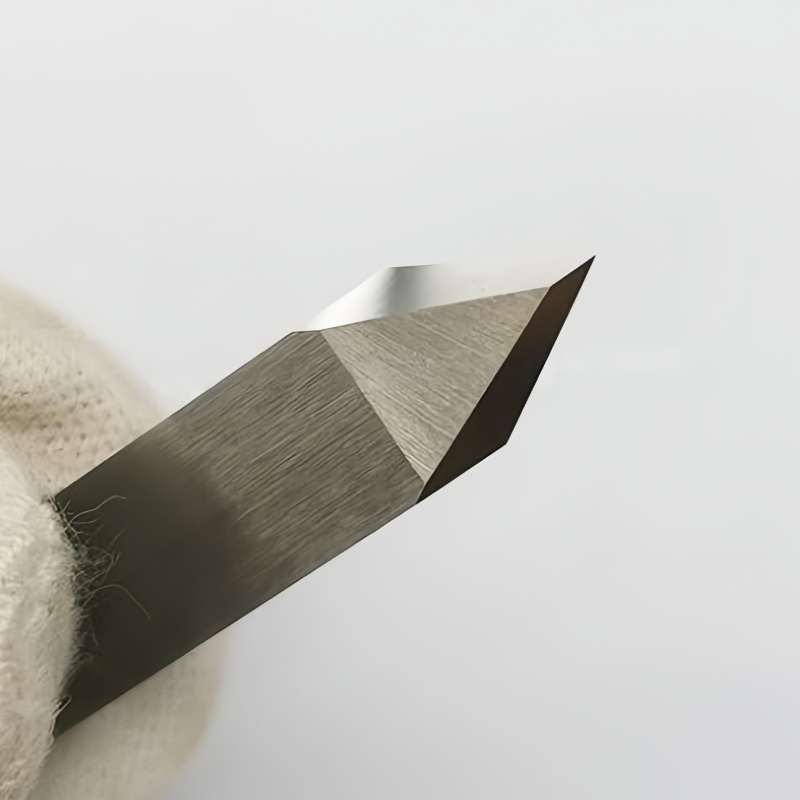

Product Description: The Z13 (Part Number: 3910305) is a replacement double-sided drag blade manufactured from high-grade tungsten carbide, specifically engineered for compatibility with Zund, Lectra MFC, and Humantec digital cutting systems. This flat drag knife features a 60° cutting angle and a symmetrical double-sided edge, extending tool life and providing high-precision performance for both through-cutting and kiss-cut applications. It utilizes a 1.5 mm flat mounting interface and accommodates a maximum cutting depth of 6.90 mm. The physical dimensions consist of a 50.00 mm height, an 8.00 mm width, and a 1.50 mm thickness. It is technically specified for processing a broad range of substrates, including gasket materials, hard plastics, footwear components, and various technical textiles and self-adhesive foils.

Zund OEM-Quality tungsten carbide Blades at Wholesale Prices

Thick material processing shouldn't mean paying exorbitant prices for consumables. Our compatible  blades are strictly manufactured to meet or exceed original equipment standards, providing exceptional durability and edge retention at a fraction of the cost.
Large inventory available for immediate worldwide shipping.
