Specification	Value
Model	Z10
Part Number	3910301
Mounting	Flat 1.5 mm
Angle	50°
Max. Cutting Depth	4.80 mm
Knife Height	50.00 mm
Knife Width	8.00 mm
Thickness	1.50 mm
Material Compatibility	Canvas, Cardboard, Foil, Footwear materials, Gasket materials, Hard foam, Hard plastic, Magnetic foil, Paper, Plastic, Polycarbonate, Polyester fabric, PVC, Self-adhesive foil, Sole material, Tarpaulin

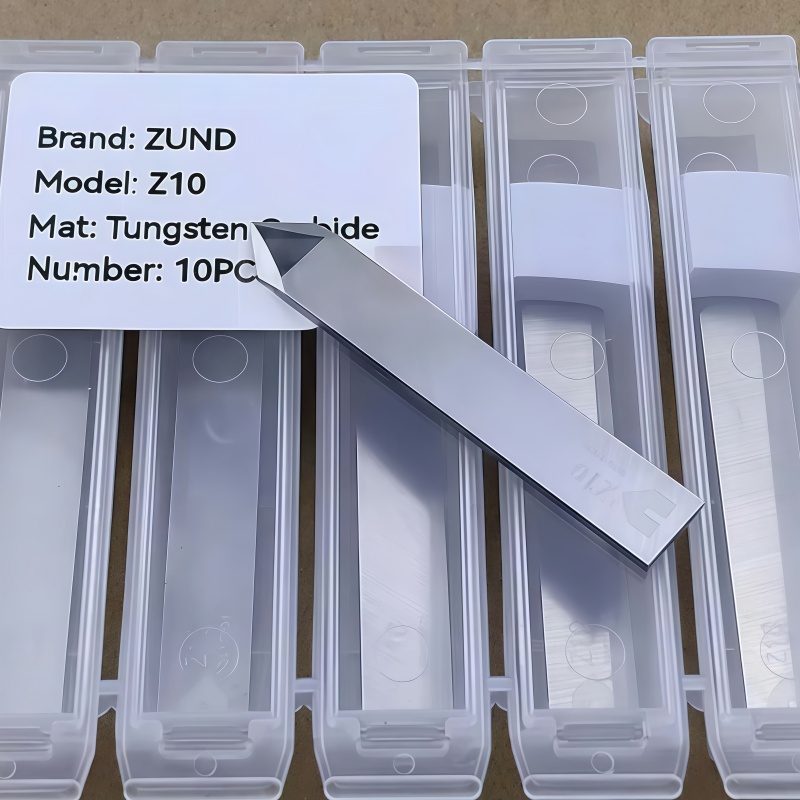

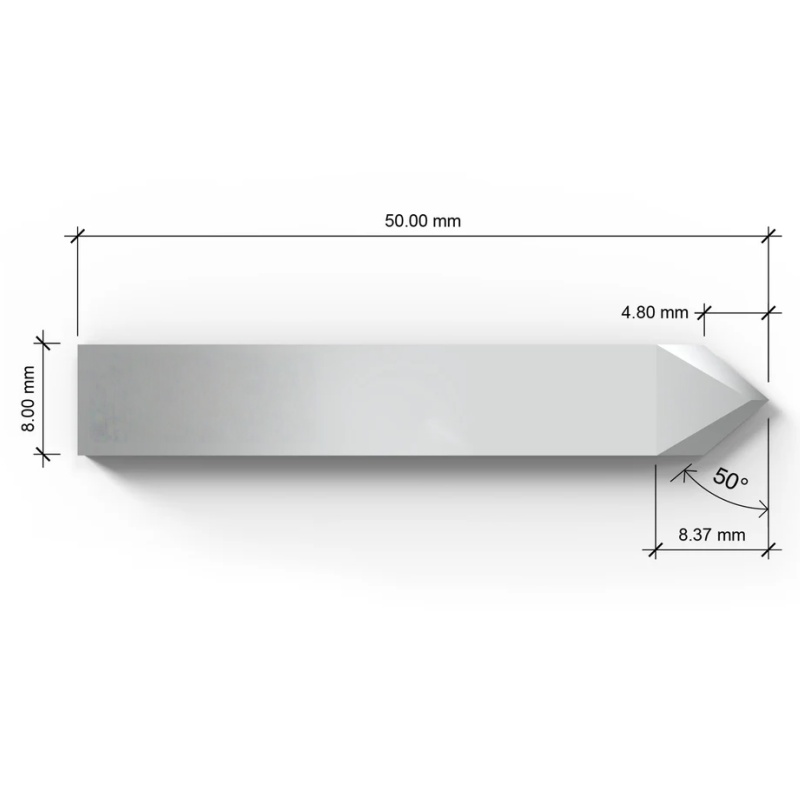

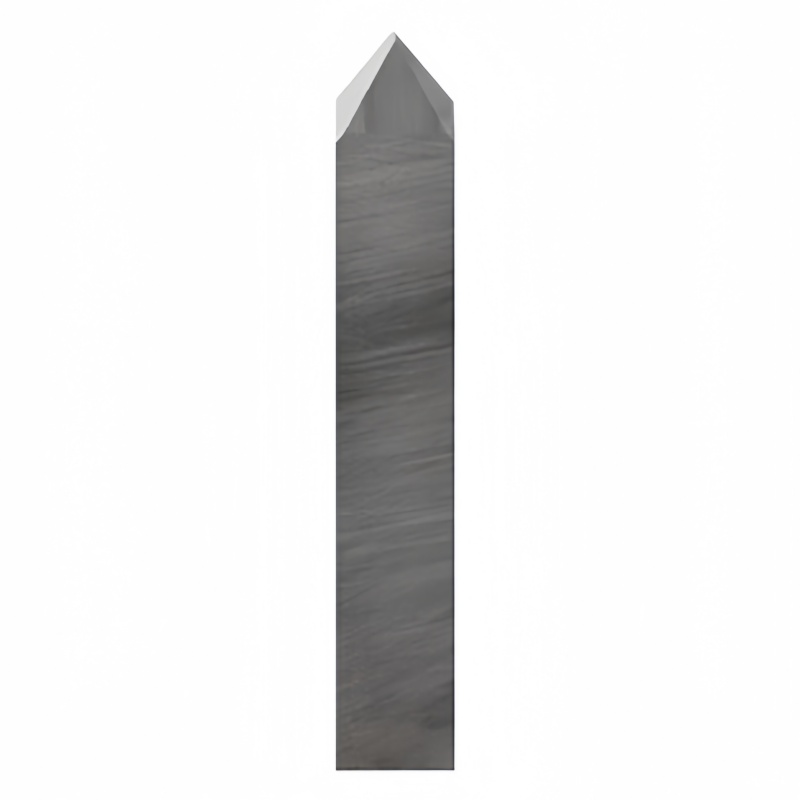

The Z10 (Part Number: 3910301) is a replacement two-way drag knife manufactured from high-grade tungsten carbide, engineered for compatibility with Zund, Lectra MFC, and Humantec digital cutting systems. This flat drag knife features a 50° cutting angle and is uniquely designed as a two-way blade to optimize cutting efficiency. It utilizes a 1.5 mm flat mounting interface and accommodates a maximum cutting depth of 4.80 mm. The physical dimensions consist of a 50.00 mm height, an 8.00 mm width, and a 1.50 mm thickness. It is technically specified for processing a broad range of substrates, including gasket materials, hard plastics, footwear/sole materials, and various technical textiles and foils.

Zund OEM-Quality tungsten carbide Blades at Wholesale Prices

Thick material processing shouldn't mean paying exorbitant prices for consumables. Our compatible  blades are strictly manufactured to meet or exceed original equipment standards, providing exceptional durability and edge retention at a fraction of the cost.
Large inventory available for immediate worldwide shipping.
Contact our technical sales engineers today for volume discounts or material compatibility advice:
📩 Email: [info@hengrui-knives.com ]
👉 Request a Bulk Quote Blades
