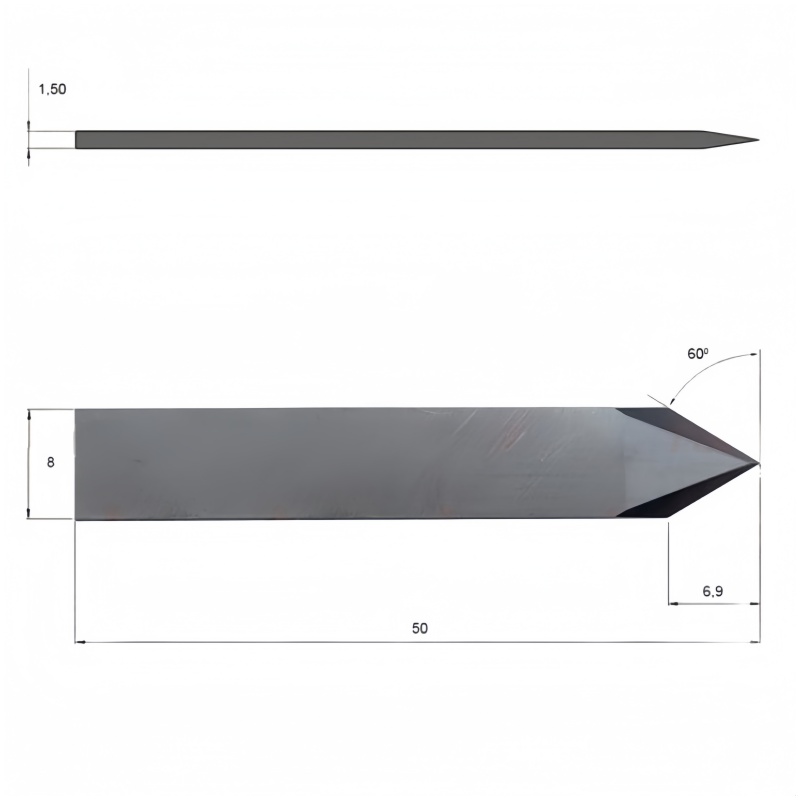

Specification	Value
Model	Z11
Part Number	3910309
Mounting	Flat 1.5 mm
Angle	60°
Max. Cutting Depth	6.90 mm
Knife Height	50.00 mm
Knife Width	8.00 mm
Thickness	1.50 mm
Material Compatibility	Canvas, Cardboard, Foil, Footwear materials, Gasket materials, Hard foam, Hard plastic, Magnetic foil, Paper, Plastic, Polycarbonate, Polyester fabric, PVC, Self-adhesive foil, Sole material, Tarpaulin

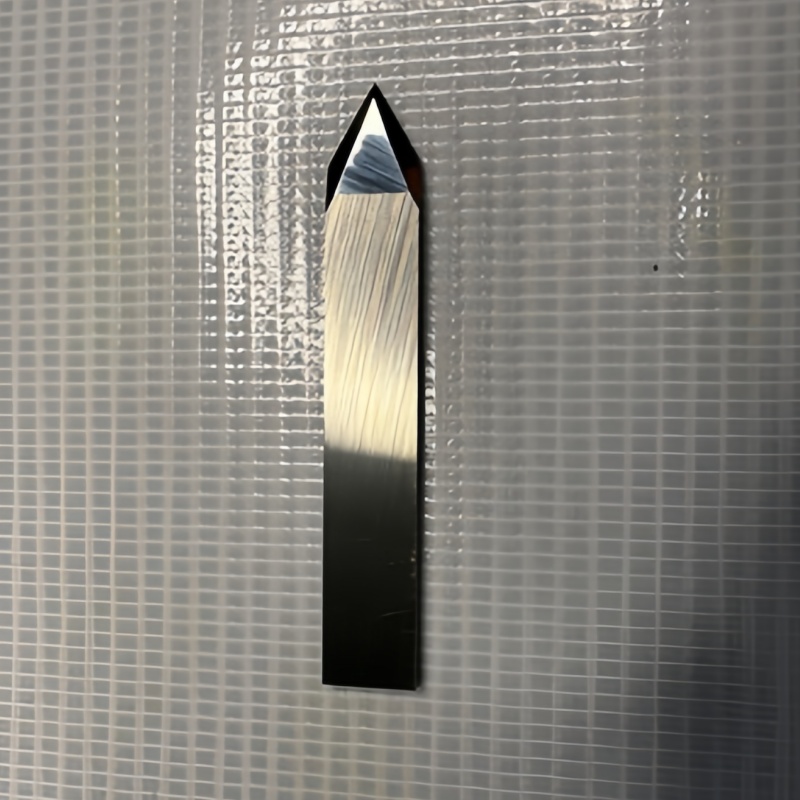

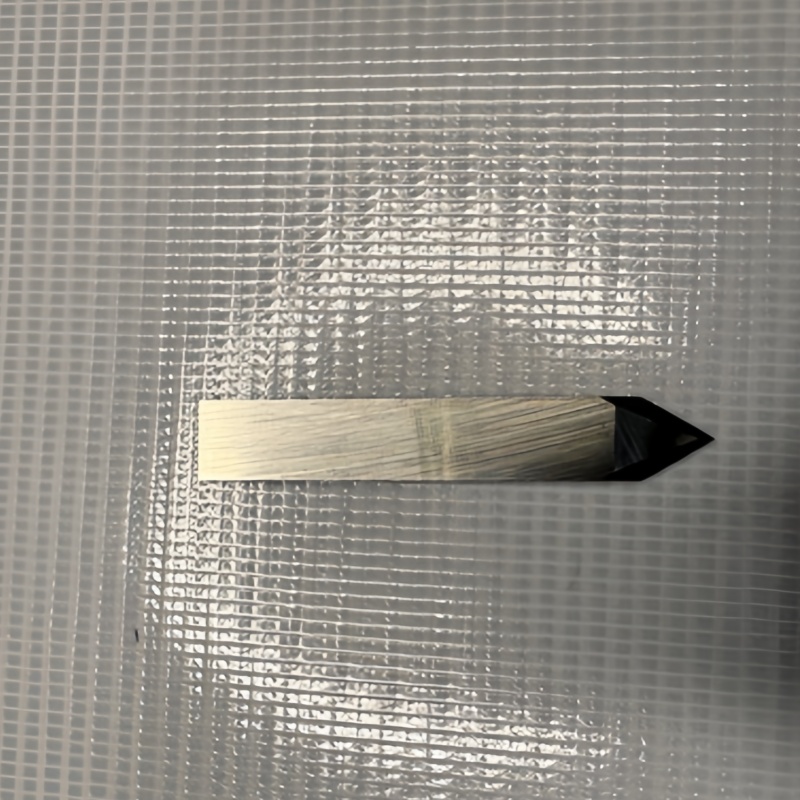

Product Description: The Z11 (Part Number: 3910309) is a replacement drag knife manufactured from high-grade tungsten carbide, specifically engineered for compatibility with Zund S3, Lectra MFC, and Humantec digital cutting systems. This flat drag knife features a 60° cutting angle, providing a balance between precision and strength, making it suitable for both standard through-cutting and kiss-cut applications. It utilizes a 1.5 mm flat mounting interface and accommodates a maximum cutting depth of 6.90 mm. The physical dimensions consist of a 50.00 mm height, an 8.00 mm width, and a 1.50 mm thickness. It is technically specified for processing a broad range of substrates, including gasket materials, hard plastics, footwear materials, and various technical textiles and self-adhesive foils.

Zund OEM-Quality tungsten carbide Blades at Wholesale Prices

Thick material processing shouldn't mean paying exorbitant prices for consumables. Our compatible  blades are strictly manufactured to meet or exceed original equipment standards, providing exceptional durability and edge retention at a fraction of the cost.
Large inventory available for immediate worldwide shipping.
Contact our technical sales engineers today for volume discounts or material compatibility advice:
📩 Email: [info@hengrui-knives.com ]
👉 Request a Bulk Quote Blades
