Atom 0103C999 Flashcut HV1600 Tungsten Carbide Oscillating Knife Blade

Technical Specifications

Product Overview

The Atom 0103C999 Flashcut HV1600 oscillating knife blade is a high-precision tungsten carbide blade developed for high-speed cutting and tight-radius applications on Atom automated cutting machines.

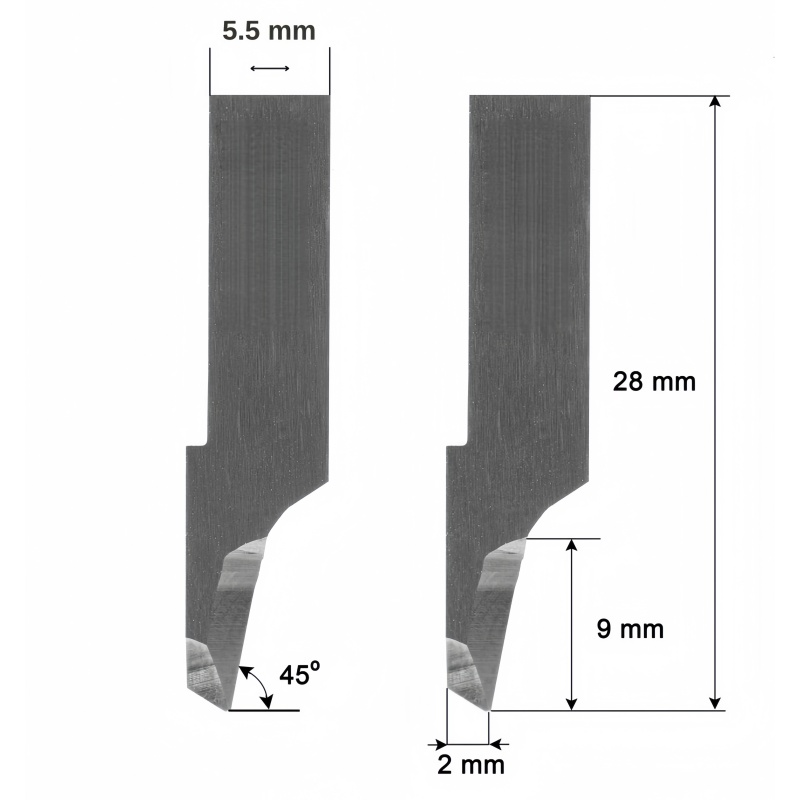

This blade is equivalent to Atom 01039999 and 0103D999 and represents the 1.0 mm thickness version of the HTA-999 blade, offering increased rigidity and improved cutting stability. With a maximum cutting depth of 8 mm and a minimum cutting radius of just 2.5 mm, it is ideal for fine-detail footwear components and technical materials.

Thanks to its hard metal (HM) tungsten carbide composition, the 0103C999 maintains sharpness and accuracy even at high cutting speeds, ensuring clean edges and long tool life.

Recommended Materials

The Atom 0103C999 Flashcut blade is ideal for cutting:

• Texon and insole materials

• Fiber board and reinforcement sheets

• Leather components up to 6 mm

Its small-angle geometry and carbide edge ensure clean penetration, precise contours, and minimal material deformation, even during high-speed operation.

Application Industries

• Footwear and insole manufacturing

• Shoe sole and reinforcement cutting

• Leather footwear components

• CNC digital cutting and automated production lines

Why Choose Atom 0103C999 Flashcut HV1600

Compared to standard HTA-999 blades, the Atom 0103C999 Flashcut HV1600 provides greater rigidity, higher precision, and superior control on tight curves. Its ability to cut small radii down to 2.5 mm at high speeds makes it a premium choice for manufacturers who demand accuracy, productivity, and tool longevity.

Installation & Compatibility

This blade is compatible with Electric Oscillating Tools (EOT) and Pneumatic Oscillating Tools (POT) using a 1.5 mm → 1.0 mm reduction holder.
It works seamlessly with Atom and compatible automated cutting systems, including multiple international brands.
