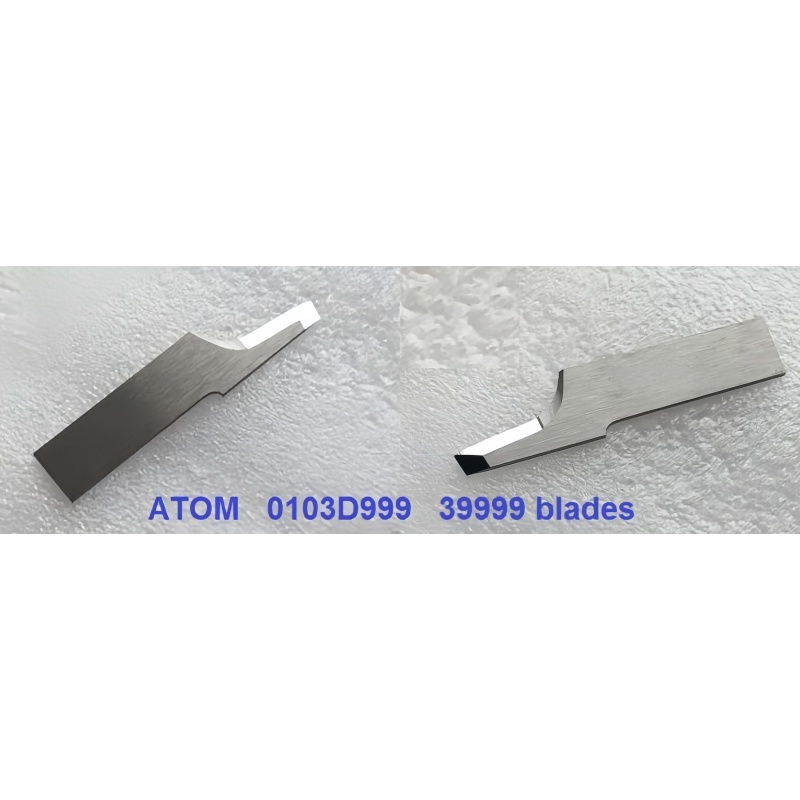

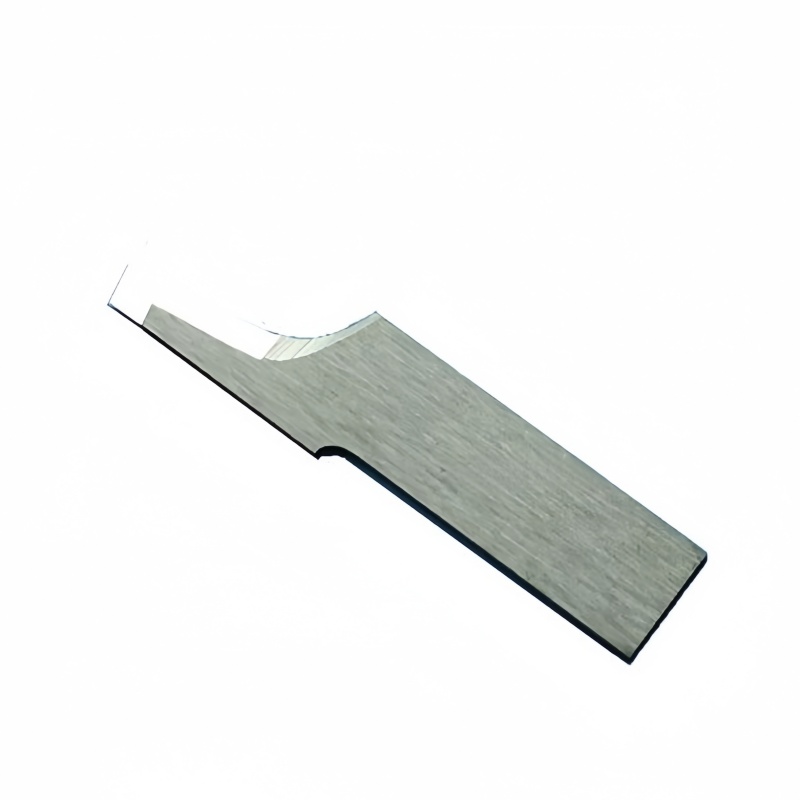

Atom 0103D999 Flashcut HV1600 Tungsten Carbide digital die cutting machine Oscillating Knife Blade

Flashcut HV1600 oscillating knife blade

Equivalent to Atom 01039999 / 0103C999 / 0103D999 / HTA-999S

1.0 mm thick blade for enhanced stiffness and precision

Tungsten Carbide (HM – Hard Metal) composition

Maximum cutting depth: 8 mm

Small radius cutting down to 2.5 mm

Reliable replacement blade for Atom automated cutting systems

Request A Quote

Description
Related Products

Atom 0103D999 Flashcut HV1600 Oscillating Knife Blade

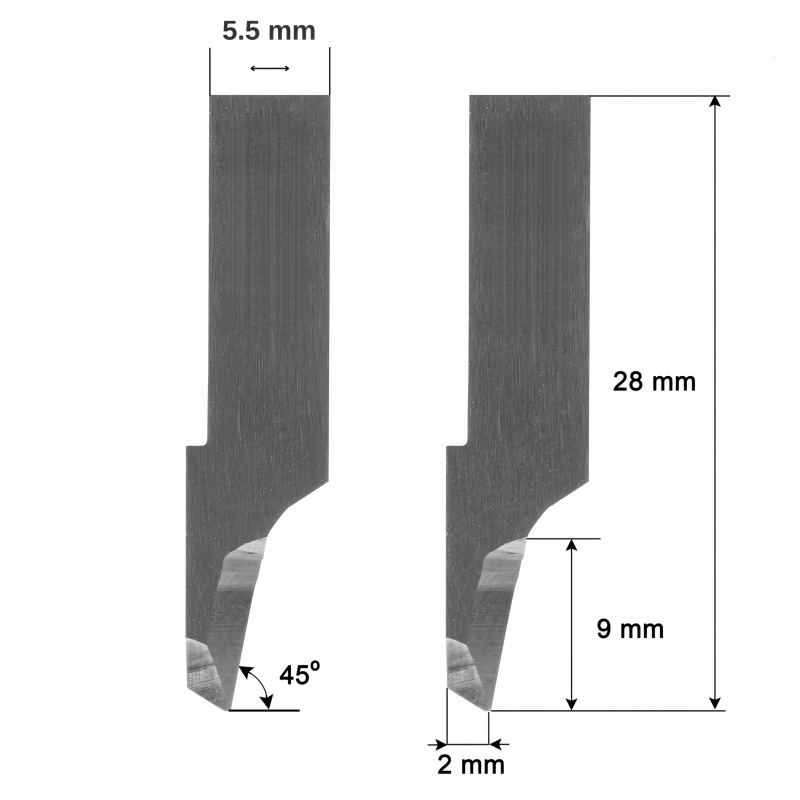

Technical Specifications

Parameter	Specification
Cutter Brand	Atom
Blade Model	0103D999
Equivalent Models	01039999 / 0103C999 / HTA-999S
Knife Type	Flashcut Flat Oscillating Blade
Blade Thickness	1.00 mm
Max Cutting Depth	8 mm
Composition	Tungsten Carbide – HM – Hard Metal
Minimum Cutting Radius	2.5 mm
Tool Compatibility	EOT / POT (with 1.5 → 1.0 mm reduction)
Replacement	Yes

Product Overview

The Atom 0103D999 Flashcut HV1600 oscillating knife blade is a high-performance tungsten carbide blade designed for precision, high-speed cutting on Atom automated cutting machines.

This model is fully equivalent to Atom 01039999 and 0103C999, and corresponds to the HTA-999S geometry with a reinforced 1.0 mm thickness, providing superior rigidity, stability, and accuracy. With a maximum cutting depth of 8 mm and a minimum cutting radius of 2.5 mm, the 0103D999 is ideal for footwear components and technical materials requiring tight curves and clean edges.

Recommended Materials

The Atom 0103D999 Flashcut blade is optimized for cutting:

Texon (up to 3 mm)
Fiber board (up to 3 mm)
Leather (up to 6 mm)

Its carbide edge ensures clean penetration, minimal fraying, and excellent dimensional accuracy, even during continuous high-speed production.

Compatible Tools

Electric Oscillating Tool (EOT)
Pneumatic Oscillating Tool (POT 1.5)
(with reduction holder from 1.5 mm to 1.0 mm)

Compatible Brands & Machines

In addition to Atom automated cutting machines, this blade is compatible with systems from:

Biesse
Cutting Trading
Humantec
Ibertec
KSM
Kimla
Ronchini
Torielli
USM
Zünd

Typical Applications

Footwear and insole manufacturing
Shoe sole and reinforcement cutting
Texon and fiber board processing
Precision leather components
CNC and digital cutting production lines

Why Choose Atom 0103D999 Flashcut HV1600

Compared with standard HTA-999 blades, the 0103D999 offers:

Greater rigidity due to 1.0 mm thickness
Better control on small radii and complex contours
Longer tool life thanks to tungsten carbide construction
Stable performance at high cutting speeds

It is the preferred choice for professional footwear manufacturers seeking accuracy, productivity, and durability.

Call to Action

Looking for Atom 0103D999 Flashcut HV1600 tungsten carbide oscillating knife blades?
📩 Contact us now for pricing, bulk supply, and technical consultation.
