Esko Kongsberg Bld-Sr6303 Carbide Oscillation Knife Blade - Consumables Accessories Parts G42441642

Tungsten carbide oscillating blade

Compatible with Esko Kongsberg cutting systems

Ø6 mm cylindrical round shank mounting

86.5° high-angle cutting edge

Maximum cutting depth 22 mm

Designed for foam and rubber materials

Request A Quote

Description
Related Products

Kongsberg BLD-SR6303 Oscillating Knife Blade (G42441642)

Technical Specifications

Specification	Details
Model	BLD-SR6303
Reference	G42441642
Compatible System	Esko Kongsberg
Blade Type	Cylindrical Oscillating Blade

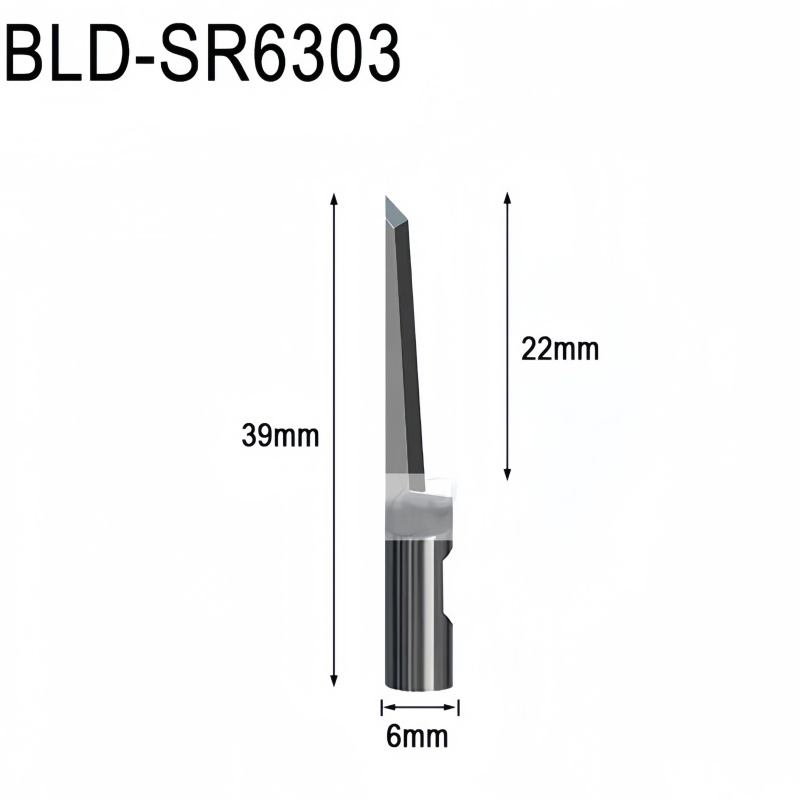

Knife Height	39 mm
Diameter	6 mm
Mounting	Round Ø6 mm
Angle	86.5°
Max Cutting Depth	22 mm
Material	Tungsten Carbide
Replacement	Yes

Product Description

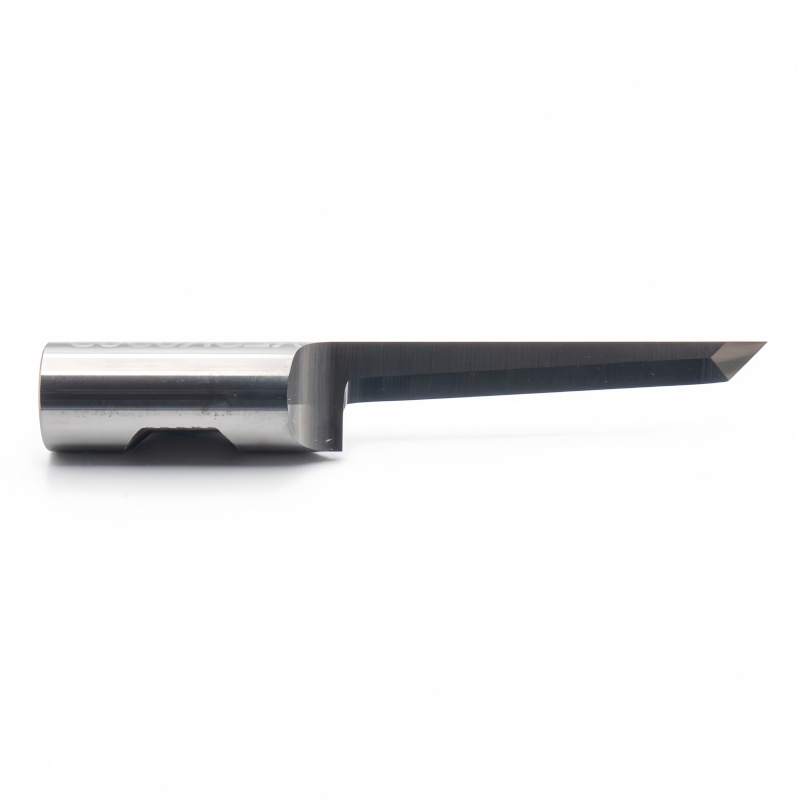

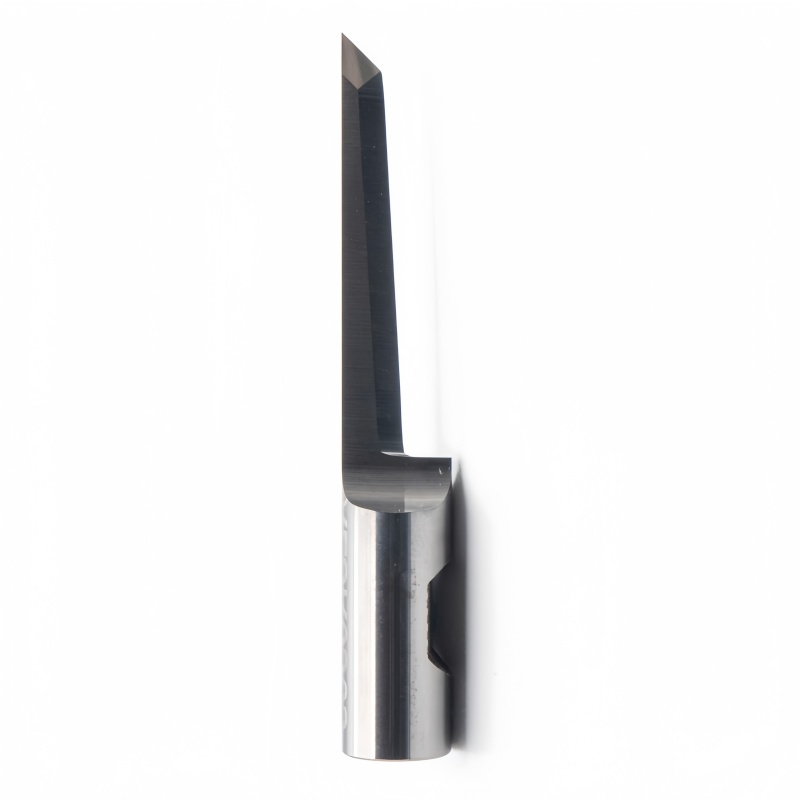

The BLD-SR6303 oscillating knife blade (G42441642) is designed for precision cutting on Esko Kongsberg digital cutting systems.

This tungsten carbide cylindrical blade features a Ø6 mm round shank (Weldon mounting) and a sharp 86.5° cutting angle, providing excellent performance when cutting thick foam and rubber materials.

With a maximum cutting depth of 22 mm and 39 mm blade height, the blade is ideal for processing expanded polystyrene (EPS), foam board, polyethylene foam and rubber materials used in packaging, signage and industrial applications.

The BLD-SR6303 oscillating blade ensures precise contour cutting, smooth edges and stable performance in high-speed cutting operations.
