Product Description

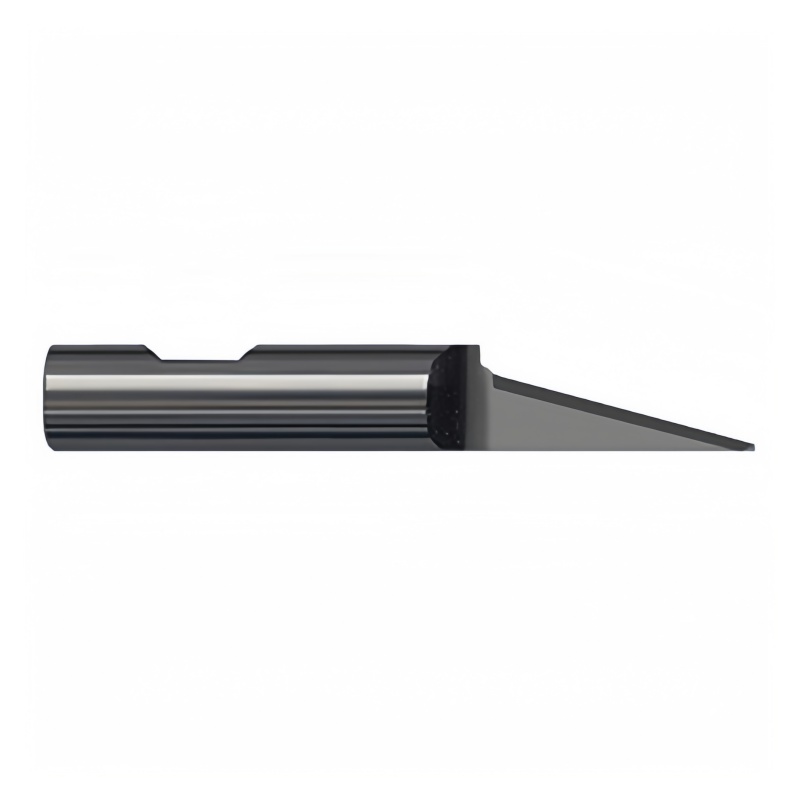

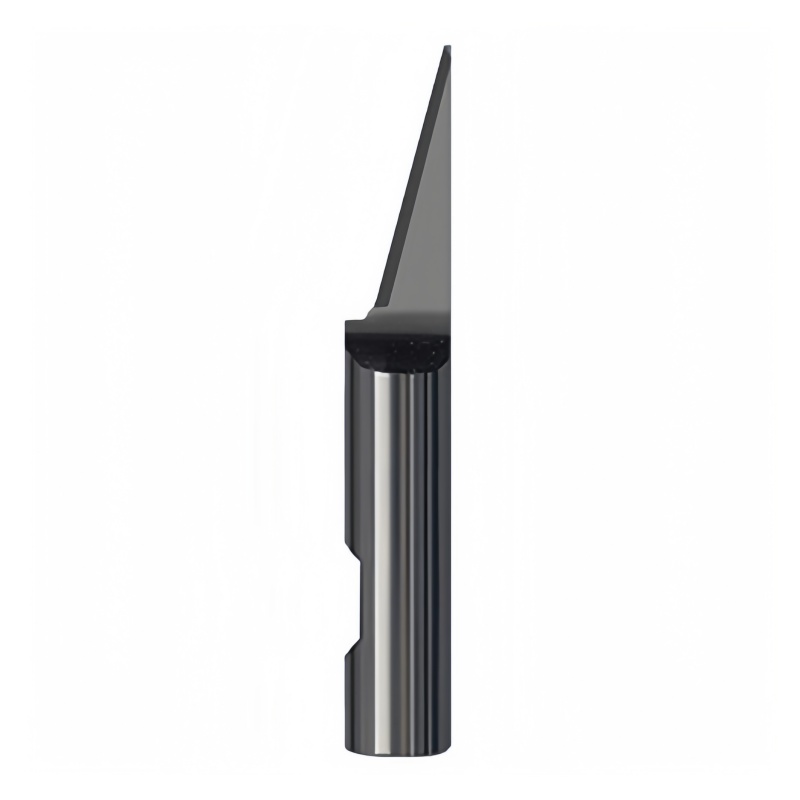

The BLD-SR6316 oscillating knife blade (G42459743) is designed for high-precision cutting on Esko Kongsberg digital cutting systems.

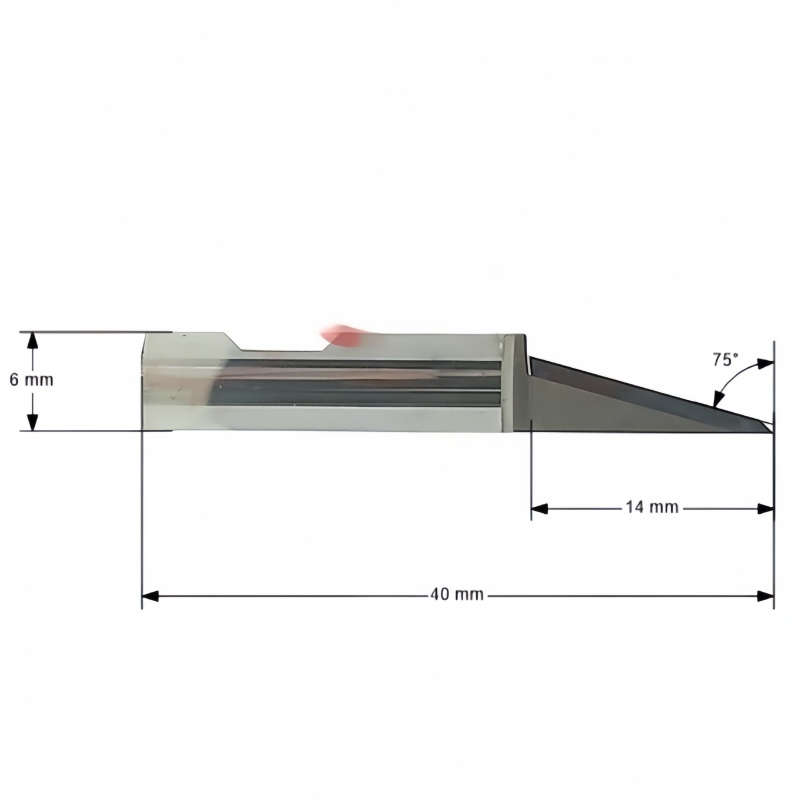

This tungsten carbide cylindrical blade features a Ø6 mm round shank (Weldon mounting) and a 75° cutting angle, providing excellent cutting performance for flexible and composite materials.

With a maximum cutting depth of 13.5 mm and 40 mm blade height, the blade is suitable for a wide range of industrial and graphic materials such as foam board, vinyl films, fabrics, foils and composite sheets.

The BLD-SR6316 oscillating blade ensures smooth edges, accurate contour cutting and stable performance in demanding production environments.

Recommended Materials

• Foam board

• Vinyl and reflective vinyl films

• Self-adhesive foil

• Polyester and nylon fabrics

• Canvas and tarpaulin

• Polyethylene and PVC

• Rubber

• Honeycomb board

• Carbon fiber and glass fiber sheets
