Oscillating Blade Knife BLD-SR6315 for Esko Kongsberg Machine G42449504

Tungsten carbide oscillating blade

Compatible with Esko Kongsberg cutting systems

Ø6 mm round shank cylindrical mounting

75° optimized cutting angle

Maximum cutting depth 13.5 mm

Designed for foam and lightweight materials

Request A Quote

Description
Related Products

Specification	Details
Model	BLD-SR6315
Reference	G42449504
Compatible System	Esko Kongsberg
Blade Type	Cylindrical Oscillating Blade

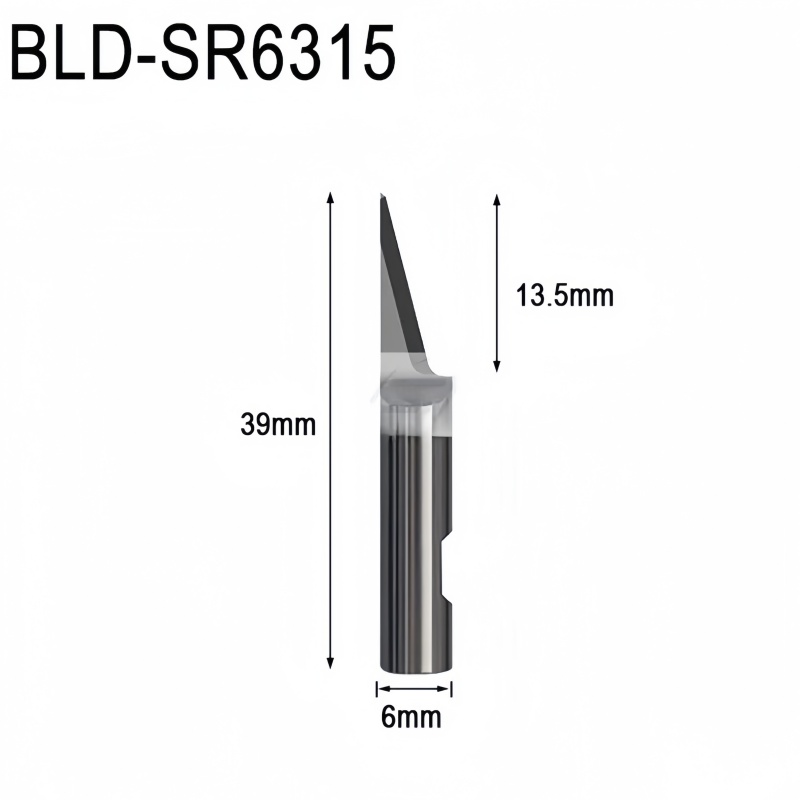

Blade Height	39 mm
Diameter	6 mm
Mounting	Round Ø6 mm
Angle	75°
Max Cutting Depth	13.5 mm
Material	Tungsten Carbide
Replacement	Yes

Esko Kongsberg Bld-Sr6315 Round Shank Knife Blade For Kongsberg Cutter G42449504

Technical Specifications

Specification Details

Model BLD-SR6315

Reference G42449504

Compatible System Esko Kongsberg

Blade Type Cylindrical Oscillating Blade

Blade Height 39 mm

Diameter 6 mm

Mounting Round Ø6 mm

Angle 75°

Max Cutting Depth 13.5 mm

Material Tungsten Carbide

Replacement Yes

Product Description

The BLD-SR6315 oscillating knife blade (G42449504) is designed for high-precision cutting on Esko Kongsberg digital cutting systems.

This tungsten carbide cylindrical blade features a Ø6 mm round shank (Weldon mounting) and a 75° cutting angle, providing excellent performance when processing foam and lightweight packaging materials.

With a maximum cutting depth of 13.5 mm and 39 mm blade height, the blade is suitable for materials such as corrugated cardboard, corrugated plastic, expanded polystyrene (EPS), foam board and polyurethane sponge.

The BLD-SR6315 oscillating blade ensures clean cutting edges, smooth contours and reliable durability for industrial cutting operations.
