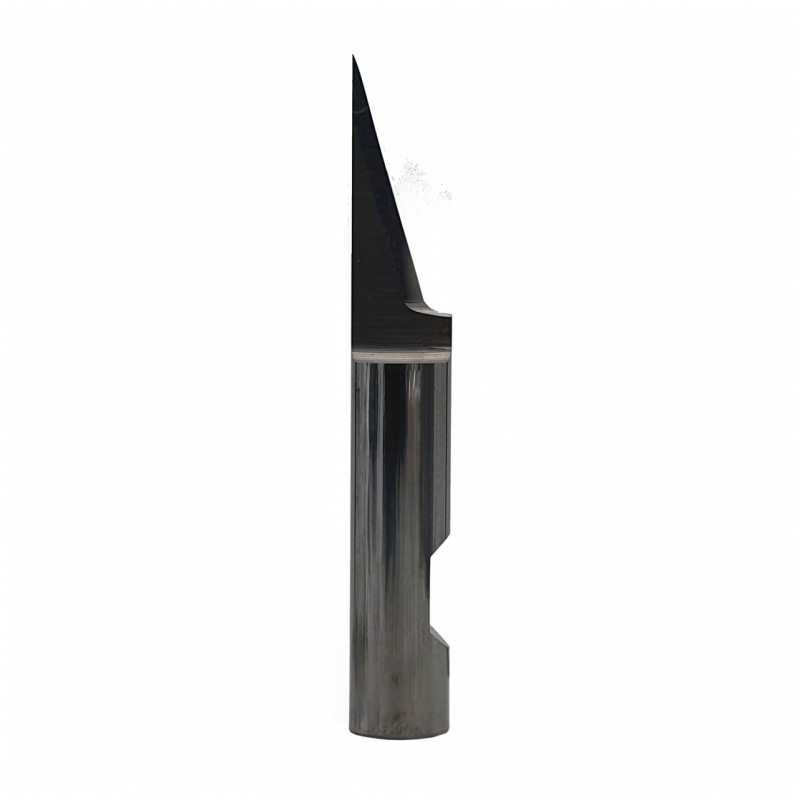

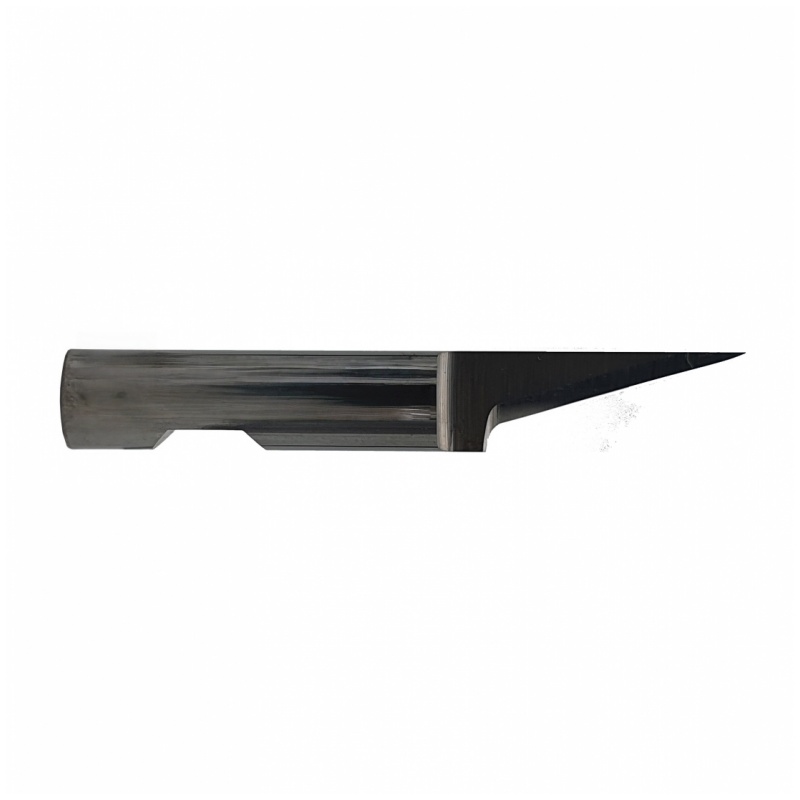

Esko Kongsberg Bld-Sr6317 Carbide Round Shank Knife Blade For Kongsberg Cutter G42460410

Tungsten carbide oscillating blade
Compatible with **Esko Kongsberg cutting systems
Ø6 mm cylindrical round shank mounting
75° optimized cutting angle
Maximum cutting depth 13.5 mm
Designed for graphics, textile and composite materials

Description
Related Products

Esko Kongsberg Bld-Sr6317 Carbide Round Shank Knife Blade For Kongsberg Cutter G42460410

Technical Specifications

Specification	Details
Model	BLD-SR6317
Reference	G42460410
Compatible System	Esko Kongsberg
Blade Type	Cylindrical Oscillating Blade

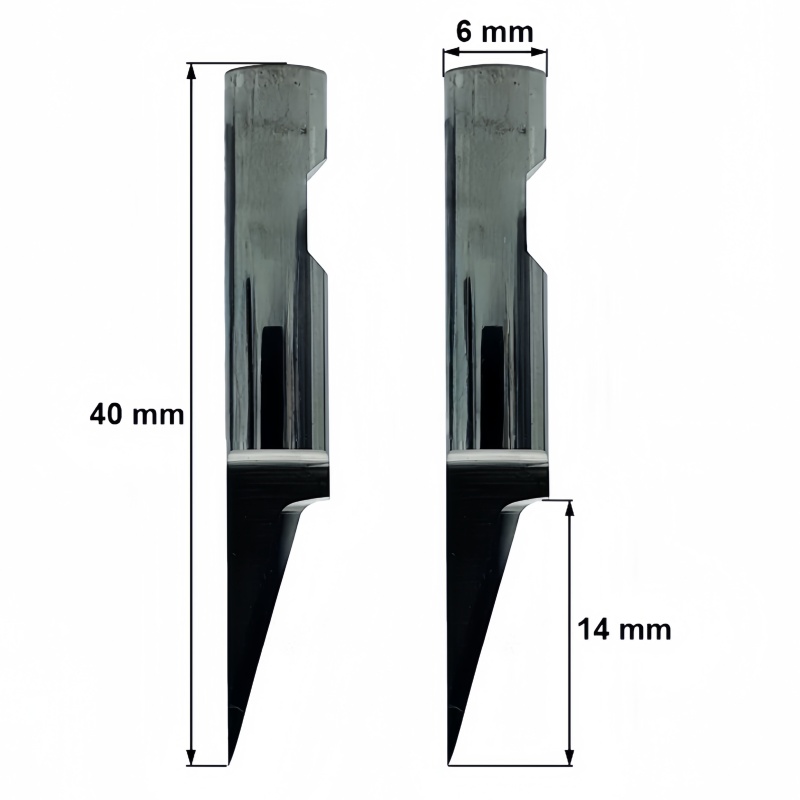

Blade Height	40 mm
Diameter	6 mm
Thickness	0.64 mm
Mounting	Round Ø6 mm
Angle	75°
Max Cutting Depth	13.5 mm
Material	Tungsten Carbide
Replacement	Yes

Product Description

The BLD-SR6317 oscillating knife blade (G42460410) is designed for high-precision cutting on Esko Kongsberg digital cutting systems.

This tungsten carbide cylindrical blade features a Ø6 mm round shank (Weldon mounting) and a 75° cutting angle, providing excellent cutting performance for flexible and composite materials.

With a maximum cutting depth of 13.5 mm and 40 mm blade height, the blade is suitable for a wide range of industrial and graphic materials such as foam board, vinyl films, fabrics, foils and composite sheets.

The BLD-SR6317 oscillating blade delivers clean edges, precise contour cutting and reliable durability in demanding production environments.
