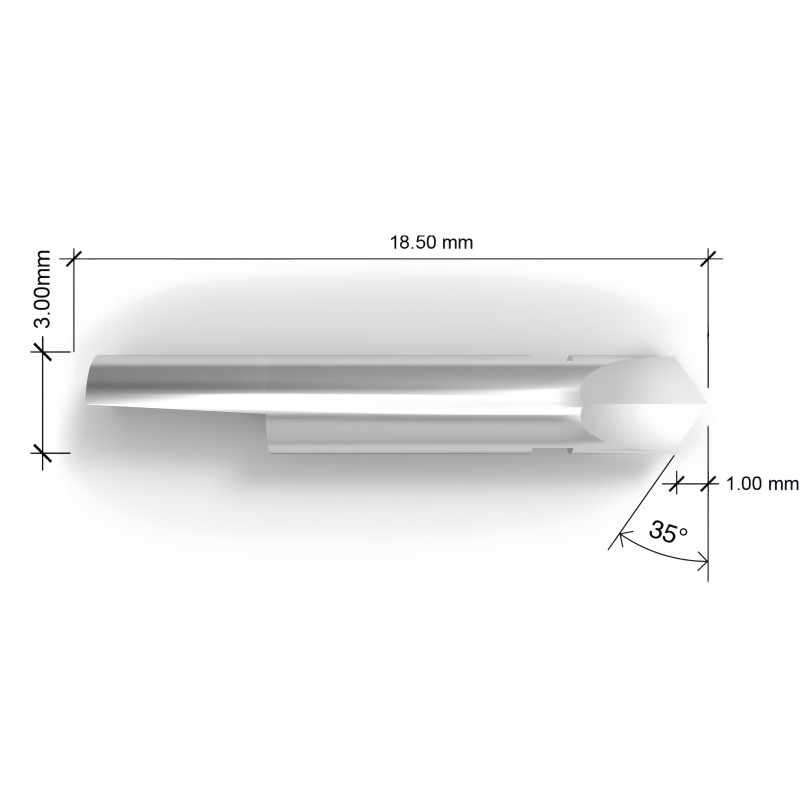

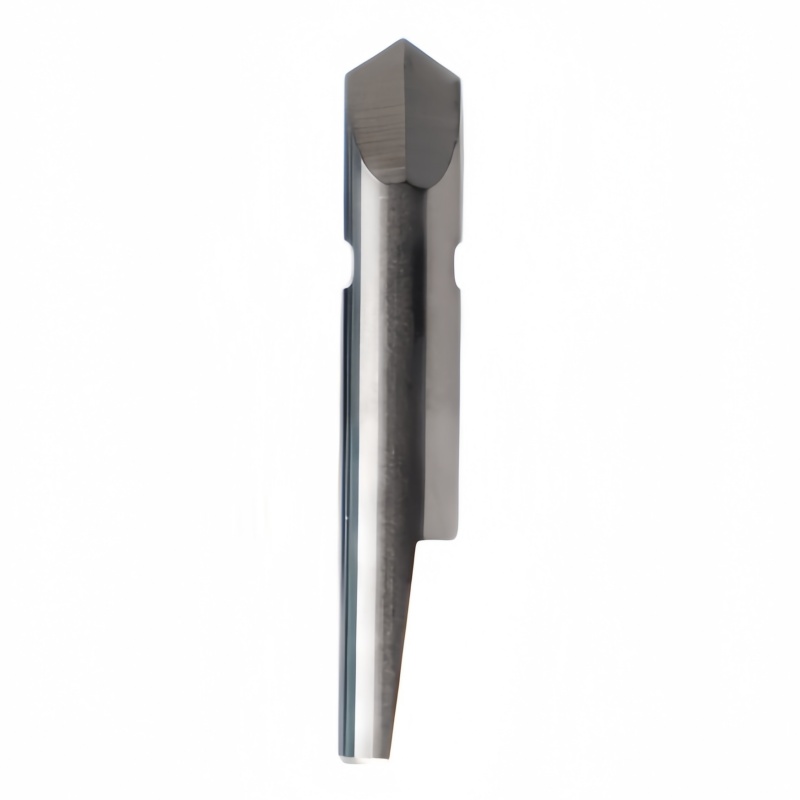

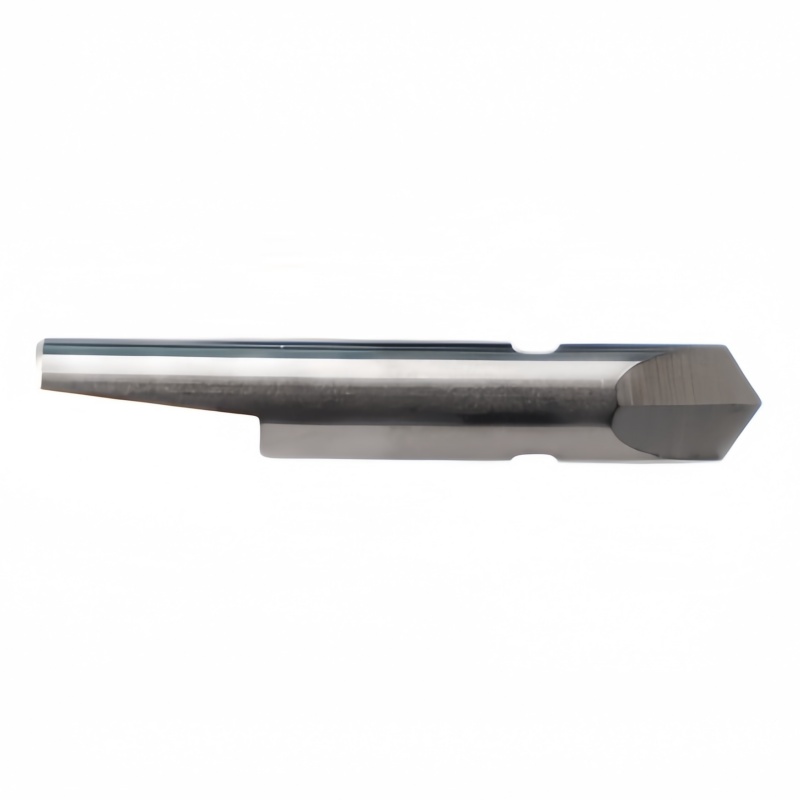

Product Description: The Z3 (Part Number: 3910115) is a high-precision round-stock drag blade manufactured from premium tungsten carbide, specifically engineered for technical kiss-cutting on digital plotter systems. Characterized by a shallow 35° cutting angle, this cylindrical blade is designed for applications where high precision and minimal lateral force are required to process delicate top layers without damaging the underlying carrier material.

With a 1.00 mm maximum cutting depth and a standard 3 mm mounting diameter, the Z3 is the industrial standard for processing technical films, including reflective foils, magnetic foils, and polycarbonate substrates. This blade offers robust cross-compatibility, serving as a direct technical replacement for the Esko Kongsberg BLD-KC103 and Bullmer B3 (069738). The advanced carbide construction provides exceptional edge stability and wear resistance, ensuring consistent, high-quality results across high-volume kiss-cutting production cycles.

Zund OEM-Quality tungsten carbide Blades at Wholesale Prices
