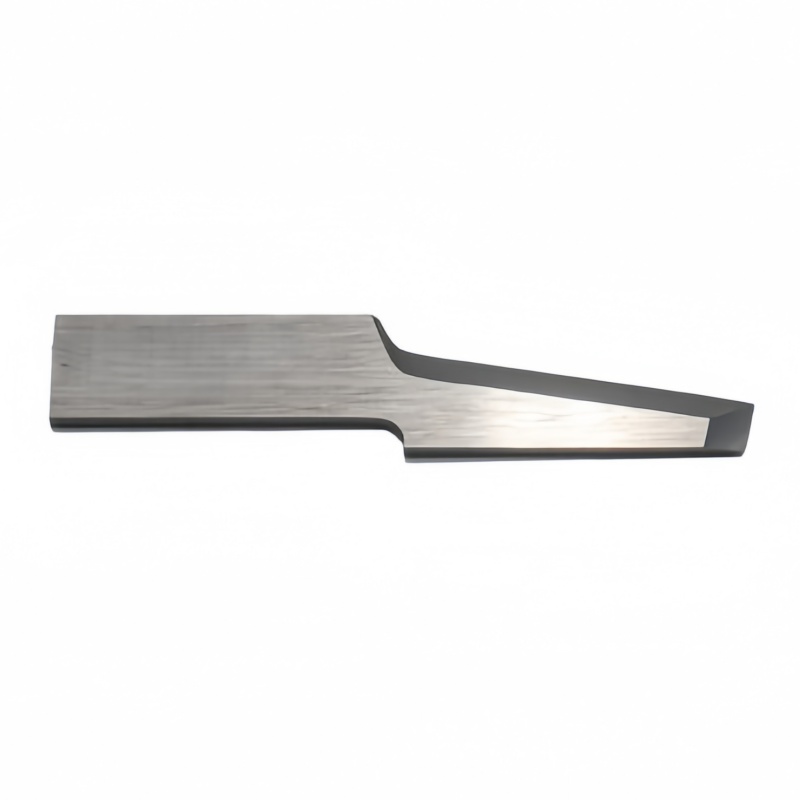

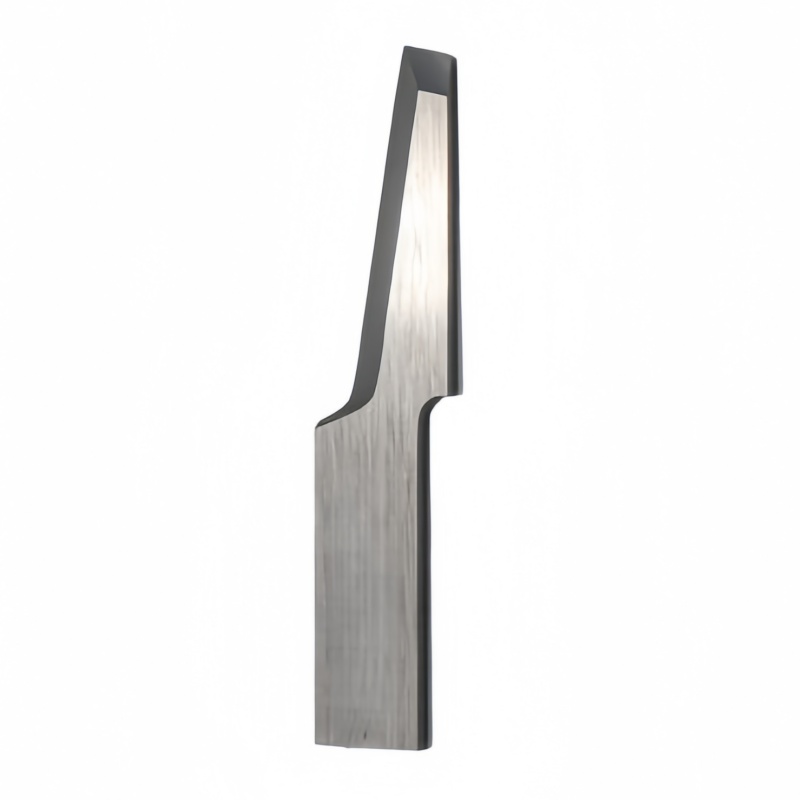

Zund Compatible Z41 Carbide Oscillating Knife Blade (3910323)
Replacement tungsten carbide Z41 oscillating blade (3910323). 15°/80° cutting angle, 0.63mm thickness. Compatible with Zund, Lectra MFC, and Humantec systems.
Request A Quote

Zund Z41 Oscillating Knife Blade 3910323  For Sale Replace Compatible

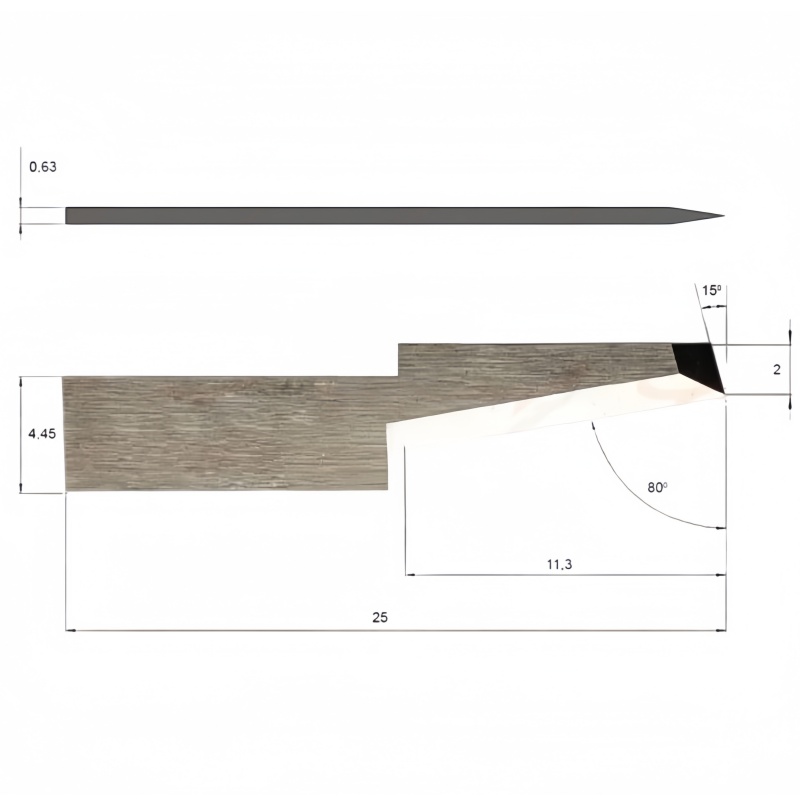

Specification Value
Model Z41
Part Number (Zünd) 3910323
Mounting Flat 0.63 mm
Angle 15° / 80°
Knife Height 25.00 mm
Knife Width 4.45 mm
Thickness 0.63 mm
Material Compatibility Aramid fibers, Carbon fibers, textiles, leather, felt, foam board, non-woven/nylon/polyester fabrics

Product Description: The Z41 (Part Number: 3910323) is a high-precision replacement oscillating blade manufactured from premium tungsten carbide. It is specifically engineered for high-performance digital cutting on Zund, Humantec, and Lectra MFC systems. This pointed flat blade features a specialized 15° / 80° dual-angle geometry, designed to provide a sharp initial piercing point followed by a stable edge for intricate cutting paths.

With a 0.63 mm thickness and a 4.45 mm width, the Z41 is optimized for the clean processing of technical textiles and composite reinforcements. It is particularly effective for cutting high-strength materials such as aramid and carbon fibers, as well as industrial fabrics, leather, and felt. The robust carbide construction ensures exceptional mechanical resistance and edge sharpness during high-frequency oscillation, delivering precise results across both structural and flexible substrates.

Zund OEM-Quality tungsten carbide Blades at Wholesale Prices

Thick material processing shouldn't mean paying exorbitant prices for consumables. Our compatible  blades are strictly manufactured to meet or exceed original equipment standards, providing exceptional durability and edge retention at a fraction of the cost.
Large inventory available for immediate worldwide shipping.
Contact our technical sales engineers today for volume discounts or material compatibility advice:
📩 Email: [info@hengrui-knives.com ]
👉 Request a Bulk Quote Blades
