Zund S3 Z61 Carbide Oscillating Knife Blade For Zund Cutting Systems 5201343
| Specification | Value |
| Model | Z61 |
| Part Number (Zünd) | 5201343 |
| Mounting | Flat 1.5 mm |

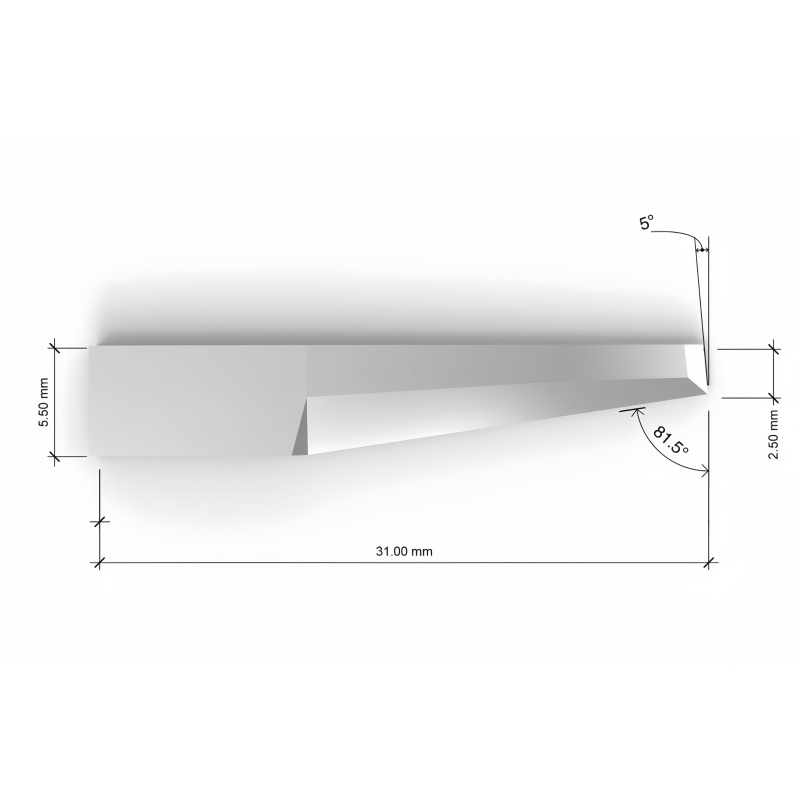

| Angle | 5° / 81.5° |
| Max. Cutting Depth | 20.00 mm |
| Knife Height | 31.00 mm |
| Knife Width | 5.50 mm |
| Thickness | 1.50 mm |
| Material Compatibility | Corrugated cardboard, Corrugated plastic, Felt, Foam board, Folding Carton, Honeycomb, Leather, Rubber |

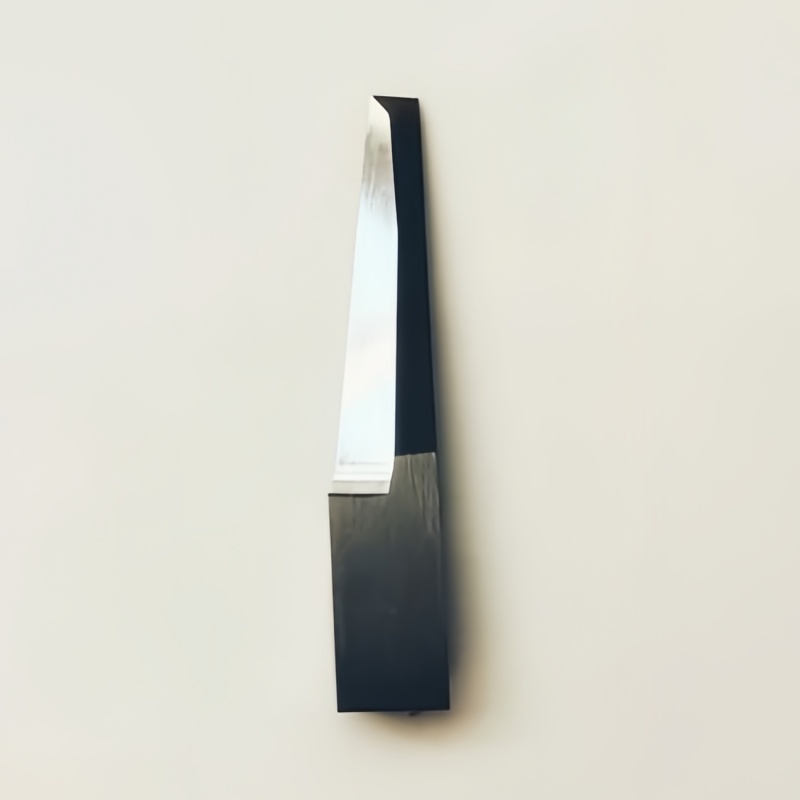

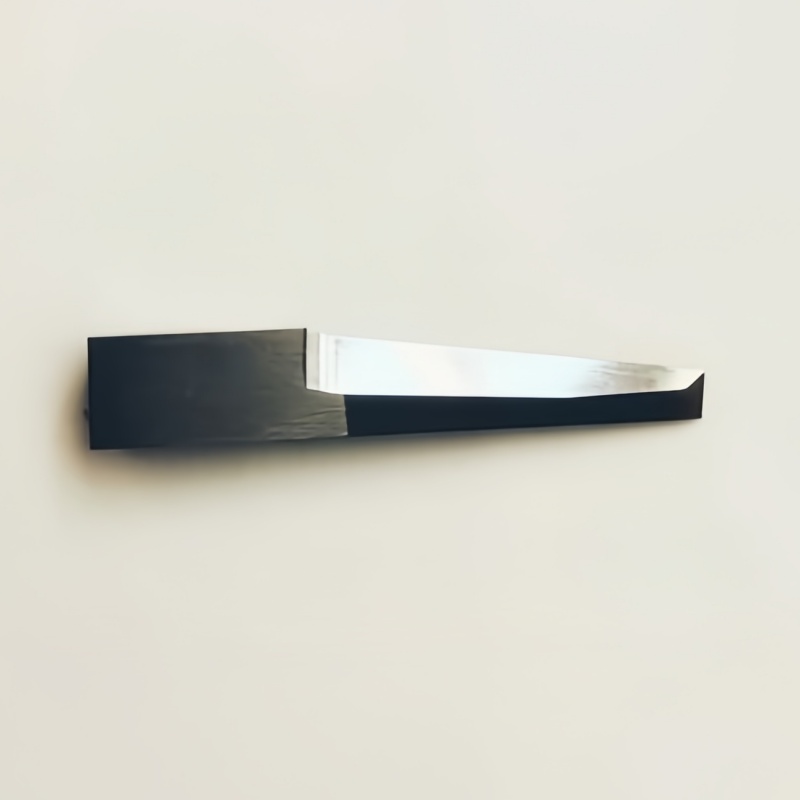

Product Description: The Z61 (Part Number: 5201343) is a robust, high-capacity replacement oscillating blade manufactured from premium tungsten carbide, specifically engineered for integration with Zund S3 and compatible digital cutting systems.
Designed for deep and demanding cuts, this flat oscillating blade features a heavy-duty 1.50 mm thickness and a specialized 5° / 81.5° dual-angle geometry. It accommodates an impressive maximum cutting depth of 20.00 mm, making it an optimal choice for processing thick and structural materials such as honeycomb panels, corrugated plastic, thick foam board, and heavy-duty rubber. The 5.50 mm width combined with the 1.5 mm flat mounting ensures maximum rigidity and vertical accuracy within the tool holder, while the high-grade carbide construction guarantees exceptional edge retention and resistance to mechanical stress during high-frequency industrial oscillation.
Zund OEM-Quality tungsten carbide Blades at Wholesale Prices
Thick material processing shouldn't mean paying exorbitant prices for consumables. Our compatible blades are strictly manufactured to meet or exceed original equipment standards, providing exceptional durability and edge retention at a fraction of the cost.Large inventory available for immediate worldwide shipping.
Contact our technical sales engineers today for volume discounts or material compatibility advice:
