ATOM 0103C858 HV1600 Oscillating Knife Blade 11mm|Manufacturer of Carbide Knives & Blades

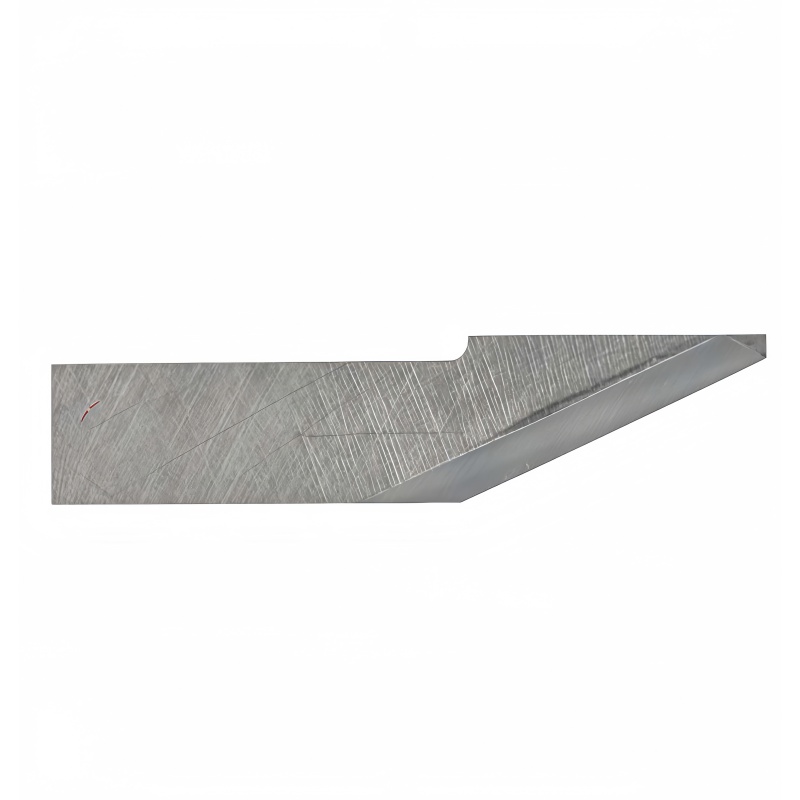

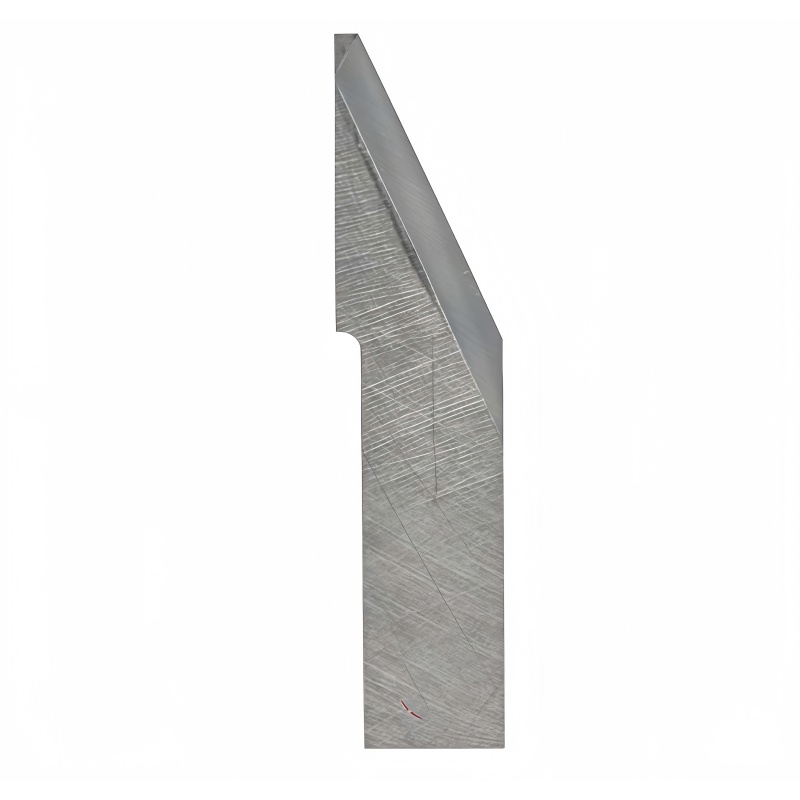

Atom 0103C858 HV1600 Flashcut Knife Blade For Atom Flashcut Knife Cutting Tables & Systems

HV1600 tungsten carbide oscillating blade

Designed for rigid and dense materials

Suitable for materials up to 5 mm thickness

Approx. 11 mm cutting depth

Excellent performance in small radius cutting

Stable operation on CNC oscillating systems

Request A Quote

Description
Related Products

Atom 0103C858 HV1600 Flashcut Knife Blade For Atom Flashcut Knife Cutting Tables & Systems

Technical Specifications

Specification	Details
Model	ATOM 0103C858
Original No.	0103C858 (HV1600)
Blade Type	Oscillating Knife
Blade Thickness	1.0 mm
Cutting Depth	Approx. 11 mm
Recommended Material Thickness	Up to 5 mm
Composition	Tungsten Carbide (HV1600)

The ATOM 0103C858 HV1600 oscillating knife blade is designed for precision cutting of rigid and dense materials in industrial CNC cutting systems.

Manufactured from tungsten carbide (HV1600 grade), the blade offers high rigidity and wear resistance, ensuring stable oscillation even in demanding production environments.

With a cutting depth of approximately 11 mm and recommended material thickness up to 5 mm, this blade is ideal for:

Sole leather
Asbestos-free materials
Tang graphite
Other very rigid substrates

Its optimized geometry allows accurate small-radius cutting, making it suitable for detailed contour work and tight curves in footwear and industrial applications.
