Specification	Value
Model	BLD-DF572
Part Number	G34102988
Mounting	Flat 0.63 mm
Angle	2 x 38° + 2 x 69°
Max. Cutting Depth	16.00 mm
Knife Height	43.50 mm
Knife Width	50.00 mm
Thickness	0.64 mm
Material Compatibility	Corrugated cardboard, Honeycomb, Polycarbonate

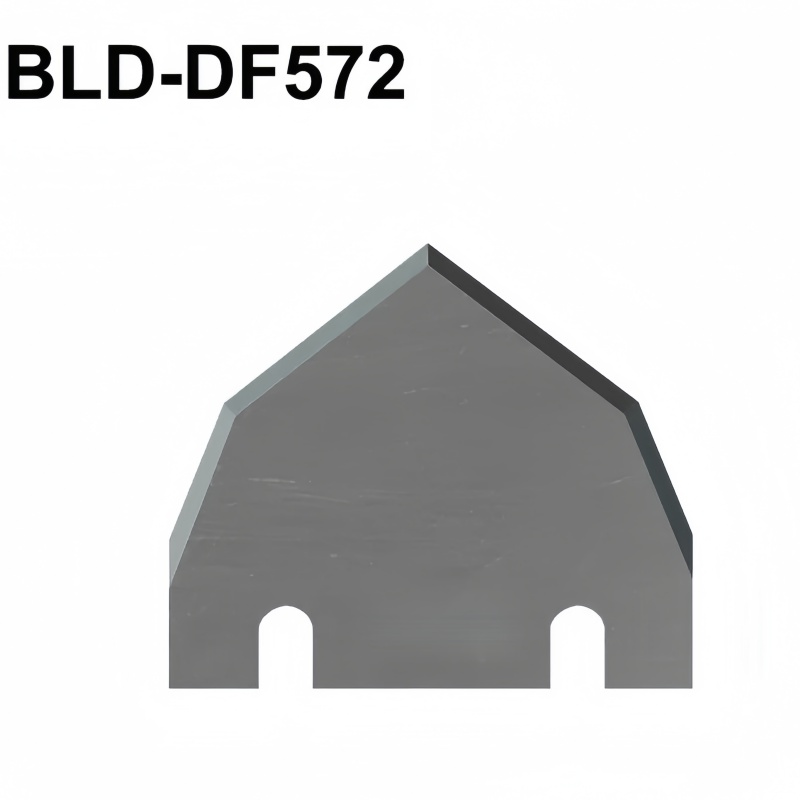

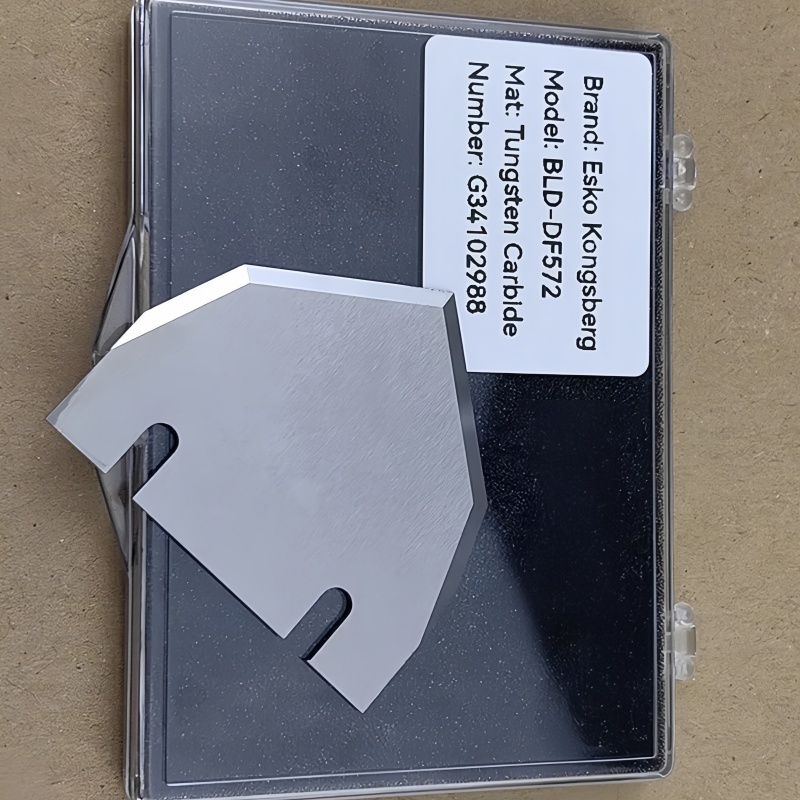

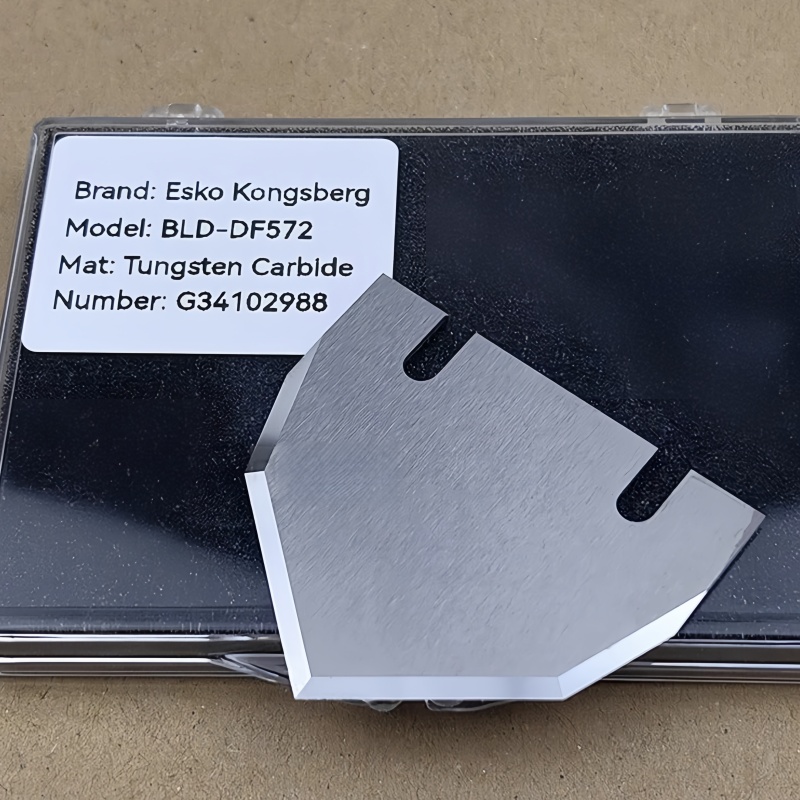

Product Description: The BLD-DF572 (Part Number: G34102988) is a replacement double-edge V-notch tool knife manufactured from tungsten carbide, specified for compatibility with Esko Kongsberg cutting systems. This blade features a complex cutting geometry with angles of 2 x 38° + 2 x 69° and utilizes a flat 0.63 mm mounting interface. It accommodates a maximum cutting depth of 16.00 mm. The physical dimensions are 43.50 mm in height, 50.00 mm in width, and 0.64 mm in thickness. It is technically specified for processing substrates including corrugated cardboard, honeycomb panels, and polycarbonate.
