ESKO Kongsberg BLD-DR8261A Cutting Knife Blade For Kpcs Cutting Tables & Digital Cutters G42462002

Asymmetric tungsten carbide drag blade

Compatible with Esko Kongsberg cutting systems

Ø8 mm round shank (Weldon mounting)

60° cutting angle for versatile material processing

Maximum cutting depth 6.5 mm

Ideal for packaging and plastic materials

Request A Quote

Description
Related Products

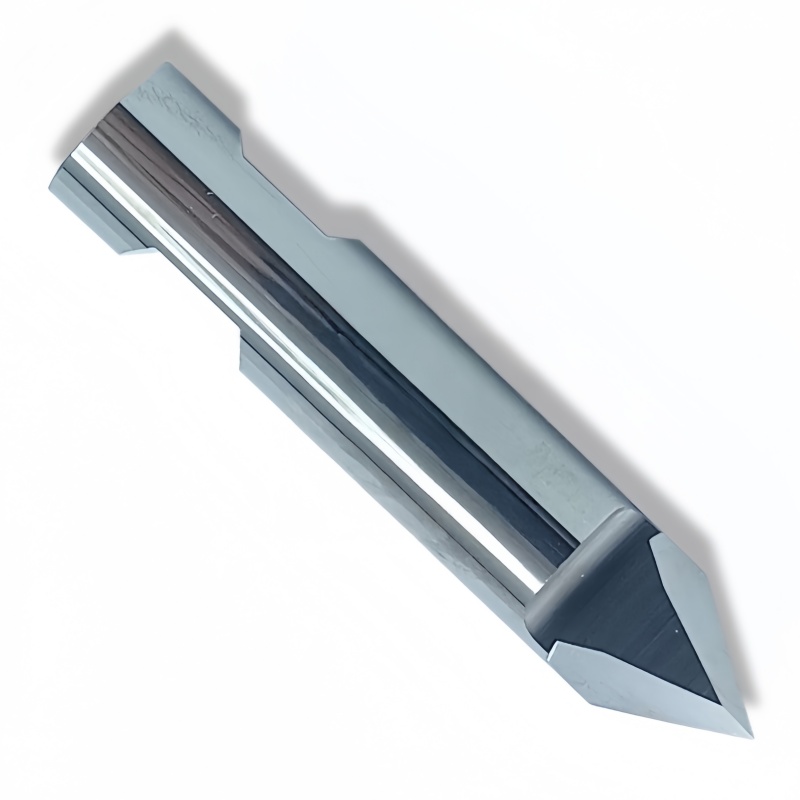

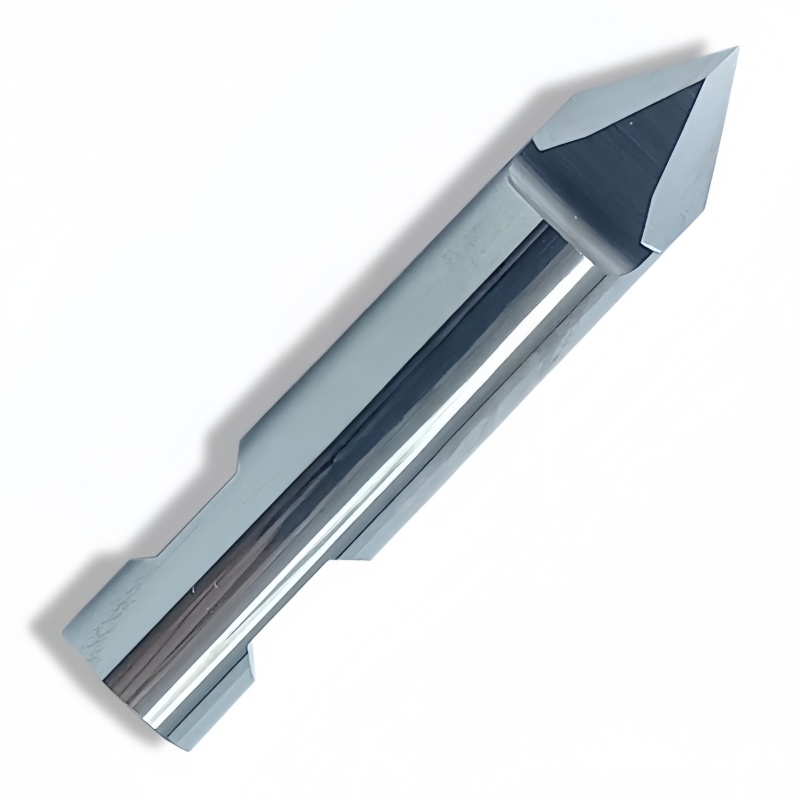

Kongsberg BLD-DR8261A Asymmetric Drag Knife Blade

Technical Specifications

Specification	Details
Model	BLD-DR8261A
Reference	G42462002
Compatible System	Esko Kongsberg
Blade Type	Asymmetric Drag Blade

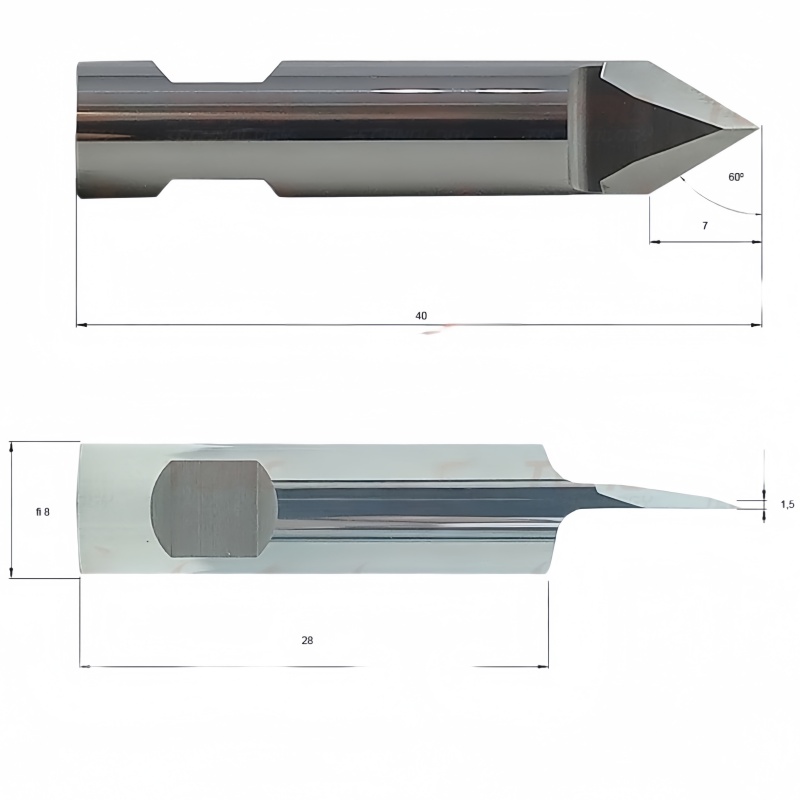

Knife Height	40 mm
Mounting	Round Ø8 mm
Angle	60°
Max Cutting Depth	6.5 mm
Material	Tungsten Carbide
Replacement	Yes

Product Description

The BLD-DR8261A asymmetric drag knife blade (G42462002) is designed for precision cutting on Esko Kongsberg digital cutting systems.

This tungsten carbide drag blade features a Ø8 mm round shank with Weldon mounting and a 60° cutting angle, making it suitable for medium-density materials and packaging substrates.

With a maximum cutting depth of 6.5 mm and 40 mm blade height, the blade provides clean and accurate cutting results when processing cardboard, folding carton, plastics, PVC sheets, vinyl films and gasket materials.

The BLD-DR8261A blade is widely used in packaging prototyping, signage production and industrial material cutting.
