Esko Kongsberg Bld-Sf216 Carbide Knife Blade For Kongsberg Cutting Tables G42441212

Tungsten carbide flat blade (0.63 mm)
Compatible with Esko Kongsberg cutting systems
Suitable for drag & oscillating cutting tools
54° cutting angle for versatile applications
Maximum cutting depth 7.4 mm
Multi-material cutting capability

Description
Related Products

Kongsberg BLD-SF216 Flat Drag & Oscillating Knife Blade

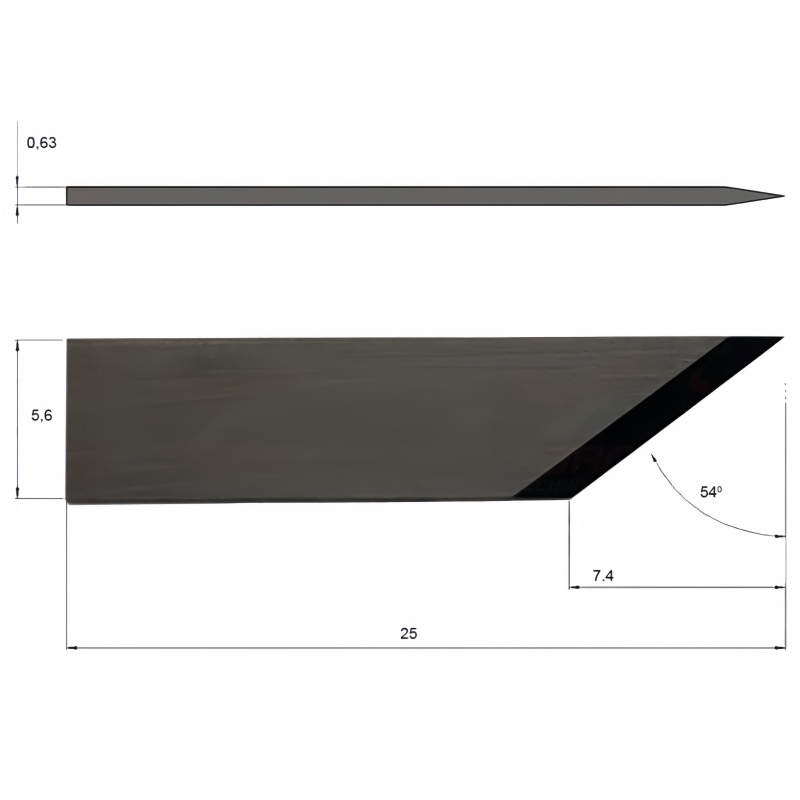

Technical Specifications

Specification	Details
Model	BLD-SF216
Reference	G42441212
Compatible System	Esko Kongsberg
Blade Type	Flat Drag / Oscillating Blade
Knife Height	25 mm
Thickness	0.63 mm
Mounting	Flat 0.63 mm
Angle	54°
Max Cutting Depth	7.4 mm
Material	Tungsten Carbide
Replacement	Yes

Product Description

The BLD-SF216 flat knife blade (G42441212) is designed for versatile cutting on Esko Kongsberg digital cutting systems.

This tungsten carbide flat blade features a 0.63 mm thickness flat mounting and a 54° cutting angle, allowing it to be used in both drag cutting and oscillating cutting tools.

With a maximum cutting depth of 7.4 mm and 25 mm blade height, the blade is ideal for cutting a wide range of materials including corrugated cardboard, corrugated plastic, foam board, PVC, paper, polyester fabric, vinyl films and gasket materials.

The BLD-SF216 blade offers high flexibility, precise cutting performance and long service life, making it a reliable choice for packaging, signage and industrial applications.
