Esko Kongsberg Bld-Sr8140 Cylindrical Shaft Knife Blade Compatible With Kongberg Cutting System

Tungsten carbide cylindrical drag blade

Compatible with **Esko Kongsberg cutting systems

Ø8 mm round shank (Weldon mounting)

50° precision cutting angle

Maximum cutting depth 9.5 mm

Optimized for foam board cutting

Request A Quote

Description
Related Products

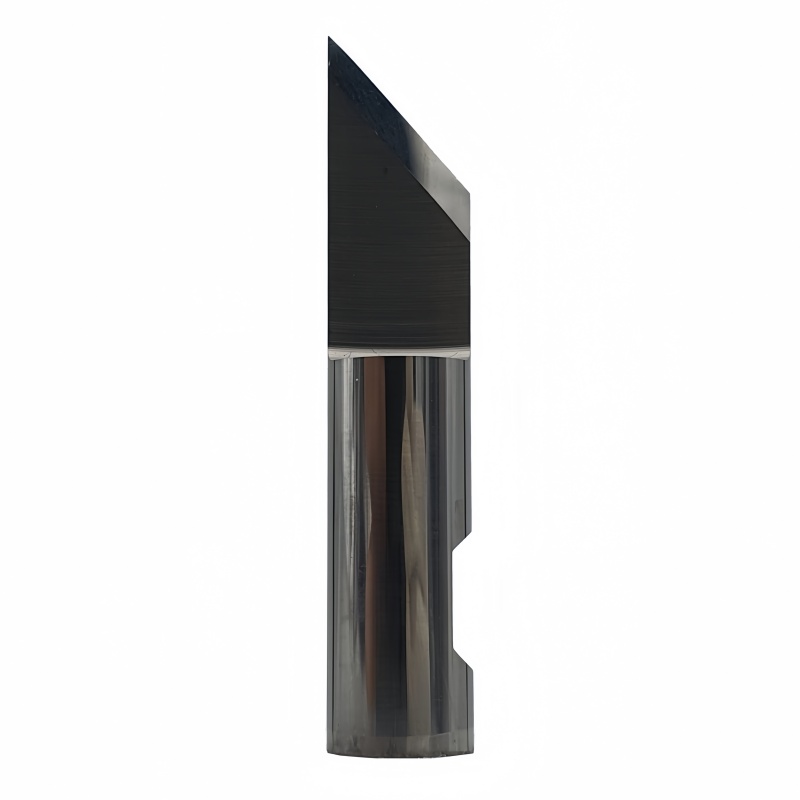

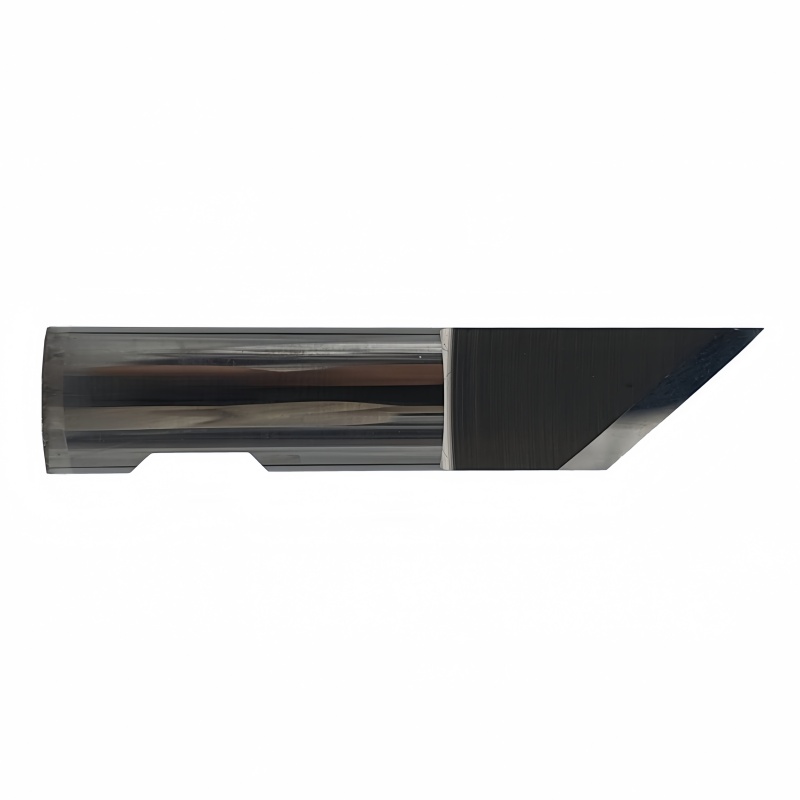

Kongsberg BLD-SR8140 Cylindrical Drag Knife Blade

Technical Specifications

Specification	Details
Model	BLD-SR8140
Reference	G42455899
Compatible System	Esko Kongsberg
Blade Type	Cylindrical Drag Blade

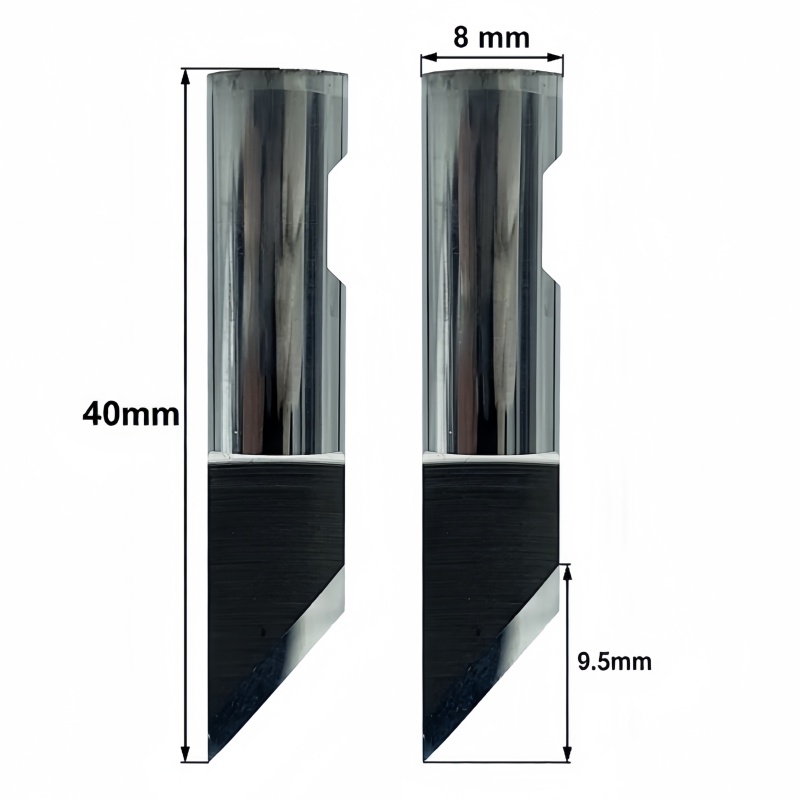

Knife Height	40 mm
Diameter	8 mm
Mounting	Round Ø8 mm
Angle	50°
Max Cutting Depth	9.5 mm
Material	Tungsten Carbide
Replacement	Yes

Product Description

The BLD-SR8140 cylindrical drag knife blade (G42455899) is designed for accurate cutting on Esko Kongsberg digital cutting systems.

This tungsten carbide drag blade features a Ø8 mm round shank (Weldon mounting) and a 50° cutting angle, delivering precise cutting performance for foam-based materials.

With a maximum cutting depth of 9.5 mm and a 40 mm blade height, the blade is optimized for cutting foam board materials used in signage production, display graphics and packaging prototypes.

The BLD-SR8140 drag blade provides clean edges, high durability and stable performance in professional digital cutting applications.
