特性 (Feature)	规格 (Specification)

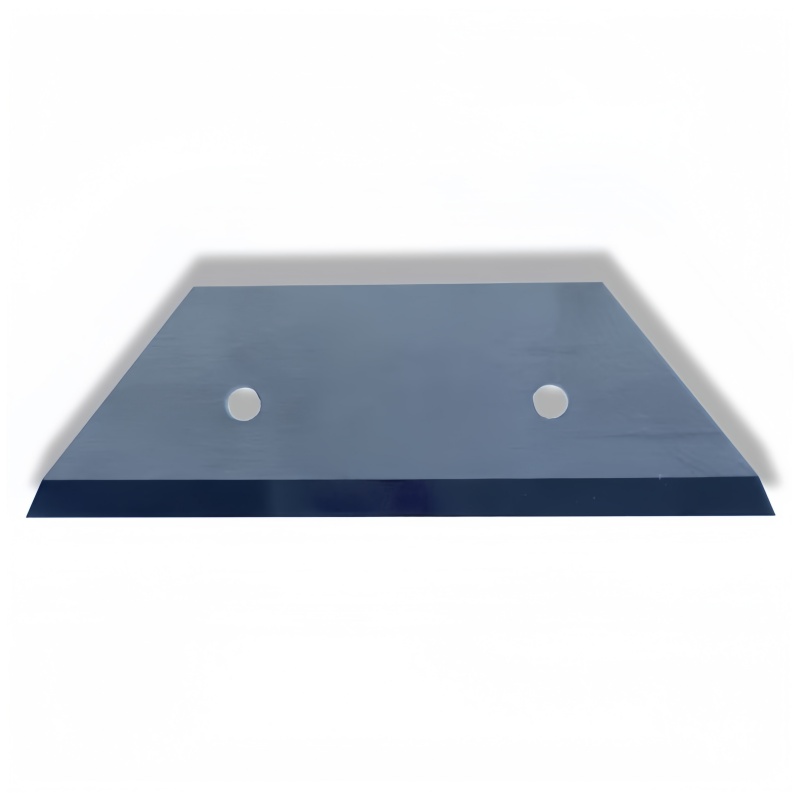

Product Model	BLD-TZ512 (G42448597 / 42448597)
Knife Type	Heavy-Duty V-cut Blade, Flat Drag Knife
Material	Industrial Grade Tungsten Carbide (TC)
Max. Cutting Depth	17.00 mm
Knife Height / Width	60.60 mm / 19.00 mm
Thickness	0.90 mm (High Rigidity)
Mounting	Flat 0.9 mm
Compatible Brand	Esko Kongsberg (Heavy V-notch Tool)

Why Upgrade to the BLD-TZ512 (0.9mm)?

Maximum Tool Rigidity: The 0.9mm body is significantly more resistant to bending than standard 0.6mm blades. This ensures perfectly straight V-grooves even in dense Corrugated plastic or triple-wall cardboard, preventing blade deflection.

Precision V-Grooving: Specifically optimized for structural designers creating 3D displays and heavy-duty boxes. It allows for sharp, consistent 45-degree folds without cracking the outer liner of the Folding Carton.

Extended Service Life: Crafted from high-density tungsten carbide, the TZ512 excels in abrasive environments, maintaining a razor-sharp edge longer than high-speed steel alternatives.

Consistent 17mm Depth: Capable of cutting up to 17mm deep, providing the reach necessary for thick sandwich panels and heavy-duty structural boards used in POP displays and furniture.

Core Applications:

Structural Design: V-notching for 3D cardboard furniture and complex exhibition displays.

Heavy Packaging: Double and triple-wall corrugated cardboard processing.

Industrial Signage: Thick corrugated plastic (PP) and honeycomb boards.

OEM-Quality Blades at Wholesale Prices

Thick material processing shouldn't mean paying exorbitant prices for consumables. Our compatible  blades are strictly manufactured to meet or exceed original equipment standards, providing exceptional durability and edge retention at a fraction of the cost.
Large inventory available for immediate worldwide shipping.
Contact our technical sales engineers today for volume discounts or material compatibility advice:
