Knife Esko Kongsberg BLD-SF420 Carbide CNC Oscillating Blade for Corrugated Card|Manufacturer of Carbide Knives & Blades

Knife Esko Kongsberg BLD-SF420 Carbide CNC Oscillating Blade for Corrugated Cardboard, Foam & Fabrics

Constructed from tungsten carbide for superior wear resistance

Multi-material capability: corrugated cardboard, foam, felt, folding carton, magnetic foil, polyester fabric, rubber

65° angle for precise and strong cutting

Maximum cutting depth: 14.3 mm

Flat oscillating / pointed blade design for versatile applications

Reliable replacement for Esko Kongsberg CNC systems

Request A Quote

Description
Related Products

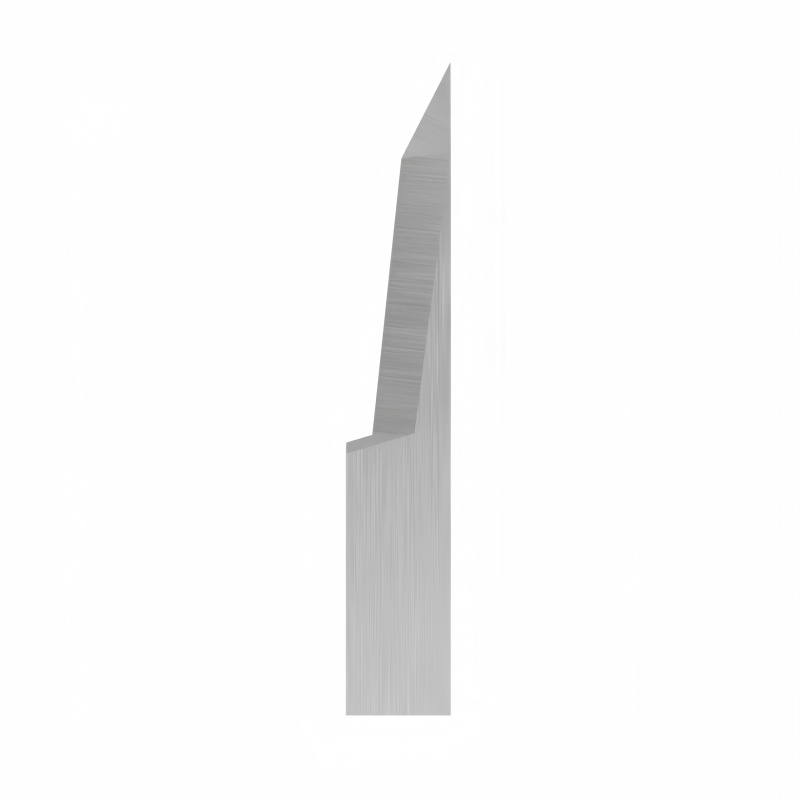

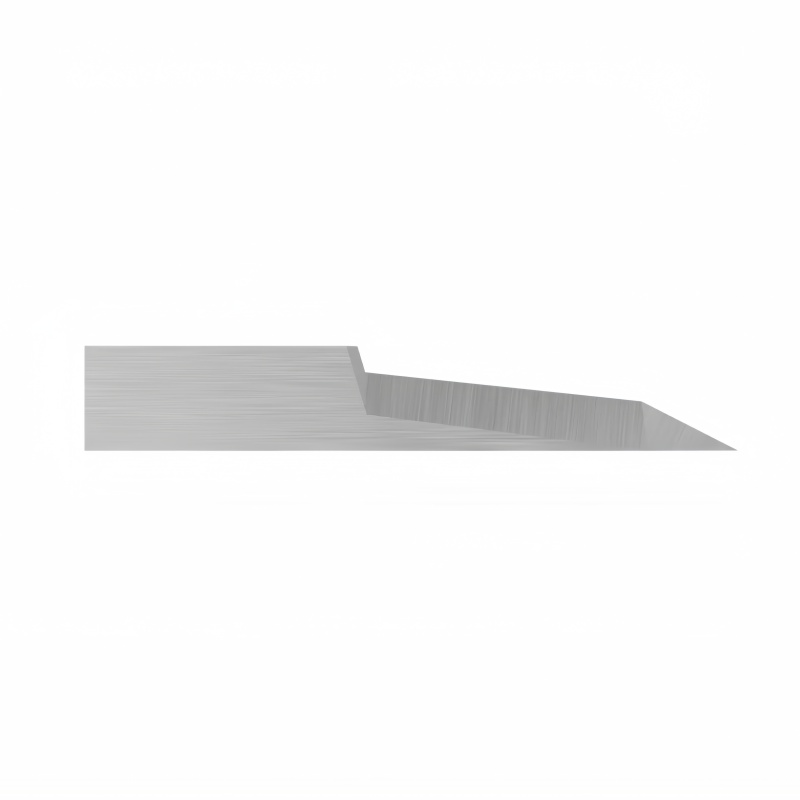

BLD-SF420 Tungsten Carbide CNC Oscillating Blade for Esko Kongsberg

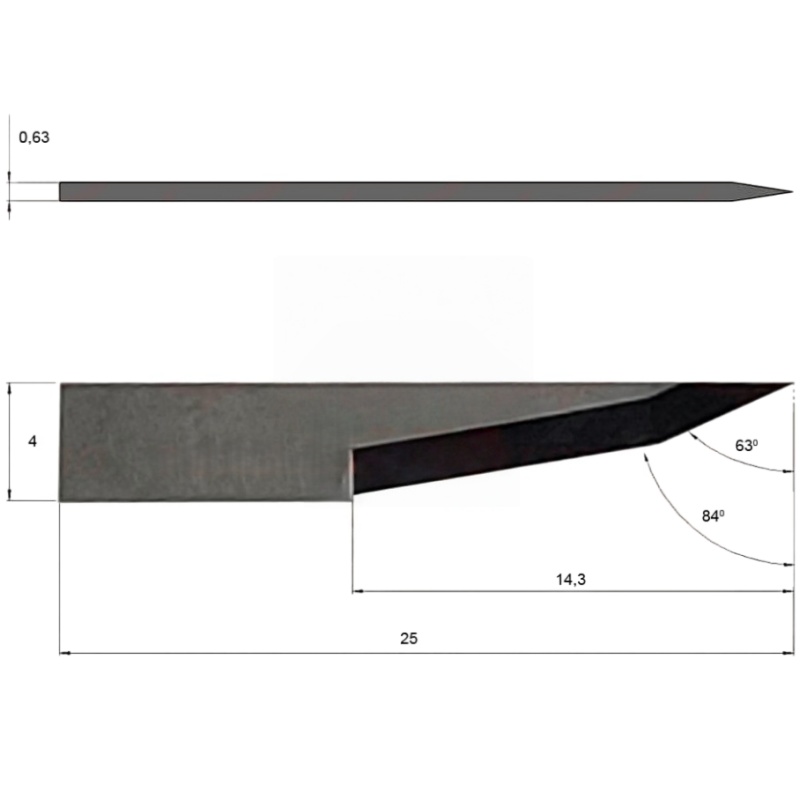

Technical Specifications

Parameter	Value
Model	BLD-SF420
Blade Type	Flat Oscillating / Pointed Blade
Material	Tungsten Carbide
Max Cutting Depth	14.30 mm
Blade Height	25.00 mm
Blade Width	4.00 mm
Thickness	0.63 mm
Angle	65°
Replacement	Yes
Compatible Systems	Esko Kongsberg CNC Tables

The BLD-SF420 oscillating blade is a premium tungsten carbide cutting tool engineered for Esko Kongsberg digital cutting tables. With a 65° cutting angle and maximum cutting depth of 14.3 mm, it delivers high-precision cuts on a wide range of materials, from corrugated cardboard and foam boards to fabrics and magnetic foils.

This blade is a reliable replacement, offering long-lasting durability, clean edges, and versatile industrial performance.
