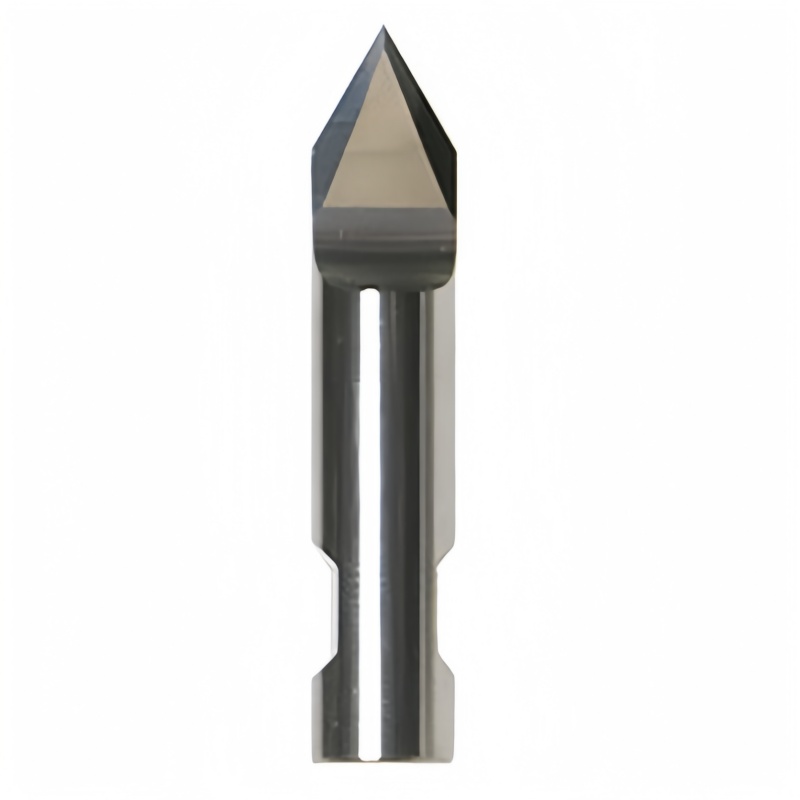

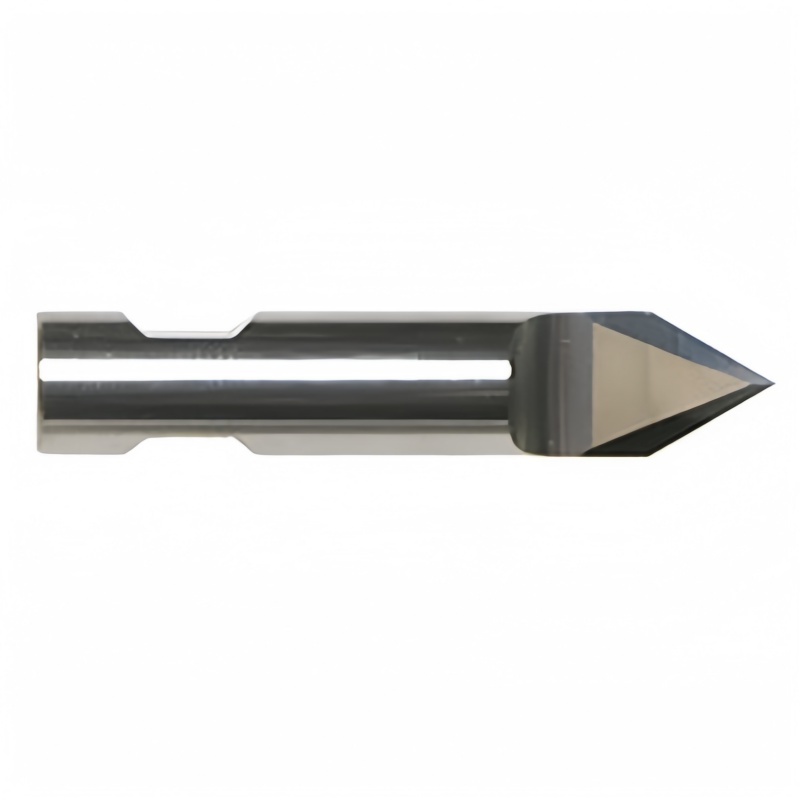

Esko Kongsberg Bld-Dr8260a Tungsten Carbide Asymmetric Drag Knife Blade For Kpcs Digital Cutters G42461996

Asymmetric tungsten carbide drag blade

Compatible with Esko Kongsberg cutting systems

Ø8 mm round shank (Weldon mounting)

60° cutting angle for packaging and plastic materials

Maximum cutting depth 6.5 mm

Suitable for cardboard, plastic and gasket materials

Request A Quote

Description
Related Products

Kongsberg BLD-DR8260A Asymmetric Drag Knife Blade

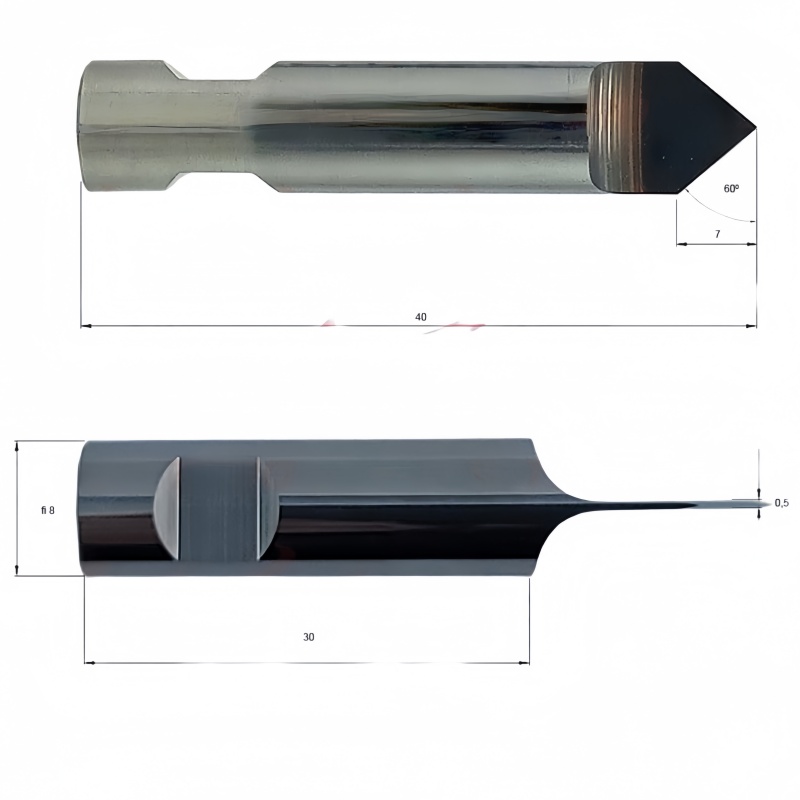

Technical Specifications

Specification	Details
Model	BLD-DR8260A
Reference	G42461996
Compatible System	Esko Kongsberg
Blade Type	Asymmetric Drag Blade
Knife Height	40 mm
Mounting	Round Ø8 mm
Angle	60°
Max Cutting Depth	6.5 mm
Material	Tungsten Carbide
Replacement	Yes

Product Description

The BLD-DR8260A asymmetric drag knife blade (G42461996) is designed for precise cutting on Esko Kongsberg digital cutting systems.

This tungsten carbide drag blade features a Ø8 mm round shank with Weldon mounting and a 60° cutting angle, delivering excellent cutting performance for medium-density packaging and plastic materials.

With a maximum cutting depth of 6.5 mm and 40 mm blade height, the blade is suitable for cutting cardboard, corrugated cardboard, folding carton, plastic sheets, PVC materials and gasket materials used in packaging, signage and industrial production.

The BLD-DR8260A blade provides clean cutting edges, stable performance and long service life for professional digital cutting applications.
