Esko Kongsberg Bld-Sr8173a Carbide Asymmetric Drag Knife Blade For Kpcs Digital Cutters G42460949

Asymmetric tungsten carbide drag blade

Compatible with Esko Kongsberg cutting systems

Ø8 mm round shank (Weldon mounting)

40° cutting angle for precision cutting

Maximum cutting depth 4.5 mm

Ideal for packaging and signage materials

Request A Quote

Description
Related Products

Kongsberg BLD-SR8173A Asymmetric Drag Knife Blade

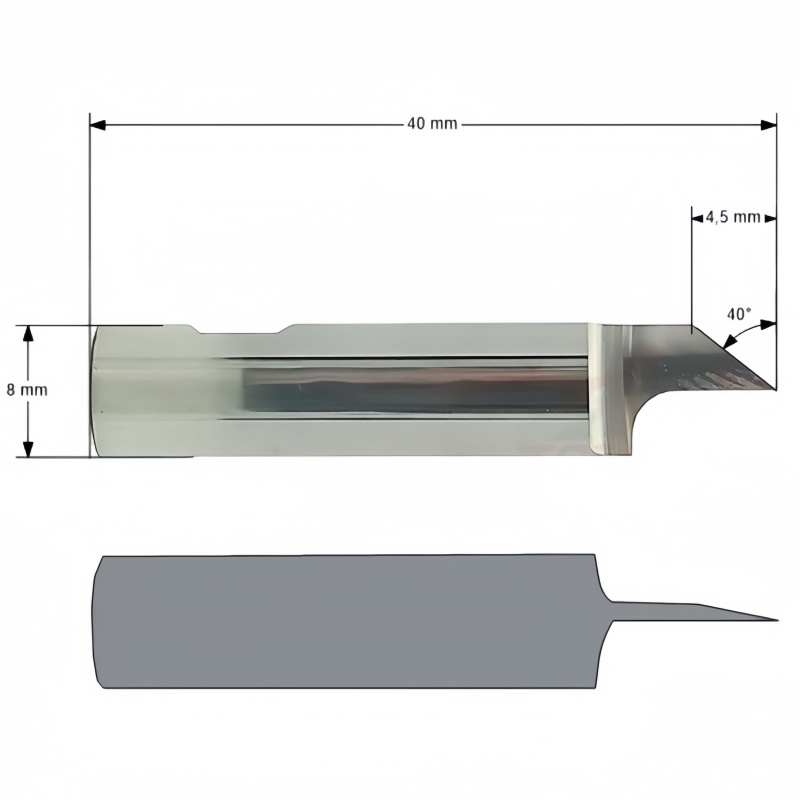

Technical Specifications

Specification	Details
Model	BLD-SR8173A
Reference	G42460949
Compatible System	Esko Kongsberg
Blade Type	Asymmetric Drag Blade
Knife Height	40 mm
Diameter	8 mm
Mounting	Round Ø8 mm
Angle	40°
Max Cutting Depth	4.5 mm
Material	Tungsten Carbide
Replacement	Yes

Product Description

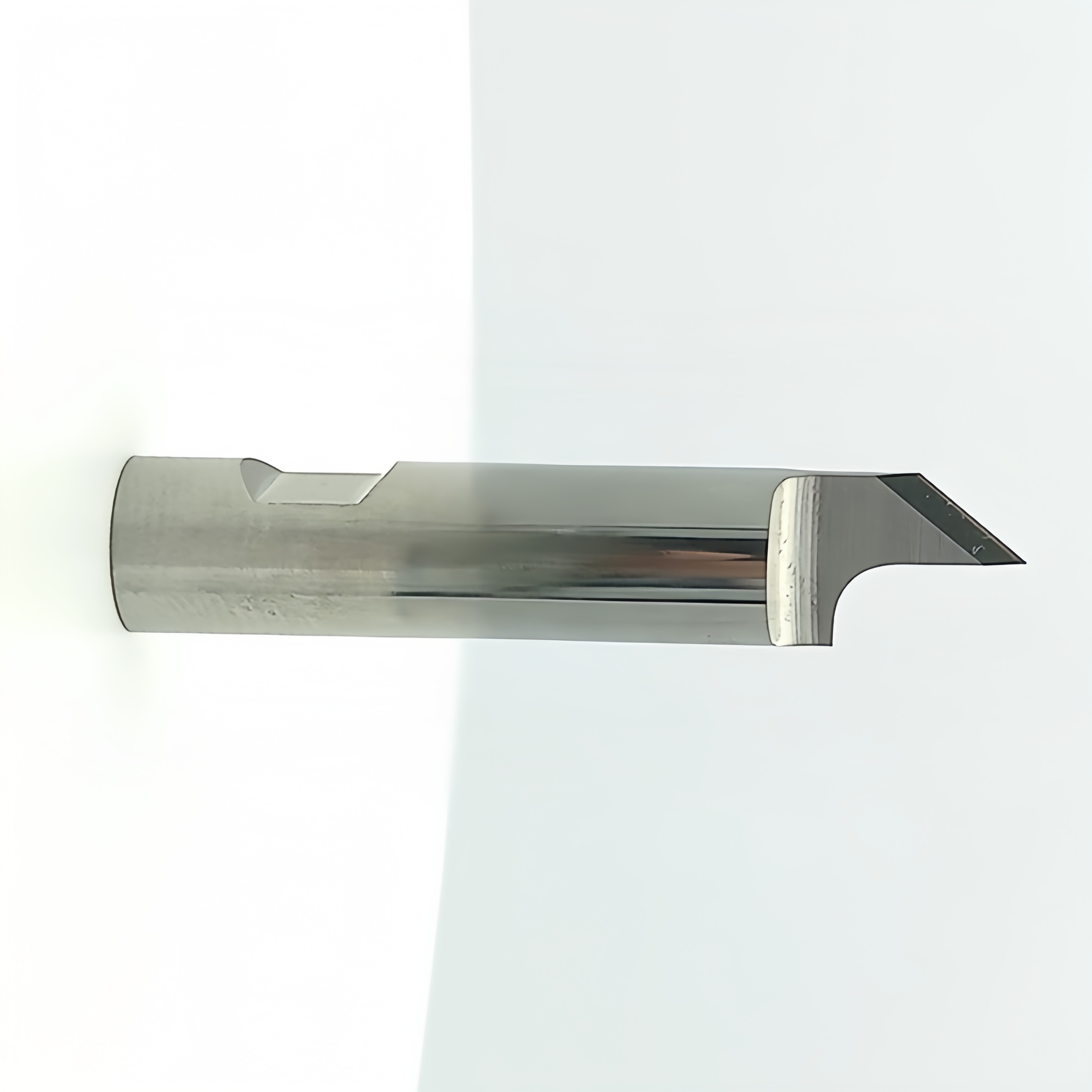

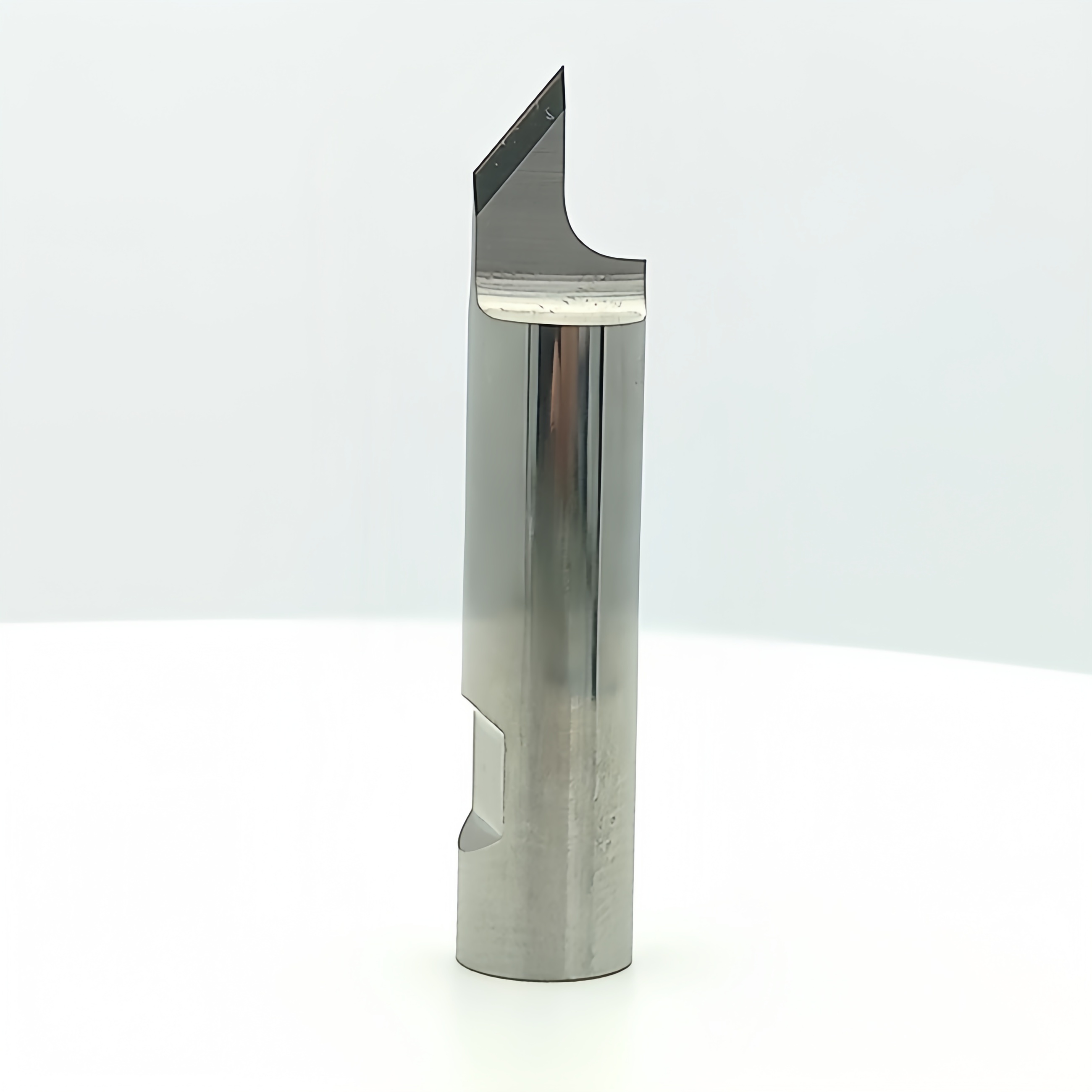

The BLD-SR8173A asymmetric drag knife blade (G42460949) is designed for precise cutting on Esko Kongsberg digital cutting systems.

This tungsten carbide drag blade features a Ø8 mm round shank with Weldon mounting and a 40° cutting angle, providing accurate contour cutting for thin and medium-density materials.

With a maximum cutting depth of 4.5 mm and a 40 mm blade height, the blade is suitable for cutting folding carton, plastic sheets and vinyl materials widely used in packaging, printing and signage production.

The BLD-SR8173A blade offers clean cutting edges, high stability and long service life in professional digital cutting applications.
